AIS DiVi Installation Instructions (P-DVINSTRUCT01)

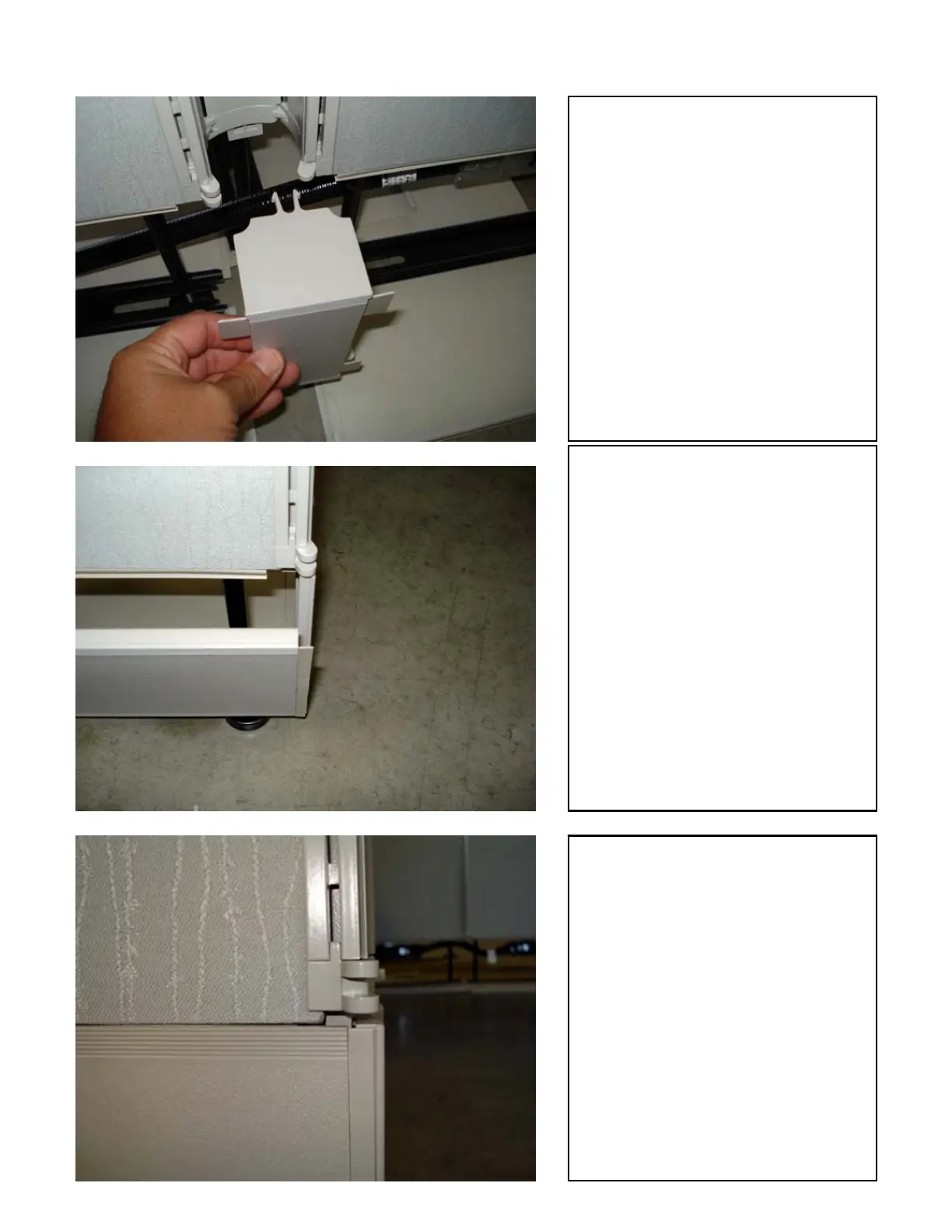

Snap nubs on bottom of the 3-
way shroud into key slots on
bottom of the MIDDLE
raceway assembly. Snap top
prongs into the holes on
underside of the middle
alignment plate.
To properly close base covers,
raceway assembly must be
centered laterally on panel.
Align seam between mud flap
and hard plastic of base cover
with the RIGHT EDGE of
hanger frame slot.
With base cover centered on
panel, insert lip on base cover
into groove on underside of
panel and firmly push to close
base cover.
IMPORTANT – MAKE SURE
BASES COVERS ARE
PROPERLY CENTERED ON
PANEL AS SHOWN.
To Next Page
