AIS DiVi Installation Instructions (P-DVINSTRUCT01)

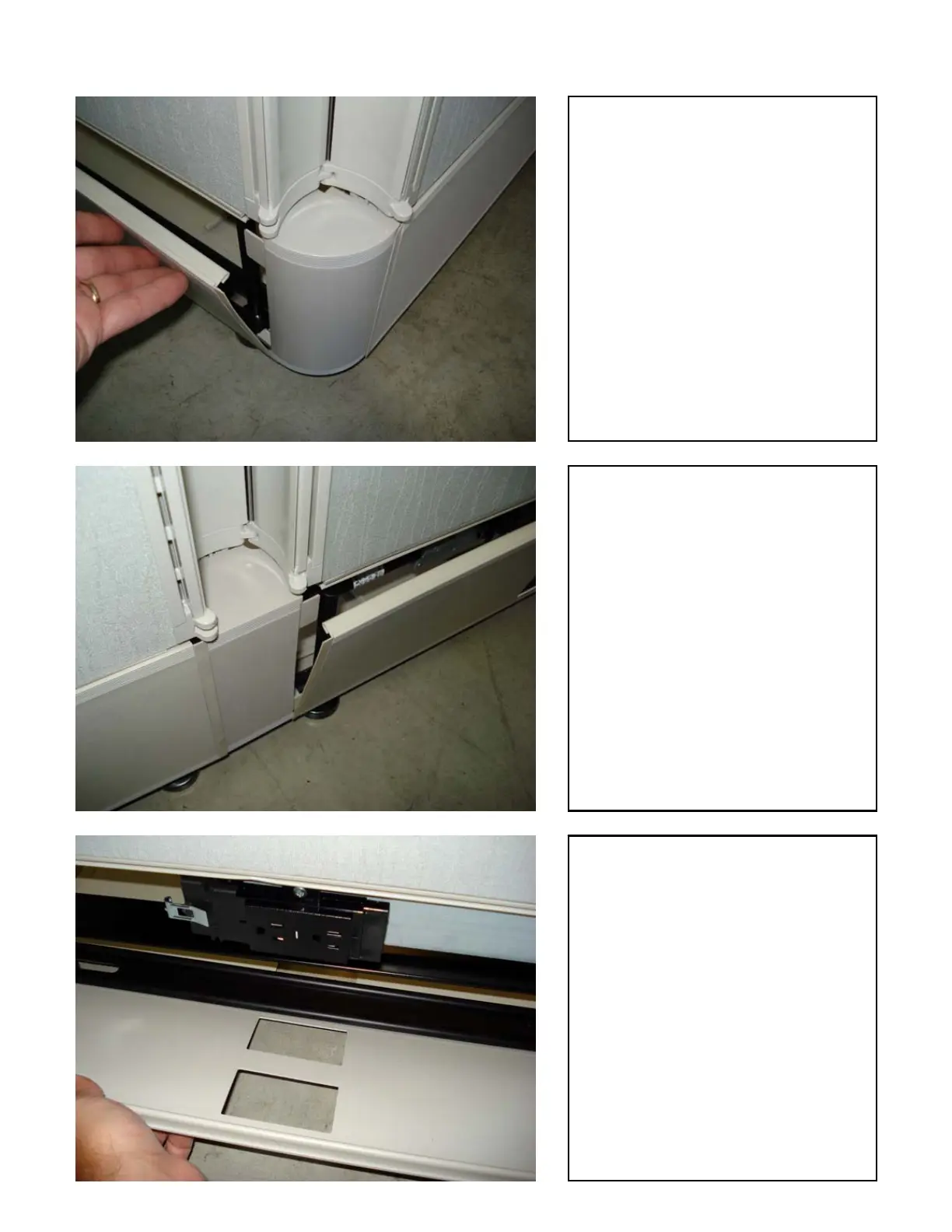

Mud flaps of base covers
when are closed must overlap
90 degree shroud.
IMPORTANT – MAKE SURE
BASES COVERS ARE
PROPERLY CENTERED ON
PANEL AS SHOWN.
SHROUD SITS INSIDE
RACEWAY COVERS.
Mud flaps of base covers
overlap 3-Way shroud.
IMPORTANT – MAKE SURE
BASES COVERS ARE
PROPERLY CENTERED ON
PANEL AS SHOWN.
SHROUD SITS INSIDE
RACEWAY COVERS.
Base covers for powered
panels have 2 sets of holes.
Top holes are for electrical,
bottom holes are for data jack
housings.
