Revised 02.19.10 www.AIS-INC.com 36
AIS DiVi Installation Instructions (P-DVINSTRUCT01)

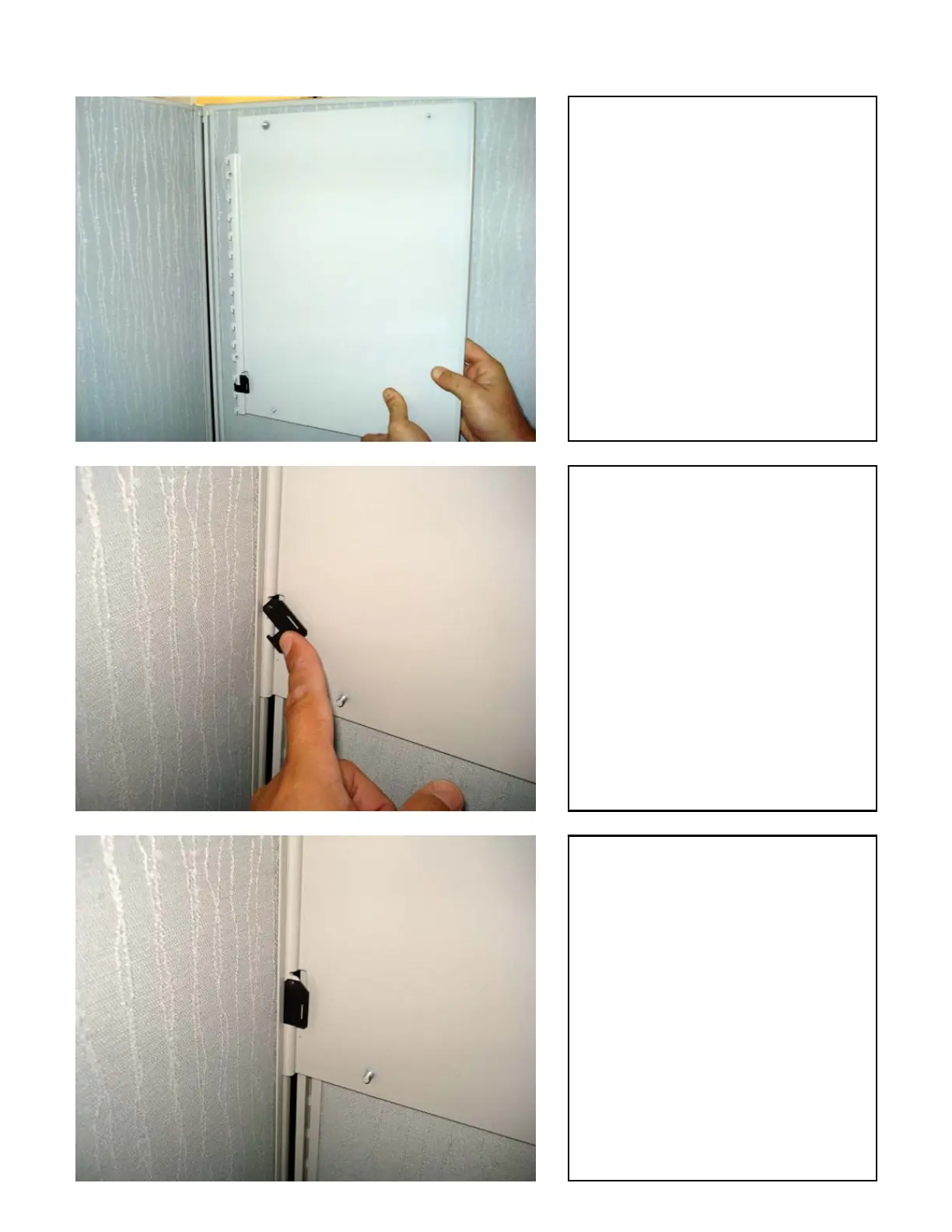

Insert right hand shelf end into
right hand hanger frame
slightly below the level of a
panel topcap.
Insert shelf end into frame and
down until firmly seated on
hanger frame. Anti-dislodge
Cam should rotate back as
shelf end is inserted.
Once end is firmly seated on
frame, rotate cam into hanger
frame so back edge of cam is
parallel to panel face.
To remove shelf end, rotate
cam back out and lift end.
Repeat this procedure for left
ends and Mid Height Shelf
Ends.
