AIS DiVi Installation Instructions (P-DVINSTRUCT01)

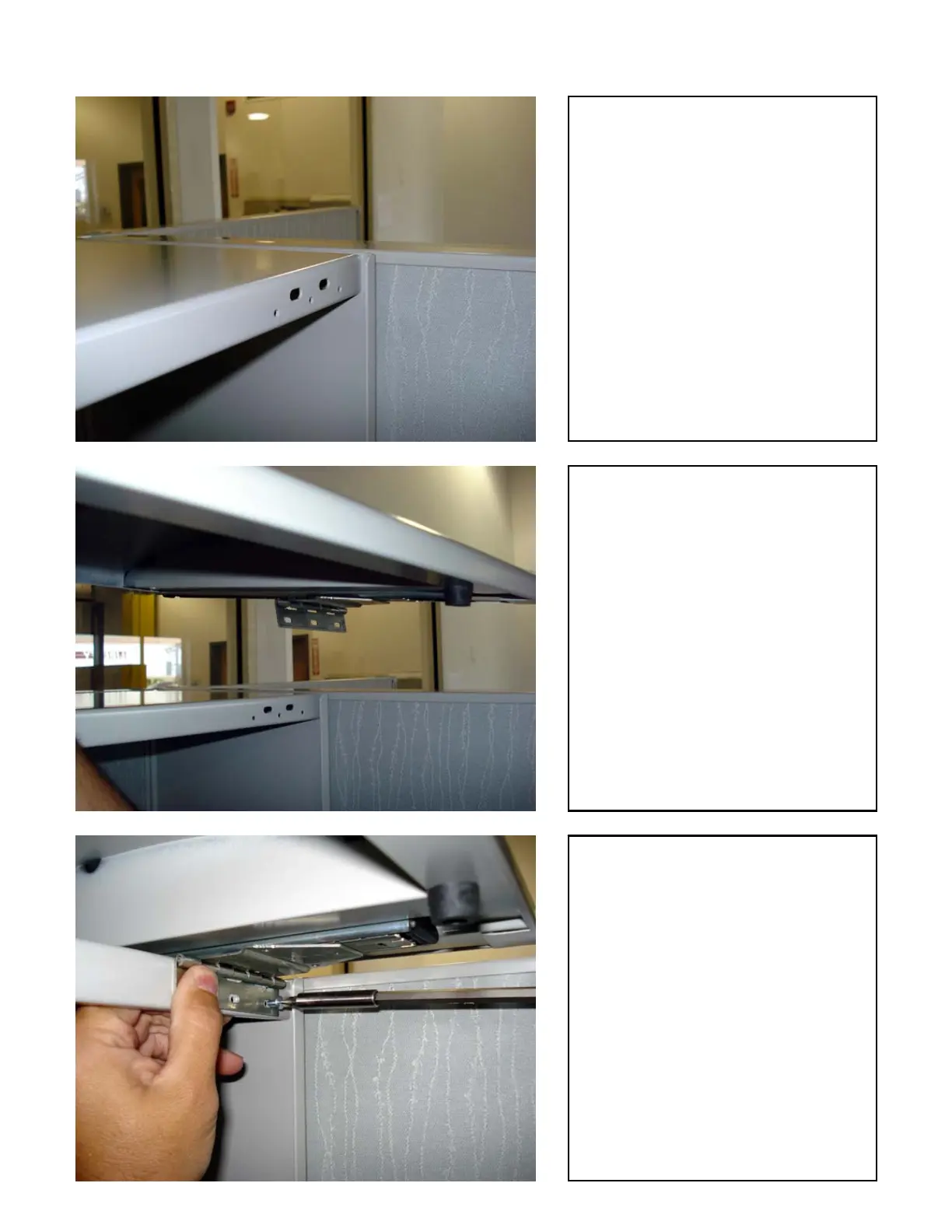

Install top shelf pan in the
same way, with the hole
pattern for mounting a flipper
door at the front as shown.
NOTE - Top shelf and bottom
shelf ARE THE SAME PART
mounted in opposite
directions.
Rest flipper door face
assembly on top shelf with
gear track hinges oriented as
shown.
Align holes on gear track
hinges with holes on front of
shelf pan and attach with
screws provided labeled
“Flipper Doors”.
