AIS Divi - Page 5

Revised 02.19.10 www.AIS-INC.com 5
AIS DiVi Installation Instructions (P-DVINSTRUCT01)

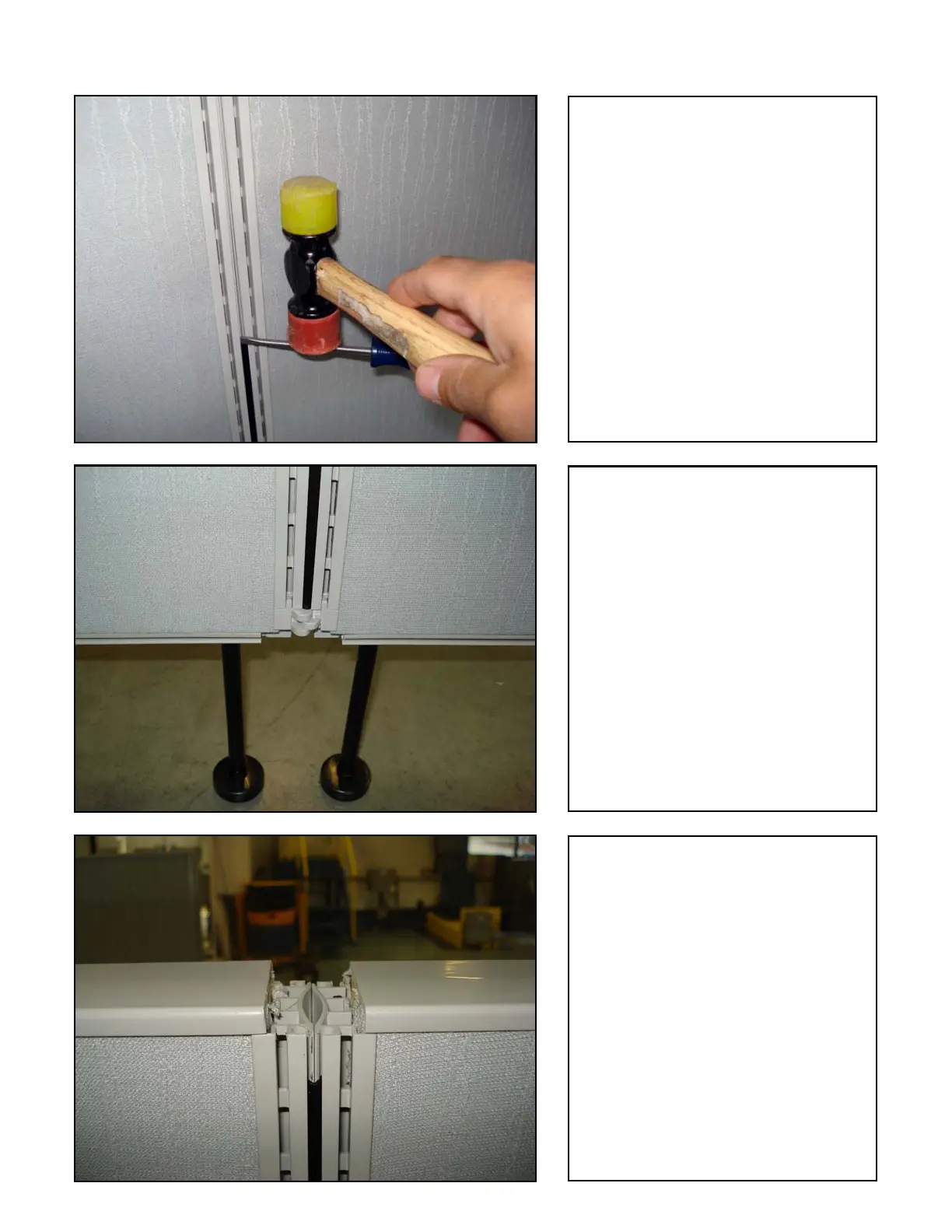

In certain situations on tall
panels it may be necessary to
tap first hinge down to bottom
before tapping down second
hinge. Use flat head
screwdriver inserted at angle
into hinge channel and tap
shaft of screwdriver gently to
slide hinge down to bottom of
panel.
IMPORTANT – Hinges MUST
be fully engaged and seated
directly on top of alignment
plate at base of panel. No
gaps can exist between plate
and hinge.
IMPORTANT – Hinge must be
recessed between ½ and ¼
inches from top of side rail to
leave space for hanger frame
topcap. If PANEL
CONNECTION is a 180
degree, straight line condition,
insert another complete set of
hinges on opposite side of
panels.
