AIS Divi - Connecting Panels at Various Angles

Revised 02.19.10 www.AIS-INC.com 6
AIS DiVi Installation Instructions (P-DVINSTRUCT01)

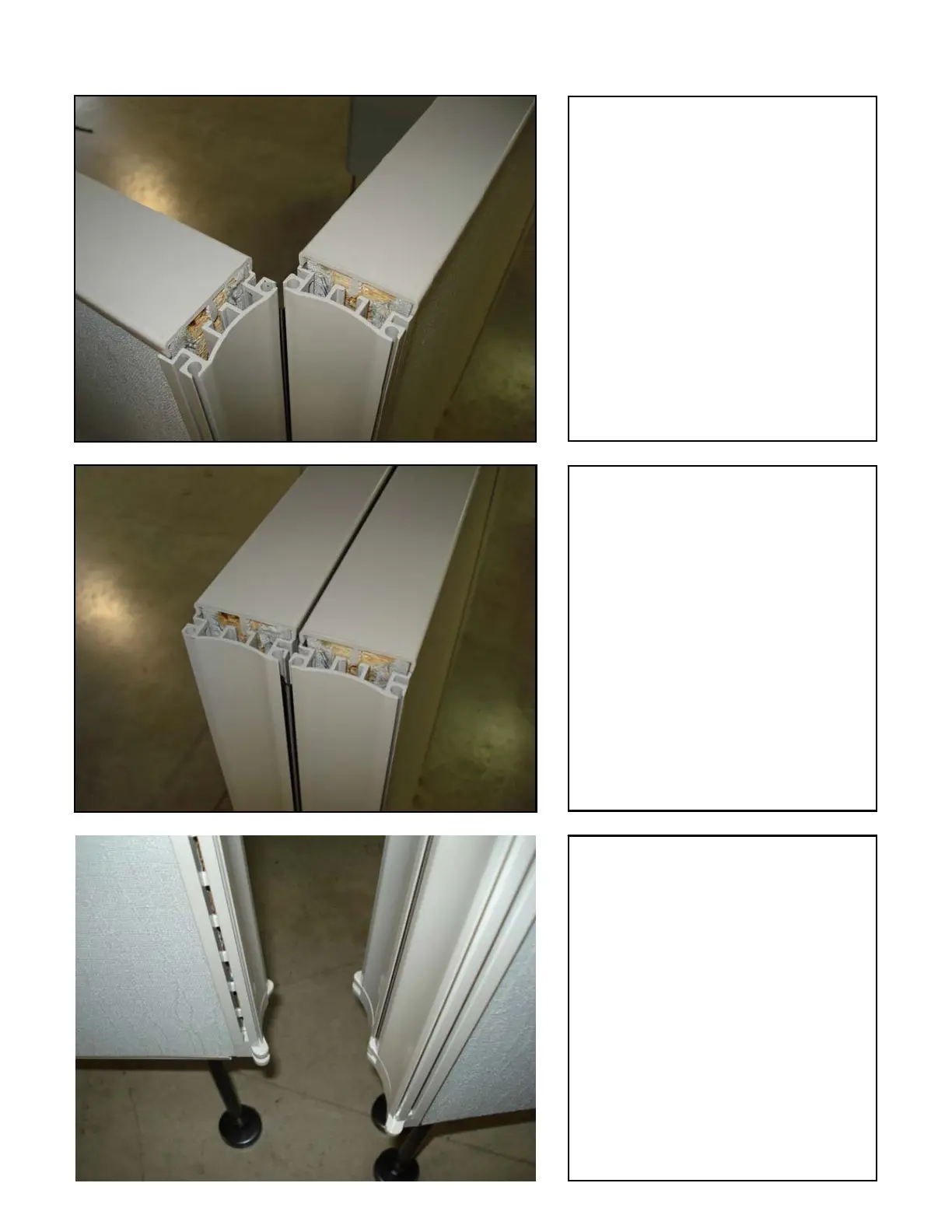

If connection condition is 45,
60 or 90 degrees, rotate panel
appropriately into position.
If creating a 3-way, install
hinge when panels are at 180
deg and then swing one panel
next to the other as shown.
Interlock alignment tabs of
third panel with tabs of second
panel.
