AIS DiVi Installation Instructions (P-DVINSTRUCT01)

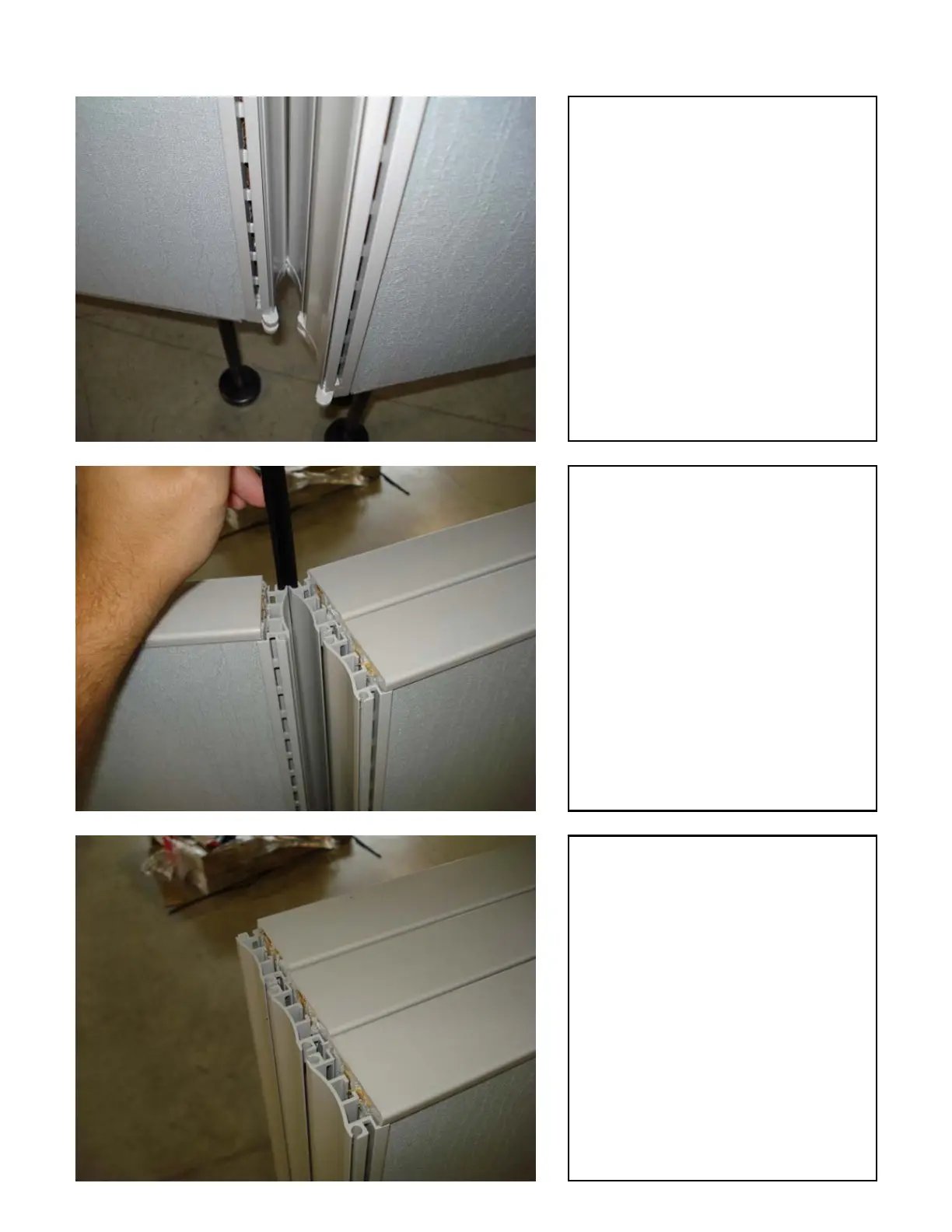

Interlock third panel to second
panel
Slide first the 20 7/8 inch long
hinge down into hinge
channels and then the second
hinge size based on panel
height (see table page 2).
If creating a 3-way, 90 degree,
swing panels into poition. If
creating a 4-way, Swing third
panel next to the other two as
shown.
