2. Connect the power adapter to POWER port on the router, then plug it into an outlet

and push ON/OFF button.

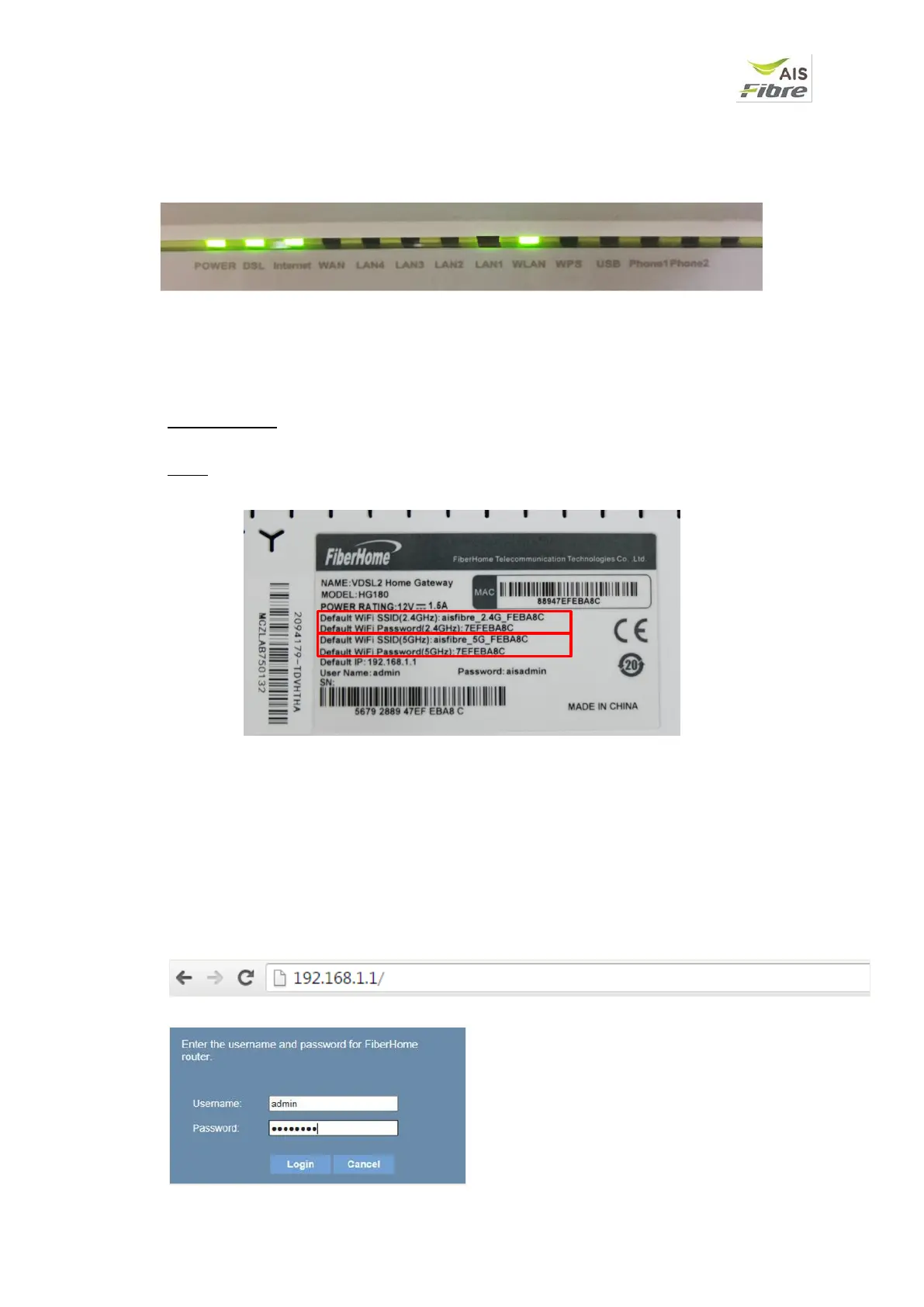

3. Wait until POWER, DSL, Internet, WLAN, LED turns solid green as picture.

Connecting Internet

You can use an Ethernet cable or connect wirelessly.

1. Ethernet cable by connecting Ethernet cable (LAN cable) between computer and LAN

port 1-3 (red slots on back of router)

2. WiFi Look for the default wireless network name (SSID), and select it. The default Wi-Fi

network name (SSID) is located on the product label on the bottom of the router.

*VDSL Router HG180 is dual-band router which operate WiFi in 2 frequencies. 2.4 GHz is a

frequency interval which normally users are using. A mainly advantage of 2.4 GHz is support

all wireless equipment and have large coverage signal but also has many disadvantages that

are the less number of channels, the large of the opportunity to overlap signal.

5 GHz is a frequency interval which recently activated. A mainly advantage of 5 GHz is a number

of channels that is larger than 2.4 GHz so the opportunity to overlap signal will be decreased

but the coverage length is less.

Wireless Network Name Setting

1. Launch a web browser from a computer or wireless device that is connected to the

router. Then type 192.168.1.1 and Enter

2. Fill username : admin and password : aisadmin then click Login
