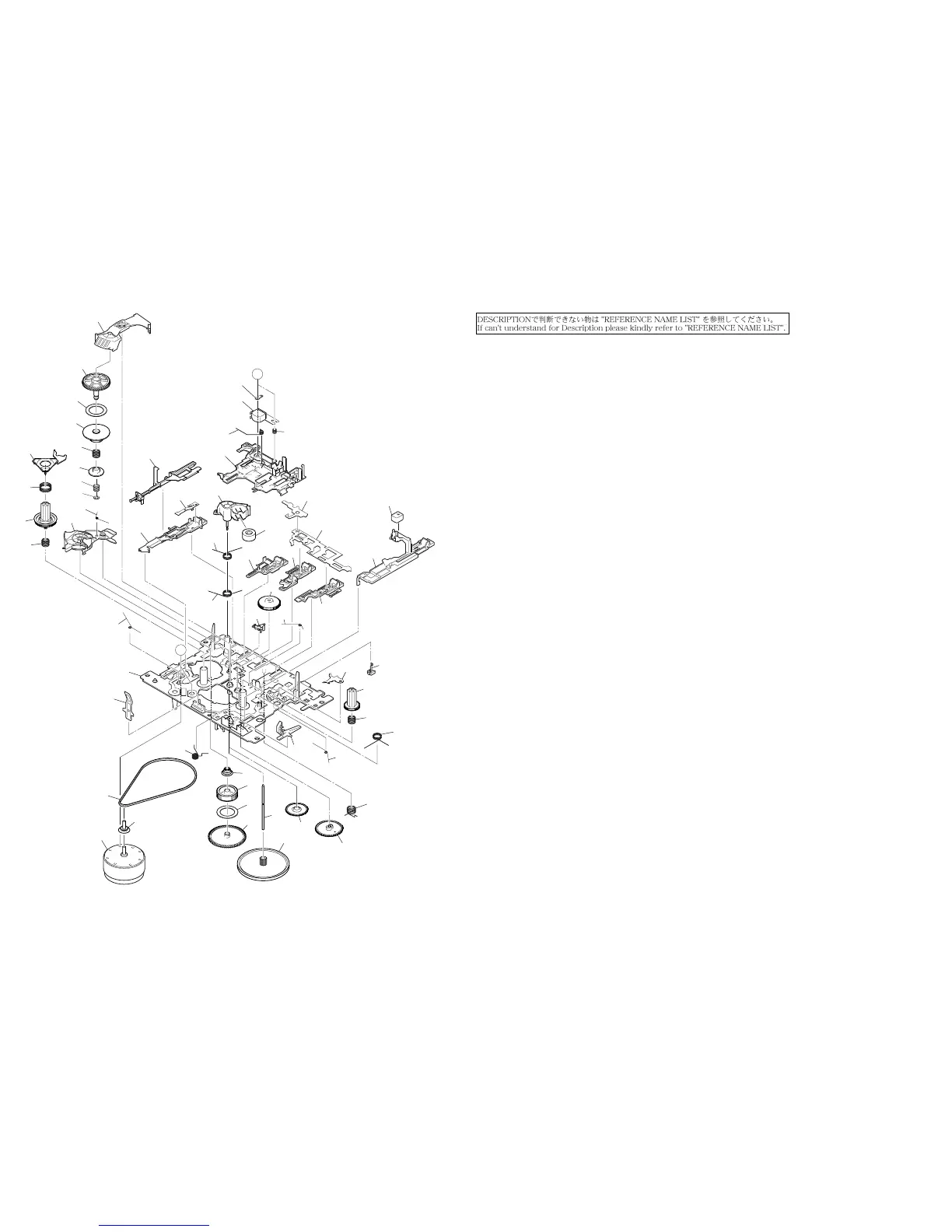

TAPE MECHANISM EXPLODED VIEW 1/1
A
1
52
TERMINAL,LB1
B
2
3
4
5
6
7
8
9
11
12
13
14
16
17
19
20
21
22
24
23
26
27
18
28
25
29
54
LEVER,E OPEN
30
31
32
1
34
35
36
38
39
40
41
42
43
44
45
46
49
48
50
53
15
37
33
10
47
51
55
56
REF. NO PART NO. KANRI DESCRIPTION
NO.
TAPE MECHANISM PARTS LIST 1/1
1 8Z-ZM1-254-210 SPR-C,REEL R
2 8Z-ZM1-225-110 GEAR,REEL R
3 8Z-ZM1-253-110 SPR-C,AUTO SENSOR
4 8Z-ZM1-217-110 LEVER,AUTO SENSOR
5 8Z-ZM1-212-110 LEVER,T-UP
6 8Z-ZM1-245-010 SPR-T,AUTO
7 8Z-ZM1-236-010 CLR,SLIP FF/REW
8 8Z-ZM1-252-010 SPR-C,FF/REW
9 8Z-ZM1-230-010 GEAR,SLIP FF/REW A
10 8Z-ZM1-266-010 FELT,FF/REW
11 8Z-ZM1-231-010 GEAR,SLIP FF/REW B
12 8Z-ZM1-213-010 LEVER,FF/REW
13 8Z-ZM1-209-110 LEVER,PAUSE
14 8Z-ZM1-222-010 LEVER,E-LOCK M
15 8Z-ZM1-256-010 SPR-P,PAUSE
16 8Z-ZM1-244-010 SPR-T,T-UP
17 8Z-ZM1-247-210 SPR-T,PINCH
18 8Z-ZM1-261-110 ROLLER ASSY,PINCH
19 8Z-ZM1-221-010 LEVER,PINCH
20 8Z-ZM1-205-210 LEVER,PLAY
21 8Z-ZM1-248-010 SPR-T,BRG
22 87-A90-403-110 HEAD,RPH MS15R
23 84-ZM2-227-310 SPR-C,AZIMUTH
24 8Z-ZM1-216-010 LEVER,AUTO
25 8Z-ZM1-246-010 SPR-T,AUTO 2
26 8Z-ZM1-233-010 GEAR,IDL REW
27 8Z-ZM1-208-010 LEVER,STOP
28 8Z-ZM1-207-010 LEVER,FF
29 8Z-ZM1-206-010 LEVER,REW
30 8Z-ZM1-211-110 LEVER,REC 2
31 87-A91-533-010 HEAD,EH PH-K380
32 8Z-ZM1-215-010 LEVER,REC LOCK
33 87-A91-492-010 SW,LEAF MSW18560
34 8Z-ZM1-226-010 GEAR,REEL L
35 8Z-ZM1-241-010 SPR-T,PLAY
36 8Z-ZM1-220-010 LEVER,REC SENSOR
37 8Z-ZM1-249-010 SPR-T,FR
38 8Z-ZM1-242-110 SPR-T,FF/REW
39 8Z-ZM1-229-010 GEAR,CAM
40 8Z-ZM1-232-010 GEAR,IDL FF/REW
41 8Z-ZM1-234-010 FLY-WHL,ZZM-1
42 8Z-ZM1-267-010 SHAFT,CAPSTAN 2
43 8Z-ZM1-228-010 GEAR,SLIP T-UP B
44 8Z-ZM1-265-010 FELT,T-UP
45 8Z-ZM1-227-010 GEAR,SLIP T-UP A
46 8Z-ZM1-251-110 SPR-C,T-UP SLIP
47 8Z-ZM1-243-210 SPR-T,STOP/PAUSE
48 87-A91-531-010 MOT,MS15C2L
49 8Z-ZM1-271-010 PULLEY,MOT ZZM-1
50 8Z-ZM1-264-010 BELT,MAIN S
51 8Z-ZM1-260-010 SPR-P,CASETTE
52 8Z-ZM1-201-310 CHAS ASSY,ZZM-1
53 8Z-ZM1-255-110 SPR-T,E-LOCK
54 8Z-ZM1-214-010 LEVER,LOCK
55 8Z-ZM1-257-110 SPR-C,F/R
56 8Z-ZM1-275-010 W-L,1.47-4-0.25
A 84-ZM2-242-010 S-SCREW,AZ1-2-6.4
B 8Z-ZM1-270-110 V+2.6 ZZM-1
REF. NO PART NO. KANRI DESCRIPTION
NO.
