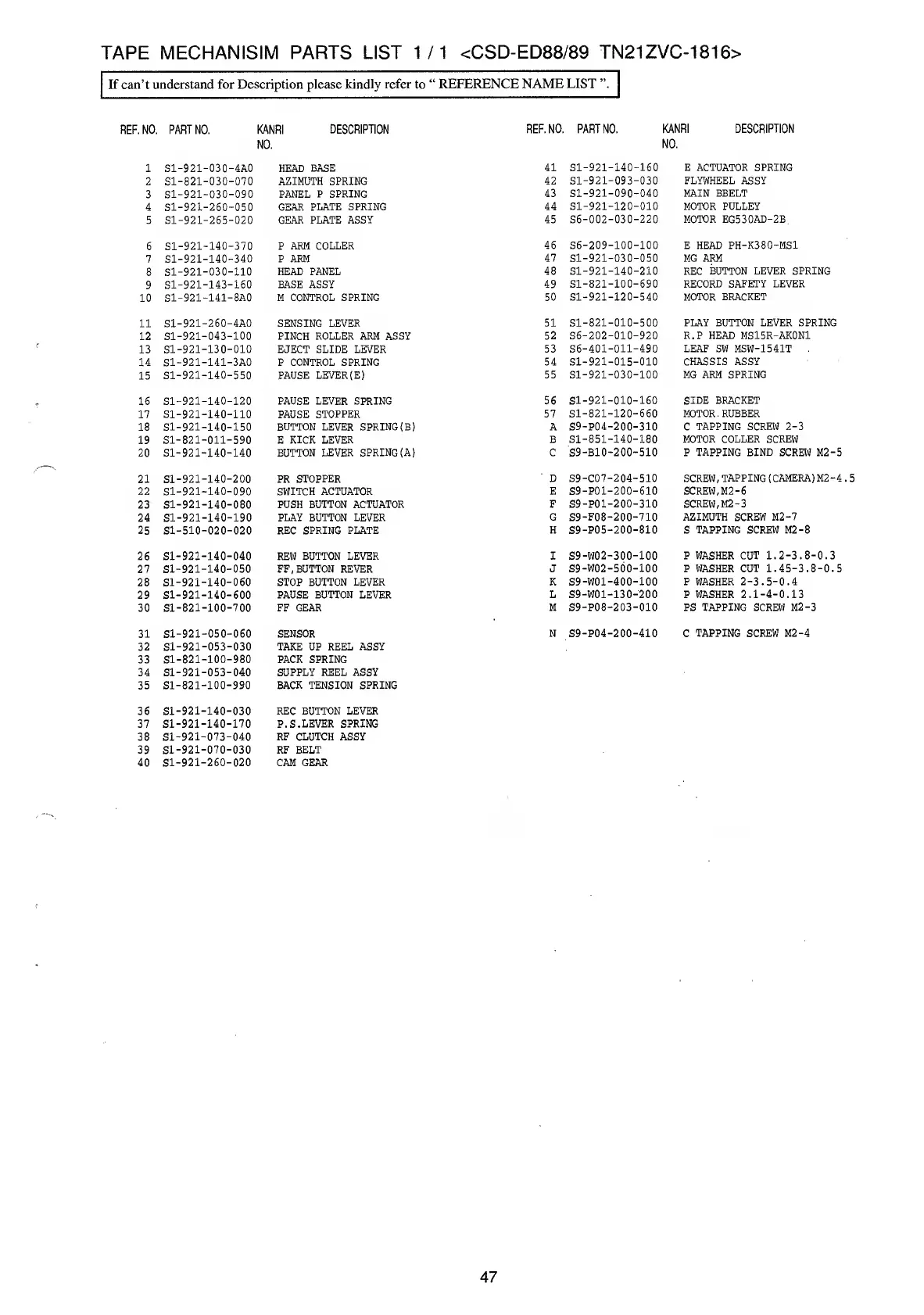

TAPE MECHANISIM PARTS LIST 1/1 <CSD-ED88/89 TN21ZVC-1816>
If can’t understand for Description please kindly refer to “ REFERENCE NAME LIST
^ NO. PART NO.
KANRI DESCRIPTION
REF. NO.
PART NO.
KANRI DESCRIPTION
NO.
NO.
1 S1-921-030-4A0 HEAD BASE
41 Sl-921-140-160 E ACTUATOR SPRING
2 Sl-821-030-070
AZIMUTH SPRING
42 Sl-921-093-030
FLYWHEEL ASSY
3
Sl-921-030-090 PANEL P SPRING
43 Sl-921-090-040 MAIN BBELT
4
Sl-921-260-050
GEAR PLATE SPRING 44
Sl-921-120-010 MOTOR PULLEY
5 Sl-921-265-020
GEAR PLATE ASSY
45 S6-002-030-220
MOTOR EG530AD-2B,
6 Sl-921-140-370
P ARM COLLER
46 S6-209-100-100 E HEAD PH-K380-MS1
7
Sl-921-140-340 P ARM
47
Sl-921-030-050
MG ARM
8
Sl-921-030-110
HEAD PANEL
48 Sl-921-140-210 REC BUTTON LEVER SPRING
9
Sl-921-143-160
BASE ASSY 49
Sl-821-100-690
RECORD SAFETY LEVER
10
S1-921-141-8A0
M CONTROL SPRING
50 Sl-921-120-540
MOTOR BRACKET
11
S1-921-260-4A0 SENSING LEVER
51 Sl-821-010-500
PLAY BUTTON LEVER SPRING
12 Sl-921-043-100
PINCH ROLLER ARM ASSY
52 S6-202-010-920
R.P HEAD MS15R-AK0N1
13
Sl-921-130-010 EJECT SLIDE LEVER
53 S6-401-011-490
LEAF SW MSW-I54IT
14 S1-921-141-3A0 P CONTROL SPRING
54 Sl-921-015-010
CHASSIS ASSY
15 Sl-921-140-550
PAUSE LEVER(E)
55 Sl-921-030-100
MG ARM SPRING
16 Sl-921-140-120
PAUSE LEVER SPRING
56 Sl-921-010-160
SIDE BRACKET
17 Sl-921-140-110
PAUSE STOPPER
57 Sl-821-120-660 MOTOR.RUBBER
18 Sl-921-140-150
BUTTON LEVER SPRING(B)
A S9-P04-200-310 C TAPPING SCREW 2-3
19 Sl-821-011-590
E KICK LEVER
B Sl-851-140-180 MOTOR COLLER SCREW
20
Sl-921-140-140 BUTTON LEVER SPRING(A)
C
S9-B10-200-510 P TAPPING BIND SCREW M2-!
21 Sl-921-140-200
PR STOPPER
D S9-C07-204-510
SCREW, TAPPING {CAMERA) M2
22
Sl-921-140-090
SWITCH ACTUATOR
E S9-P01-200-610 SCREW,M2-6
23
31-921-140-080
PUSH BUTTON ACTUATOR
F S9-P01-200-310 SCREW,M2-3
24 Sl-921-140-190
PLAY BUTTON LEVER
G S9-F08-200-710
AZIMUTH SCREW M2-7
25
Sl-510-020-020
REC SPRING PLATE
H
S9-P05-200-810 S TAPPING SCREW M2-8
26
Sl-921-140-040 REW BUTTON LEVER
I S9-W02-300-100 P WASHER CUT I.2-3.8-0.3
27 Sl-921-140-050 FF,BUTTON REVER
J
S9-W02-5d0-100
P WASHER CUT 1.45-3.8-0.1
28 Sl-921-140-060 STOP BUTTON LEVER
K
S9-W01-400-100 P WASHER 2-3.5-0.4
29 Sl-921-140-600
PAUSE BUTTON LEVER
L S9-W01-130-200 P WASHER 2.1-4-0.13
30
Sl-821-100-700
FF GEAR
M S9-P08-203-010 PS TAPPING SCREW M2-3
31
Sl-921-050-060 SENSOR
N S9-P04-200-410 C TAPPING SCREW M2-4
32 Sl-921-053-030 TAKE UP REEL ASSY
33
Sl-821-100-980 PACK SPRING
34 Sl-921-053-040
SUPPLY REEL ASSY
35 Sl-821-100-990 BACK TENSION SPRING
36 Sl-921-140-030
REC BUTTON LEVER
37 Sl-921-140-170
P.S.LEVER SPRING
38 Sl-921-073-040
RF CLUTCH ASSY
39
Sl-921-070-030
RF BELT
40
Sl-921-260-020 CAM GEAR
47
