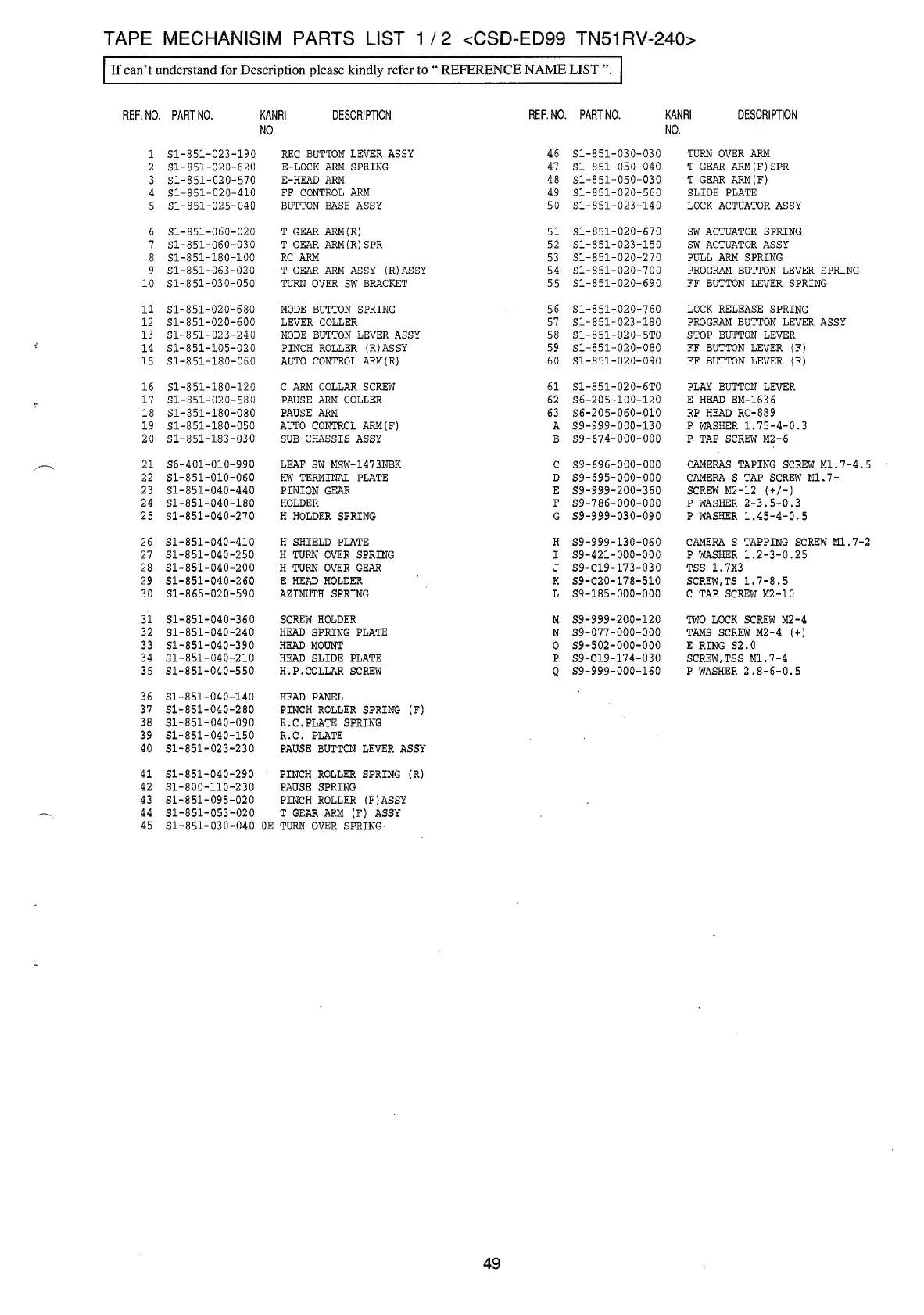

TAPE MECHANiSIM PARTS LIST 1 /2 <CSD-ED99 TN51RV-240>
If can’t understand for Description please kindly refer to “ REFERENCE NAME LIST
^N0. PARING.
KANRI DESCRIPTION
REF. NO.
PARING.
KANRI OESCRIPIION
NO.
NO.
1 Sl-851-023-190 REC BUTTON LEVER ASSY
46 Sl-851-030-030
TURN OVER ARM
2
Sl-851-020-620
E-LOCK ARM SPRING
47
Sl-851-050-040
T GEAR ARM(F)SPR
3 Sl-851-020-570
E-HEAD ARM 48 Sl-851-050-030
T GEAR ARM(F)
4 Sl-851-020-410
FF CONTROL ARM
49 Sl-851-020-560
SLIDE PLATE
5 Sl-851-025-040
BUTTON BASE ASSY 50 Sl-851-023-140 LOCK ACTUATOR ASSY
6 Sl-851-060-020
T GEAR ARM(R)
51 Sl-851-020-670
SW ACTUATOR SPRING
7 Sl-851-060-030 T GEAR ARM(R)SPR 52 Sl-851-023-150 SW ACTUATOR ASSY
8 Sl-851-180-100
RC ARM
53
Sl-851-020-270 PULL ARM SPRING
9 Sl-851-063-020 T GEAR ARM ASSY (R)ASSY
54
Sl-851-020-700
PROGRAM BUTTON LEVER SPRING
10 Sl-851-030-050
TURN OVER SW BRACKET
55
Sl-851-020-690 FF BUTTON LEVER SPRING
11
Sl-851-020-680 MODE BUTTON SPRING
56 Sl-851-020-760 LOCK RELEASE SPRING
12 Sl-851-020-600 LEVER COLLER
57
Sl-851-023-180
PROGRAM BUTTON LEVER ASSY
13 Sl-851-023-240 MODE BUTTON LEVER ASSY 58 S1-851-020-5T0 STOP BUTTON LEVER
14 Sl-851-105-020 PINCH ROLLER (R)ASSY 59 Sl-851-020-080
FF BUTTON LEVER (F)
15 Sl-851-180-060
AUTO CONTROL ARM(R) 60 Sl-851-020-090 FF BUTTON LEVER (R)
16 Sl-851-180-120
C ARM COLLAR SCREW 61 S1-851-020-6T0 PLAY BUTTON LEVER
17 31-851-020-580
PAUSE ARM COLLER 62 S6-205-100-120 E HEAD EM-1636
18 31-851-180-080
PAUSE ARM 63 S6-205-060-010 RP HEAD EC-889
19 31-851-180-050 AUTO CONTROL ARM(F)
A
S9-999-000-130 P WASHER 1.75-4-0.3
20 31-851-183-030 SUB CHASSIS ASSY B S9-674-000-000 P TAP SCREW M2-6
21 36-401-010-990 LEAF SW MSW-1473NBK C S9-696-000-000 CAMERAS TAPING SCREW Ml. 7-4.5
22 31-851-010-060 HW TERMINAL PLATE D
S9-695-000-000
CAMERA S TAP SCREW M1.7-
23 31-851-040-440
PINION GEAR
E
S9-999-200-360 SCREW M2-12 (+/-)
24
31-851-040-180
HOLDER F
S9-786-000-000 P WASHER 2-3.5-0.3
25
31-851-040-270 H HOLDER SPRING G S9-999-030-090
P WASHER 1.45-4-0.5
26 31-851-040-410 H SHIELD PLATE H 39-999-130-060 CAMERA S TAPPING SCREW Ml.7-2
27 31-851-040-250 H TURN OVER SPRING
I
S9-421-000-000 P WASHER 1.2-3-0.25
28 31-851-040-200 H TURN OVER GEAR J S9-C19-173-030 TSS 1.7X3
29
31-851-040-260
E HEAD HOLDER
K S9-C20-178-510 SCREW,TS 1.7-8.5
30 31-865-020-590 AZIMUTH SPRING L S9-185-000-000 C TAP SCREW M2-10
31 31-851-040-360 SCREW HOLDER M S9-999-200-120 TWO LOCK SCREW M2-4
32 31-851-040-240 HEAD SPRING PLATE
N S9-077-000-000 TAMS SCREW M2-4 (+)
33 31-851-040-390 HEAD MOUNT 0 S9-502-000-000 E RING S2.0
34
31-851-040-210
HEAD SLIDE PLATE P
S9-C19-174-030 SCREW,TSS Ml.7-4
35 31-851-040-550 H.P.COLLAR SCREW
Q
S9-999-000-160
P WASHER 2.8-6-0.5
36 31-851-040-140 HEAD PANEL
37
31-851-040-280 PINCH ROLLER SPRING (F)
38
31-851-040-090 R.C.PLATE SPRING
39 31-851-040-150 R.C. PLATE
40 31-851-023-230 PAUSE BUTTON LEVER ASSY
41
31-851-040-290 ■ PINCH ROLLER SPRING (R)
42
31-800-110-230 PAUSE SPRING
43 31-851-095-020 PINCH ROLLER {F)ASSY
44
31-851-053-020 T GEAR ARM (F) ASSY
45 31-851-030-040 OE TURN OVER SPRING-
49
