Aiwa CSD-FD79 Service Manual

-24-

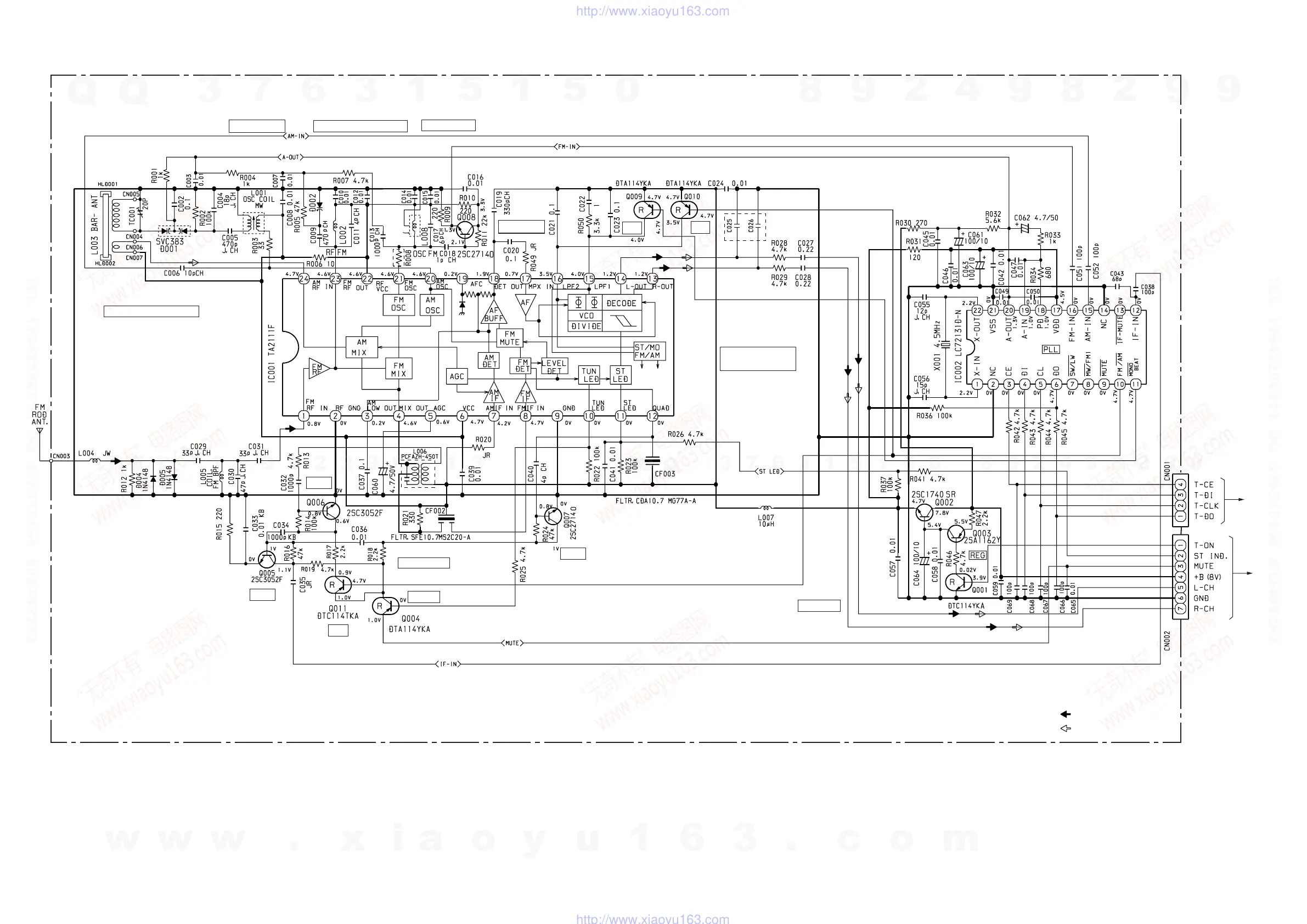

SCHEMATIC DIAGRAM - 4/4 (TUNER)
C:0.015 U:0.022
HVC300A
CONN 4P
CONN 7P
C:10 U:15
SH001
U MODEL
EX
IC001
FM/AM TUNER
SYSTEM
Q001-003
+B REG
TO MAIN C.B CNA102
TO FRONT C.B CNA601
TUNER C.B
SIGNAL
:FM
:AM
L001
AM VT ADJ
L002
FM TRACKING ADJ
L008
FM VT ADJ
L003,TC001
AM TRACKING ADJ
L006
AM IF ADJ
MUTE
BUFFER
SW
SW
AMP
AMP
AMP
SW
