Aiwa CSD-TD20 Service Manual

 3 
REF. NO PART NO. KANRI DESCRIPTION
NO.

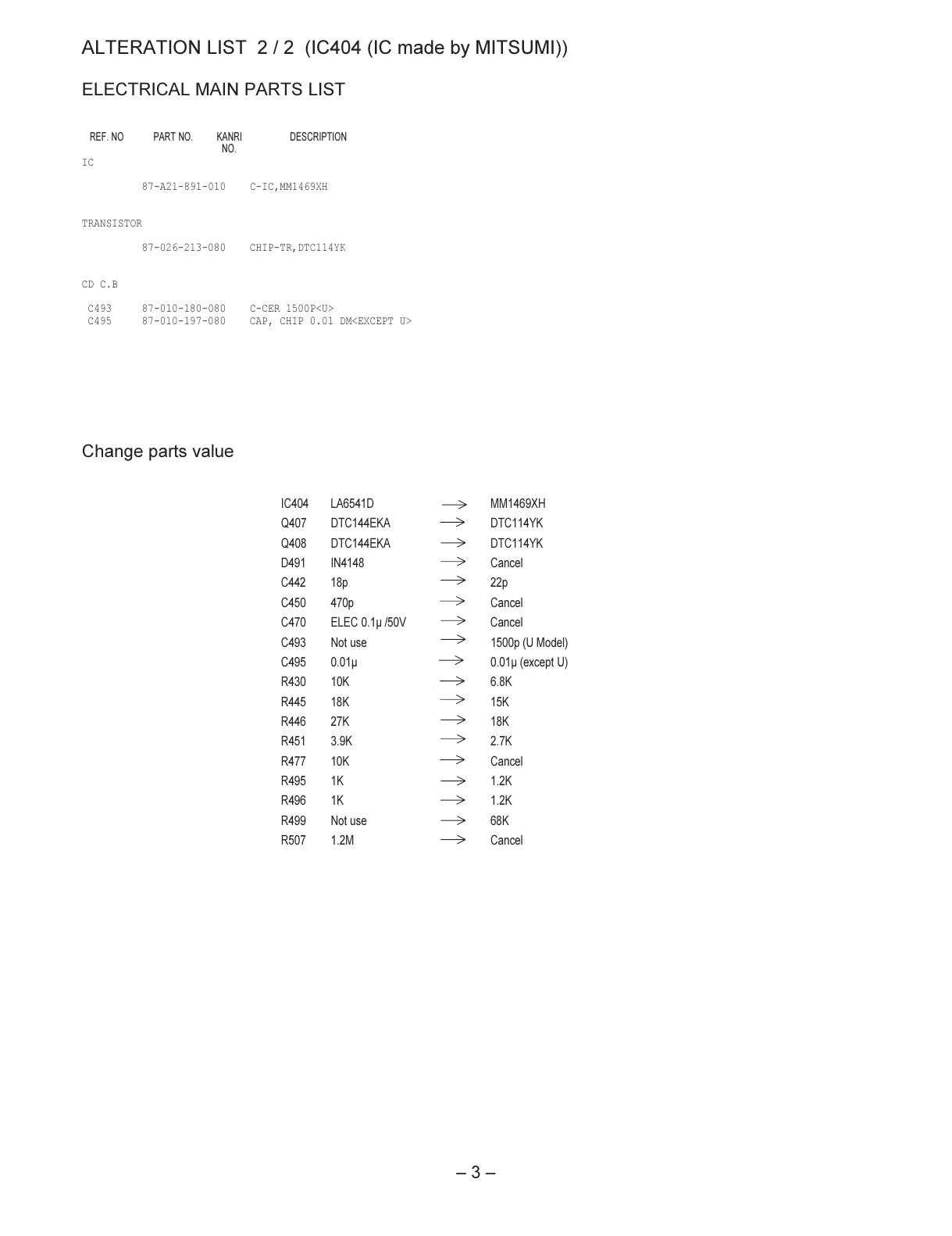

ELECTRICAL MAIN PARTS LIST
ALTERATION LIST 2 / 2 (IC404 (IC made by MITSUMI))
Change parts value
IC
87-A21-891-010 C-IC,MM1469XH
TRANSISTOR
87-026-213-080 CHIP-TR,DTC114YK
CD C.B
C493 87-010-180-080 C-CER 1500P<U>
C495 87-010-197-080 CAP, CHIP 0.01 DM<EXCEPT U>
IC404 LA6541D MM1469XH
Q407 DTC144EKA DTC114YK
Q408 DTC144EKA DTC114YK
D491 IN4148 Cancel
C442 18p 22p
C450 470p Cancel
C470 ELEC 0.1µ/50V Cancel
C493 Not use 1500p (U Model)
C495 0.01µ 0.01µ(except U)
R430 10K 6.8K
R445 18K 15K
R446 27K 18K
R451 3.9K 2.7K
R477 10K Cancel
R495 1K 1.2K
R496 1K 1.2K
R499 Not use 68K
R507 1.2M Cancel
