25
CX-VX5

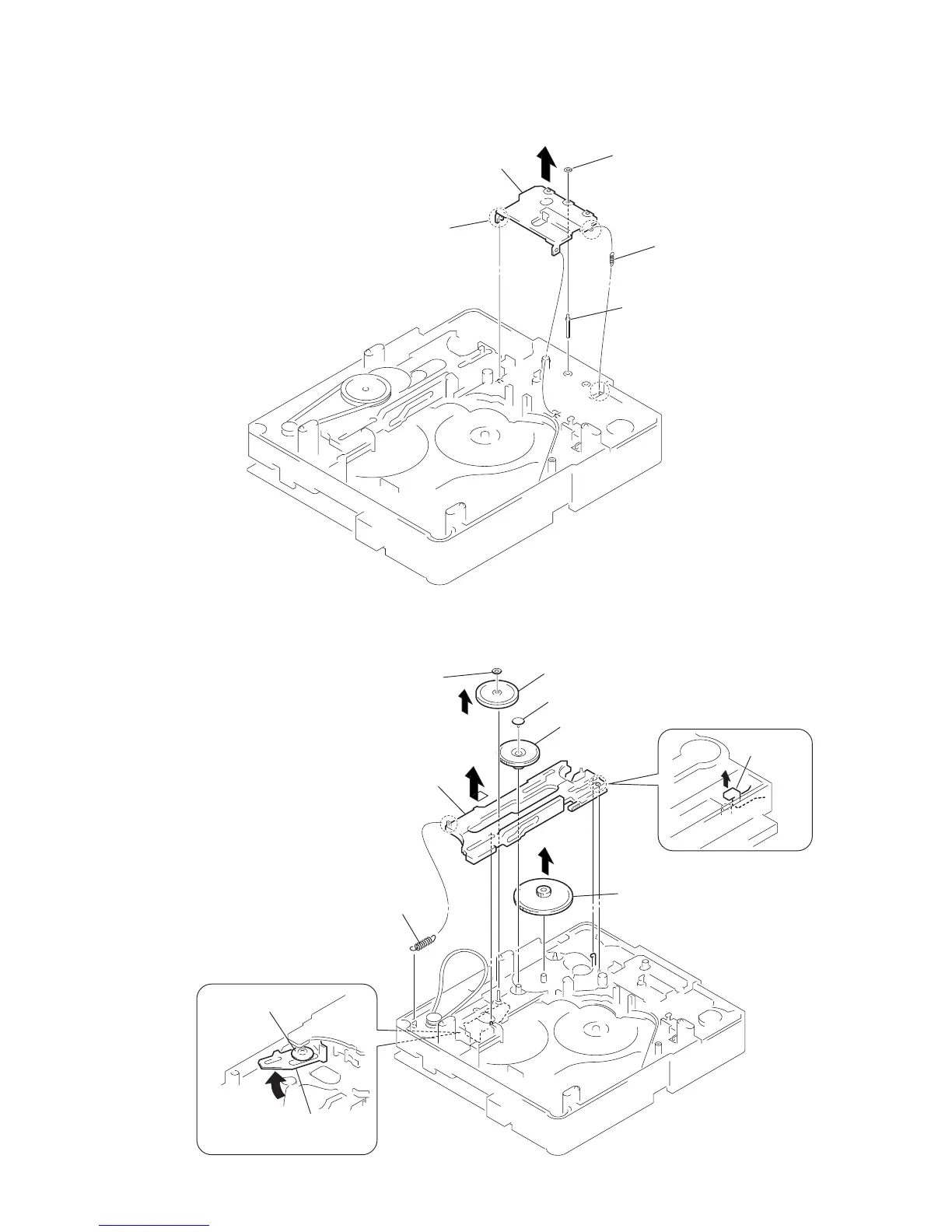

3-21. LEVER (DIR), GEAR (IDL-B)
3-20. CLOSE LEVER
1 washer (3-1-0.4)
2 spr-E (close lever)
4 shaft (disc stop)
5 close lever
3 claw
3 pulley (gear)
2 retaining ring
9 lever (DIR)
5 gear (IDL-A)
q; gear (IDL-B)
1 spr-E (DIR)
8 stopper
6 Loosen the screw.
7 Hold the release lever
and change the direction.
4 gear (cap)
