Aiwa RM-77 - Mechanical Parts List; Color Name Table

– 7 –

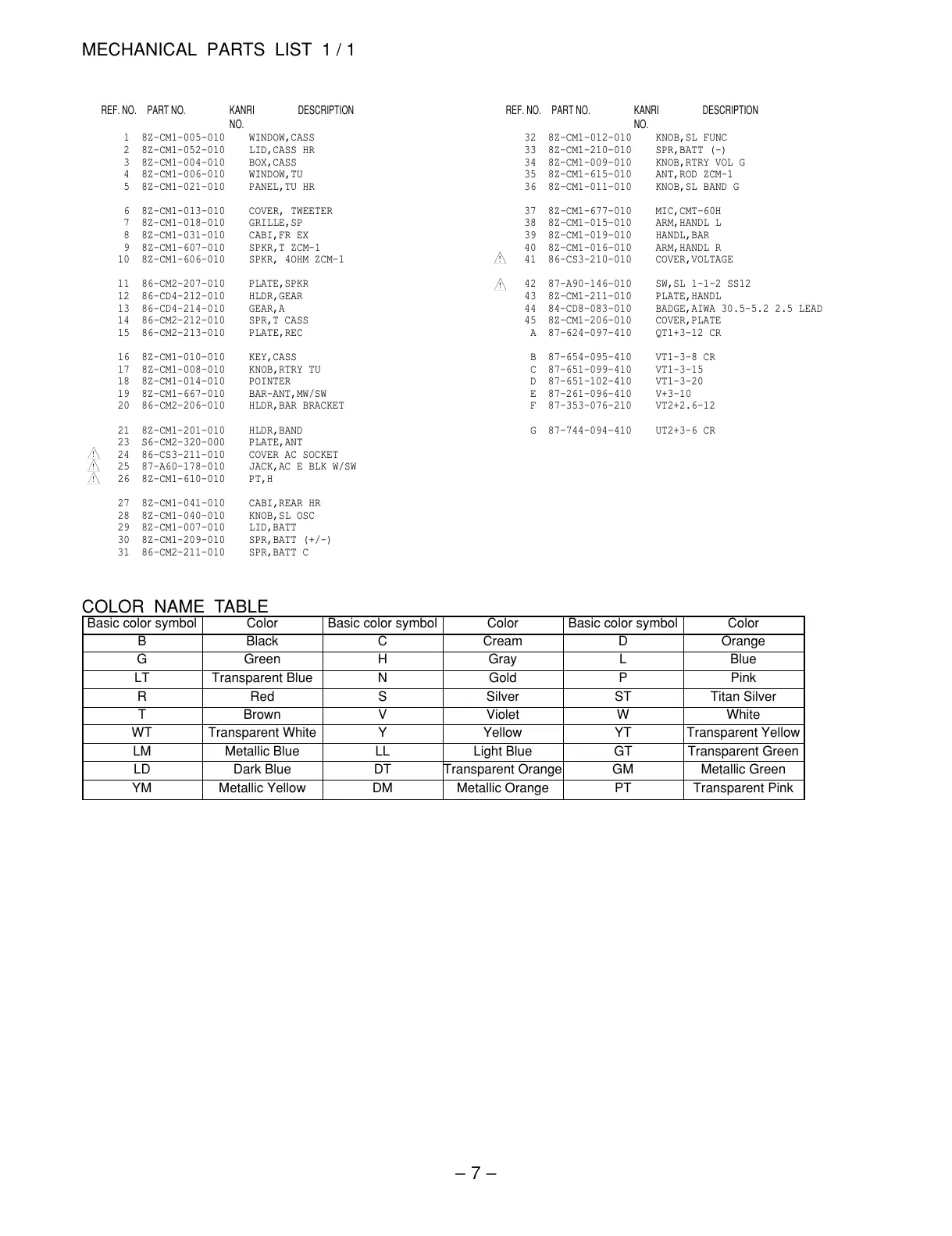

MECHANICAL PARTS LIST 1 / 1
DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
COLOR NAME TABLE
Basic color symbol Color Basic color symbol Color Basic color symbol Color
B Black C Cream D Orange
G Green H Gray L Blue
LT Transparent Blue N Gold P Pink
R Red S Silver ST Titan Silver
T Brown V Violet W White
WT Transparent White Y Yellow YT Transparent Yellow
LM Metallic Blue LL Light Blue GT Transparent Green
LD Dark Blue DT Transparent Orange GM Metallic Green
YM Metallic Yellow DM Metallic Orange PT Transparent Pink
1 8Z-CM1-005-010 WINDOW,CASS
2 8Z-CM1-052-010 LID,CASS HR
3 8Z-CM1-004-010 BOX,CASS
4 8Z-CM1-006-010 WINDOW,TU
5 8Z-CM1-021-010 PANEL,TU HR
6 8Z-CM1-013-010 COVER, TWEETER
7 8Z-CM1-018-010 GRILLE,SP
8 8Z-CM1-031-010 CABI,FR EX
9 8Z-CM1-607-010 SPKR,T ZCM-1
10 8Z-CM1-606-010 SPKR, 4OHM ZCM-1
11 86-CM2-207-010 PLATE,SPKR
12 86-CD4-212-010 HLDR,GEAR
13 86-CD4-214-010 GEAR,A
14 86-CM2-212-010 SPR,T CASS
15 86-CM2-213-010 PLATE,REC
16 8Z-CM1-010-010 KEY,CASS
17 8Z-CM1-008-010 KNOB,RTRY TU
18 8Z-CM1-014-010 POINTER
19 8Z-CM1-667-010 BAR-ANT,MW/SW
20 86-CM2-206-010 HLDR,BAR BRACKET
21 8Z-CM1-201-010 HLDR,BAND
23 S6-CM2-320-000 PLATE,ANT
24 86-CS3-211-010 COVER AC SOCKET
25 87-A60-178-010 JACK,AC E BLK W/SW
26 8Z-CM1-610-010 PT,H
27 8Z-CM1-041-010 CABI,REAR HR
28 8Z-CM1-040-010 KNOB,SL OSC
29 8Z-CM1-007-010 LID,BATT
30 8Z-CM1-209-010 SPR,BATT (+/-)
31 86-CM2-211-010 SPR,BATT C
32 8Z-CM1-012-010 KNOB,SL FUNC
33 8Z-CM1-210-010 SPR,BATT (-)
34 8Z-CM1-009-010 KNOB,RTRY VOL G
35 8Z-CM1-615-010 ANT,ROD ZCM-1
36 8Z-CM1-011-010 KNOB,SL BAND G
37 8Z-CM1-677-010 MIC,CMT-60H
38 8Z-CM1-015-010 ARM,HANDL L
39 8Z-CM1-019-010 HANDL,BAR
40 8Z-CM1-016-010 ARM,HANDL R
41 86-CS3-210-010 COVER,VOLTAGE
42 87-A90-146-010 SW,SL 1-1-2 SS12
43 8Z-CM1-211-010 PLATE,HANDL
44 84-CD8-083-010 BADGE,AIWA 30.5-5.2 2.5 LEAD
45 8Z-CM1-206-010 COVER,PLATE
A 87-624-097-410 QT1+3-12 CR
B 87-654-095-410 VT1-3-8 CR
C 87-651-099-410 VT1-3-15
D 87-651-102-410 VT1-3-20
E 87-261-096-410 V+3-10
F 87-353-076-210 VT2+2.6-12
G 87-744-094-410 UT2+3-6 CR
!
!
!
