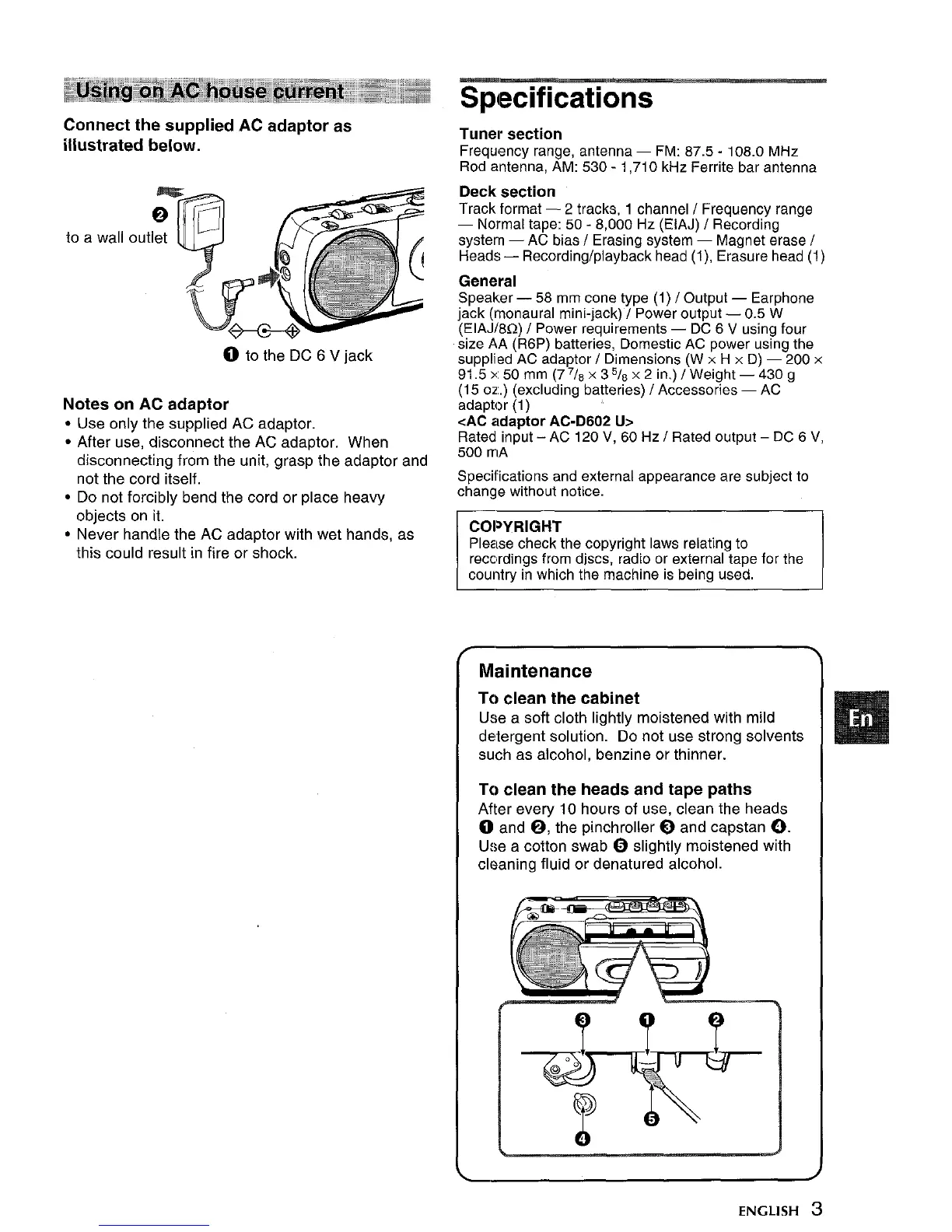

Connect the supplied AC adaptor as
illustrated below.
~ to the DC 6 V jack
Notes on AC adaptor
● Use only the supplied AC adaptor.
● After use, disconnect the AC adaptor. When
disconnecting from the unit, grasp the adaptor and
not the cord itself,
. Do not forcibly bend the cord or place heavy
objects on it.
. Never handle the AC adaptor with wet hands, as
this could result in fire or shock.
Specifications
Tuner section
Frequency range, antenna — FM: 87.5 -108.0 MHz
Rod antenna, AM: 530-1,710 kHz Ferrite bar antenna
Deck section
Track format — 2 tracks, 1 channel/ Frequency range
— Normal tape: 50-8,000 Hz (EIAJ) / Recording
system — AC bias / Erasing system — Magnet erase /
Heads — Recording/playback head(1), Erasure head (1)
General
Speaker — 58 mm cone type (1)/ Output — Earphone
jack (monaural mini-jack) / Power output — 0.5 W
(EIAJ/8f2) / Power requirements — DC 6 V using four
size AA (R6P) batteries, Domestic AC power using the
supplied AC adaptor/ Dimensions (W x H x D) — 200 x
91.5 x 50 mm (77/8x 35/8x 2 in.) / Weight — 430 g
(15 oz.) (excluding batteries) / Accessories — AC
adaptor (1)
<AC edaptor AC-D602 lb
Rated inout – AC 120 V. 60 Hz/ Rated outrmt – DC 6 V,
500 mlA
Specifications and external appearance are subject to
change without notice.
[
COPYRIGHT
Please check the copyright laws relating to
recc,rdings from discs, radio or external tape for the
country in which the machine is being used.
Maintenance
To clean the cabinet
Use a soft cloth lightly moistened with mild
detergent solution. Do not use strong solvents
such as alcohol, benzine or thinner.
To clean the heads and tape paths
After every 10 hours of use, clean the heads
~ and ~, the pinchroller @ and capstan ~.
Use a cotton swab @ slightly moistened with
ck?aning fluid or denatured alcohol
???
ENGLISH 3
