AJA Hi5 HD-SDI/SDI to HDMI and Audio Converter User Manual — Introduction
Introduction
The Hi5 converts SDI or HD-SDI to HDMI for driving HDMI monitors.
Embedded SDI/HD-SDI audio is supported in the HDMI output allowing a
convenient single cable audio/video connection. The Hi5 provides 2 Channel RCA
style audio outputs for separate audio monitoring if needed. The Hi5 also provides a
looping SDI/HD-SDI output useful for connecting additional equipment, or for
“daisy chaining” multiple monitors to the same SDI-HD-SDI source.
Features
• SDI/HD-SDI to HDMI
• Full HDMI support including 10-bit video and 8 channels of embedded audio
• Additional 2 Channel RCA jack audio output (channels 1 and 2)
• Equalized Looping SDI/HD-SDI output
• HDMI cable supplied
• Uses 5V power (supply sold separately)
• No configuration necessary

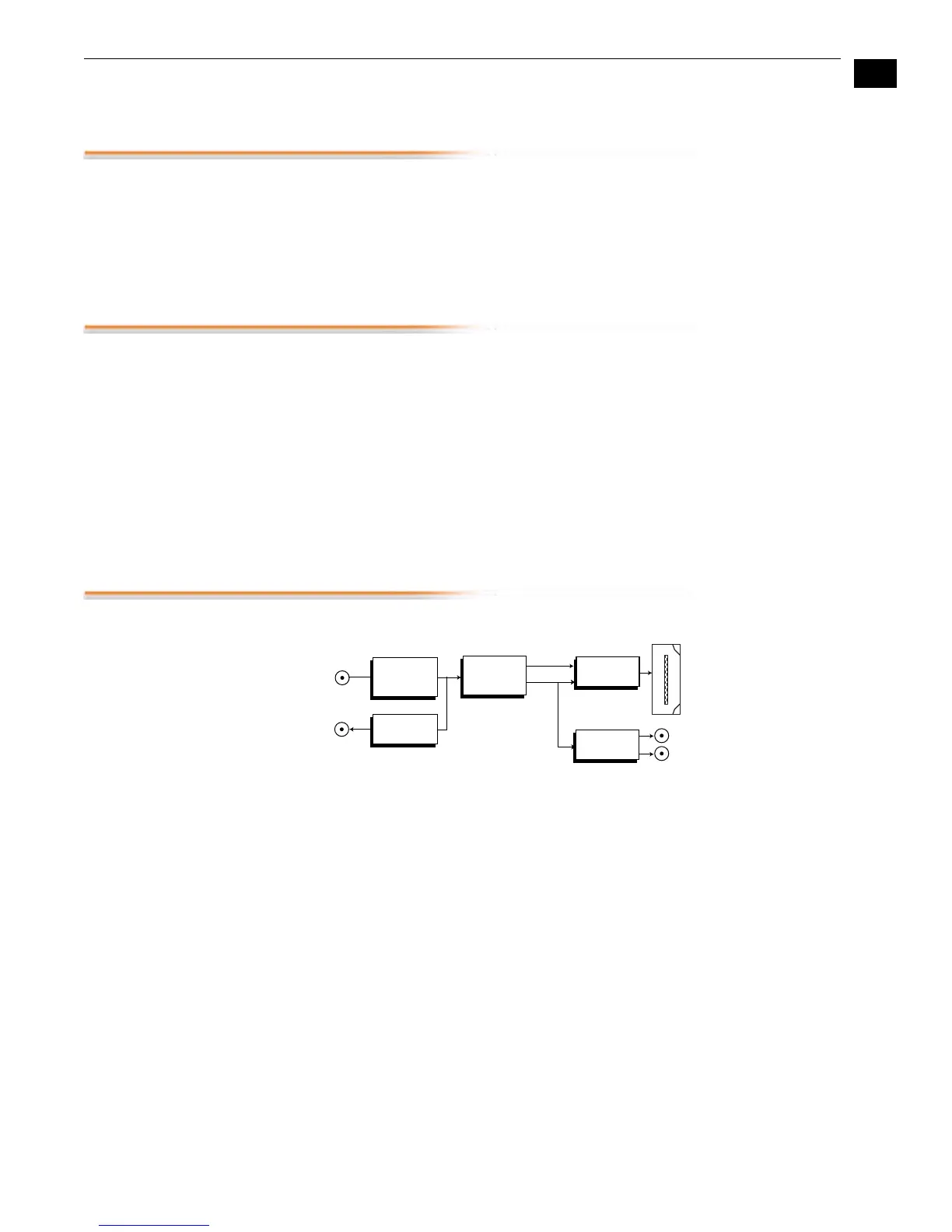

Block Diagram
Hi5 Converter, Simplified Block Diagram
SDI/HD-SDI
Input
SDI/HD-SDI
Output
SDI
Processing
Audio
D/A
SDI Equalizer
Video
Audio
SDI
Transmitter
HDMI
Transmitter
2-Channel
Analog Audio
Monitor Output
HDMI Output
with Embedded
Audio
