Io XT Installation and Operation Manual — Machine Control
Machine Control
RS-422, Sony 9-pin protocol. 9-pin D-connector pinout is as follows:
1............. GND
2............. RX-
3............. TX+
4............. GND
5............. No Connection
6............. GND
7............. RX+
8............. TX-
9............. GND
Shell....... GND

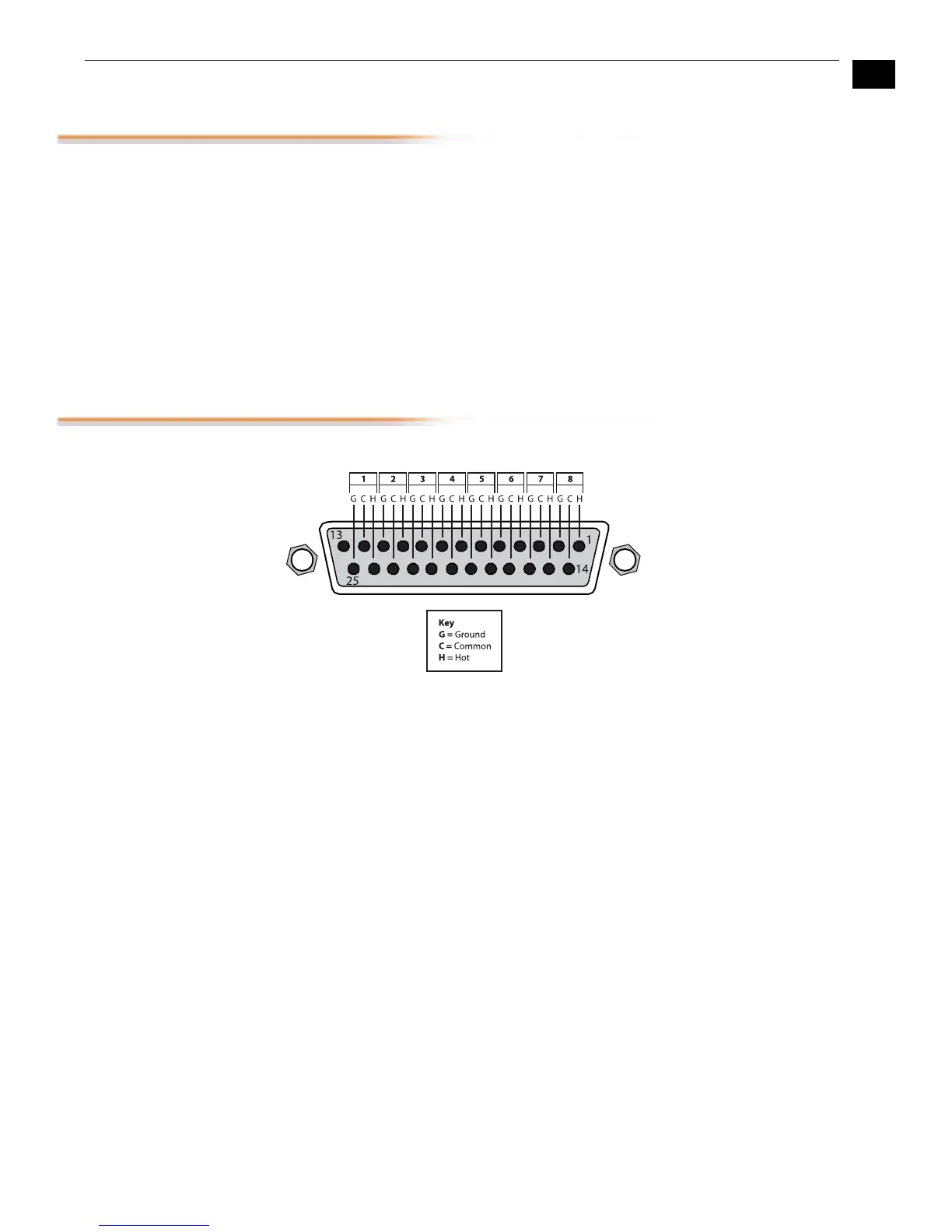

DB25 Analog Audio Output Connection
Connector Pinout
The DB25 connector on the Io XT rear panel supports a TASCAM-style cable snake for
balanced 8-channel analog audio. The pinout follows the TASCAM DB-25 standard
shown in the drawing above.
