Ki Pro Rack v4.2 www.aja.com
71

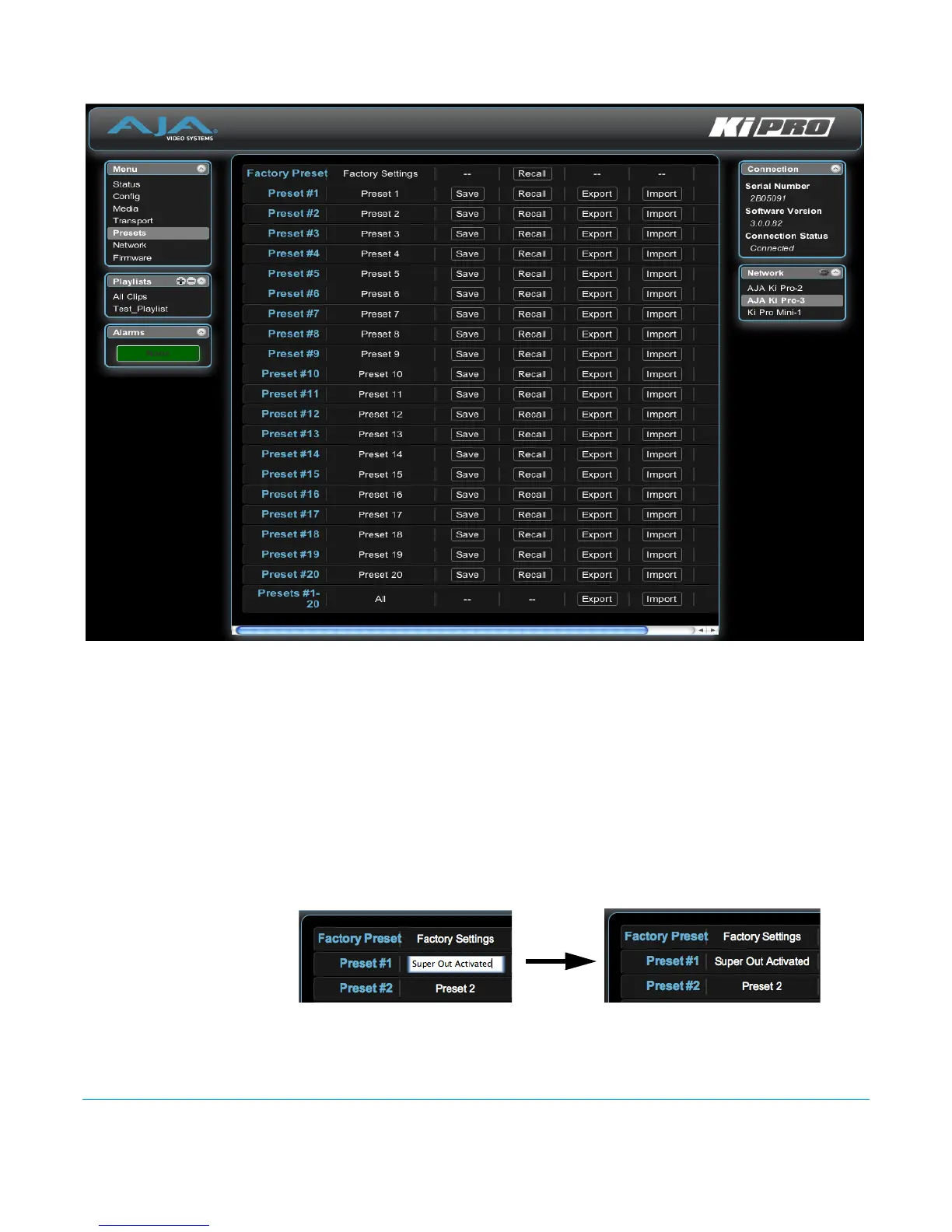

Figure 15. Ki Pro Rack Web Interface, Presets Screen
Recall (91.1): The Recall buttons recall saved preset configurations.
When you recall a Preset Configuration, the recalled preset immediately replaces the
system’s existing configuration. All previous settings are lost unless you have previously
stored them in another preset configuration or an exported file.
Store: The Store buttons let you save the current configuration into the preset register
with the associated name and number. A preset is a set of system parameters as they
were set at the time the preset was stored. Only editable parameters are saved in the
presets. Non-editable parameters are not saved.
To change a preset name, click in the name's text field and type a new name. Then press
Enter.
Figure 16. Ki Pro Rack Web Interface, Changing Preset Name
