AJS G2 - Page 86

350 c.c. Trials Model
Heavyweight Scrambler
„ Touring Model
„ Sidecar Model
250 c.c. Touring Model
CSR
350 c.c. Lightweight
Model
043312
024443
023373
023372
043312
043179
8½"
8d"
8¼"
8¼"
8½"
7¾"
Red/Red/Red
Green/Green/Green
Red/Pink/Red
Blue/Yellow/Blue
Red/Red/Red
Green/Blue/Green

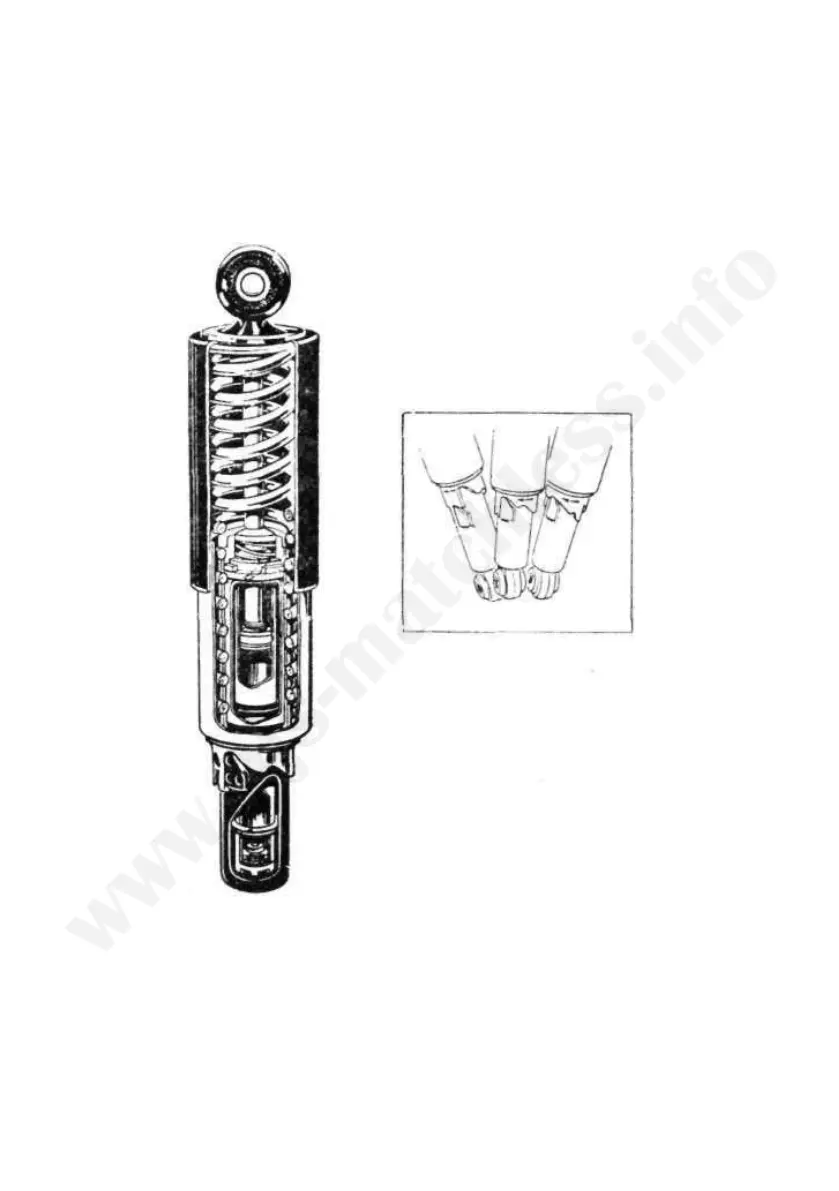

FIG 25 Rear suspension unit
Lightweight Models. Details for removing the engine and gear box, the
forks and wheels, have been described elsewhere. The further dismantling
of the frame is self-evident.
The swinging arm. If movement develops between the swinging arm and
the main frame, this does not necessarily indicate that the two spindle
bushes are worn.
