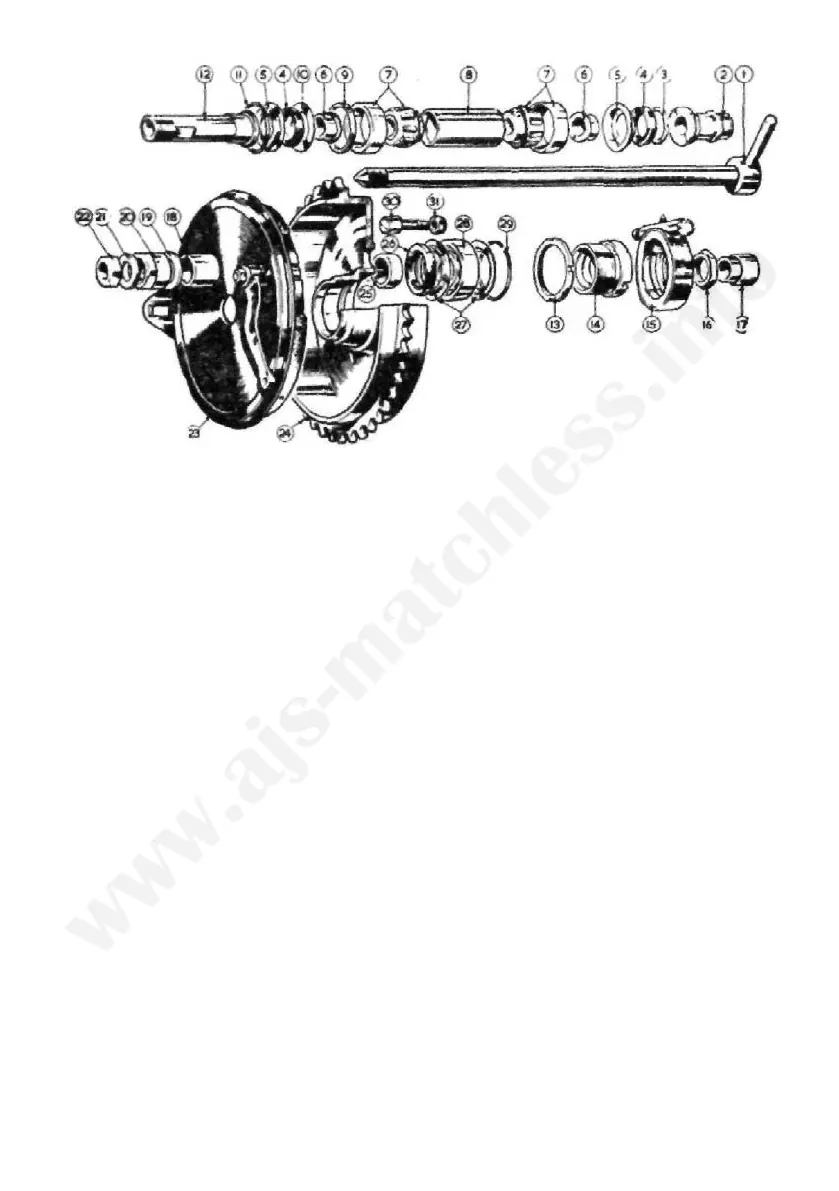

FIG 28 Rear brake and wheel bearings, de-luxe models
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
Withdrawable wheel spindle
Speedometer gear box sleeve
Ring retaining oil seal (small)
Oil seal
Cup for oil sseal
Oil seal distance piece
Taper roller bearing complete
Spacer between bearings
Bearing spacing collar (brake
side)
Ring retaining oil seal (large)
Circlip
Brake drum dummy spindle
Lock nut for adjusting ring
Adjusting ring
Speedometer gear box complete
Speedometer gear box fixing nut
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
Spacer for withdrawable spindle
Outer spacer for brake cover
plate
Washer for cover plate fixing nut
Brake cover plate fixing nut
Spindle end washer
Spindle end nut
Brake cover plate complete
Rear brake drum
Inner spacer for brake cover
plate
Brake drum bearing oil seal
Brake drum oil seal washers
Brake drum ball bearing
Circlip retaining bearing
Driving peg (5 off)
Nut securing driving peg (5 off)
The rear wheel. A journal type bearing RMS 5 is used in the right side
of the rear wheel hub, also a roller type bearing CRL 8 in the brake drum.
The pull-out spindle passes through both bearings and the hub.
The wheel is detachable from the brake drum.
To remove the rear wheel. Using the box key 029385 (supplied with the
tool kit) remove the five extended nuts 029235.
Remove the wheel spindle nut 014869, pull out the wheel spindle, when
the speedometer drive will come away from the hub with the drive cable
attached.
92
