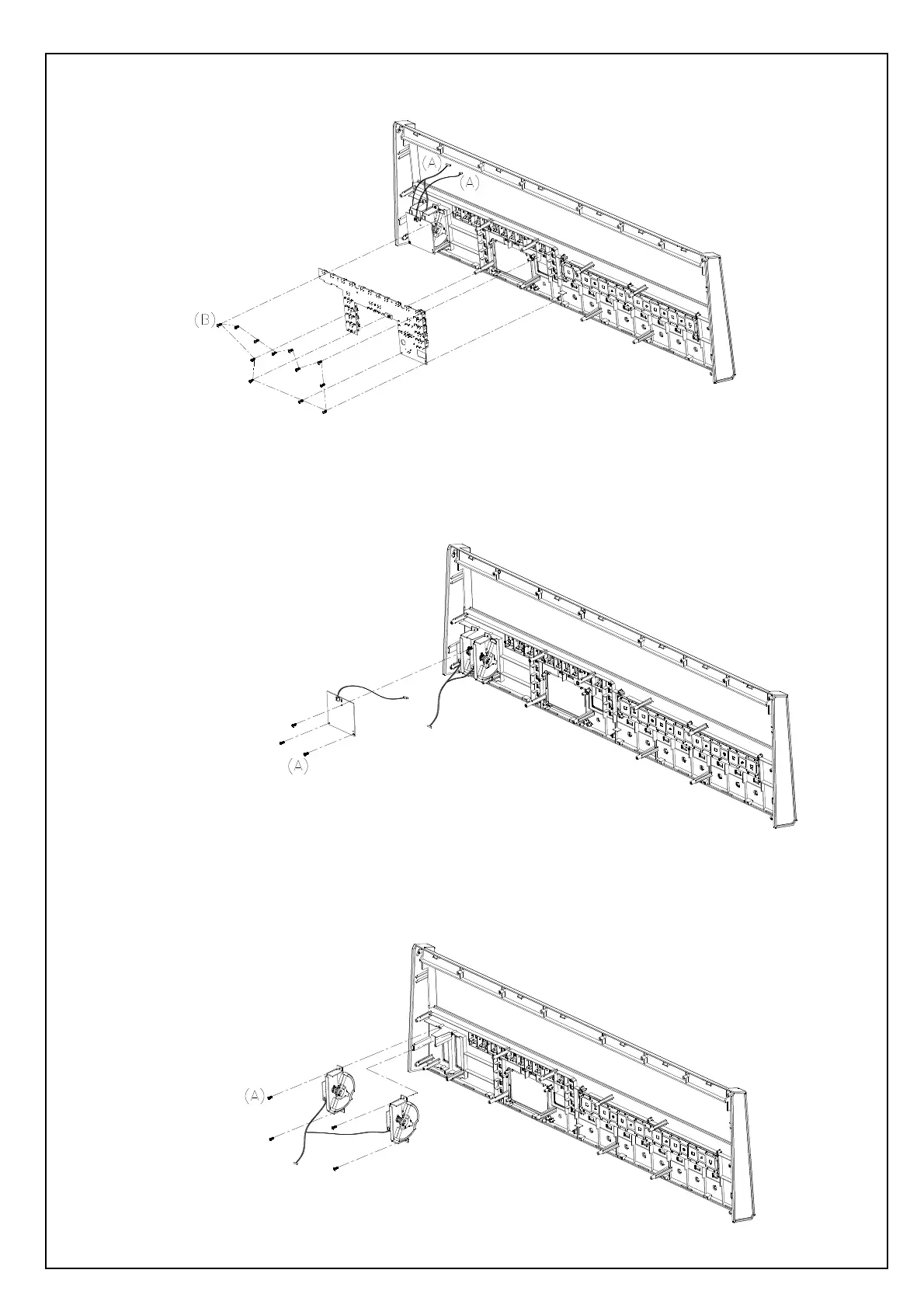

5.DISASSEMBLE THE TOP LEFT PCB ASS’Y. (Fig.5)
(A) REMOVE 2 CABLES FROM THE TOP LEFT PCB ASS’Y.
(B) REMOVE 12 SCREWS FROM THE TOP LEFT PCB ASS’Y.
(Fig.5)
6.DISASSEMBLE THE PITCH/MOD LED PCB ASS’Y. (Fig.6)
(A) REMOVE 3 SCREWS FROM THE PITCH/MOD PCB ASS’Y.
(Fig.6)
7.DISASSEMBLE THE P/M WHEEL ASS’Y. (Fig.7)
(A) REMOVE 4 SCREWS FROM THE P/M WHEEL ASS’Y.
(Fig.7)
