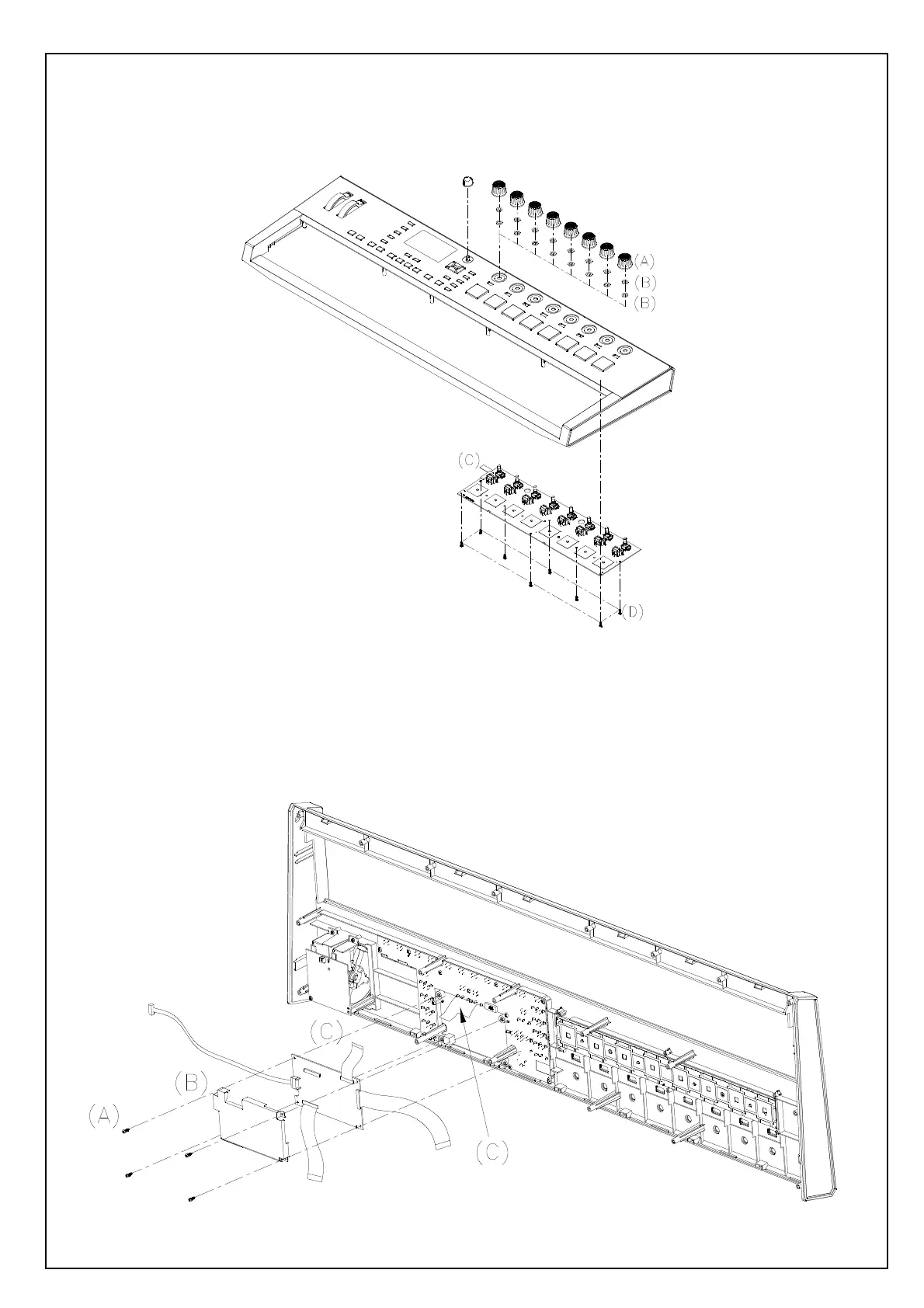

3.DISASSEMBLE THE TOP RIGHT PCB ASS’Y.(Fig.3)
(A) REMOVE 9 KNOBS.
(B) REMOVE 8 NUTS AND 8 WASHERS.
(C) REMOVE THE COPPER TAP FROM THE TOP RIGHT PCB ASS’Y.
(D) REMOVE 8 SCREWS FROM THE TOP RIGHT PCB ASS’Y.
(Fig.3)
4.DISASSEMBLE THE MAIN PCB ASS’Y.(Fig.4)
(A) REMOVE 4 SCREWS FROM THE MAIN PCB ASS’Y
(B) REMOVE THE METAL COVER FROM THE MAIN PCB ASS’Y.
(C) REMOVE 2 CABLES FROM THE TFT AND THE TOP LEFT PCB ASS’Y.
(Fig.4)
