Akai AM-32

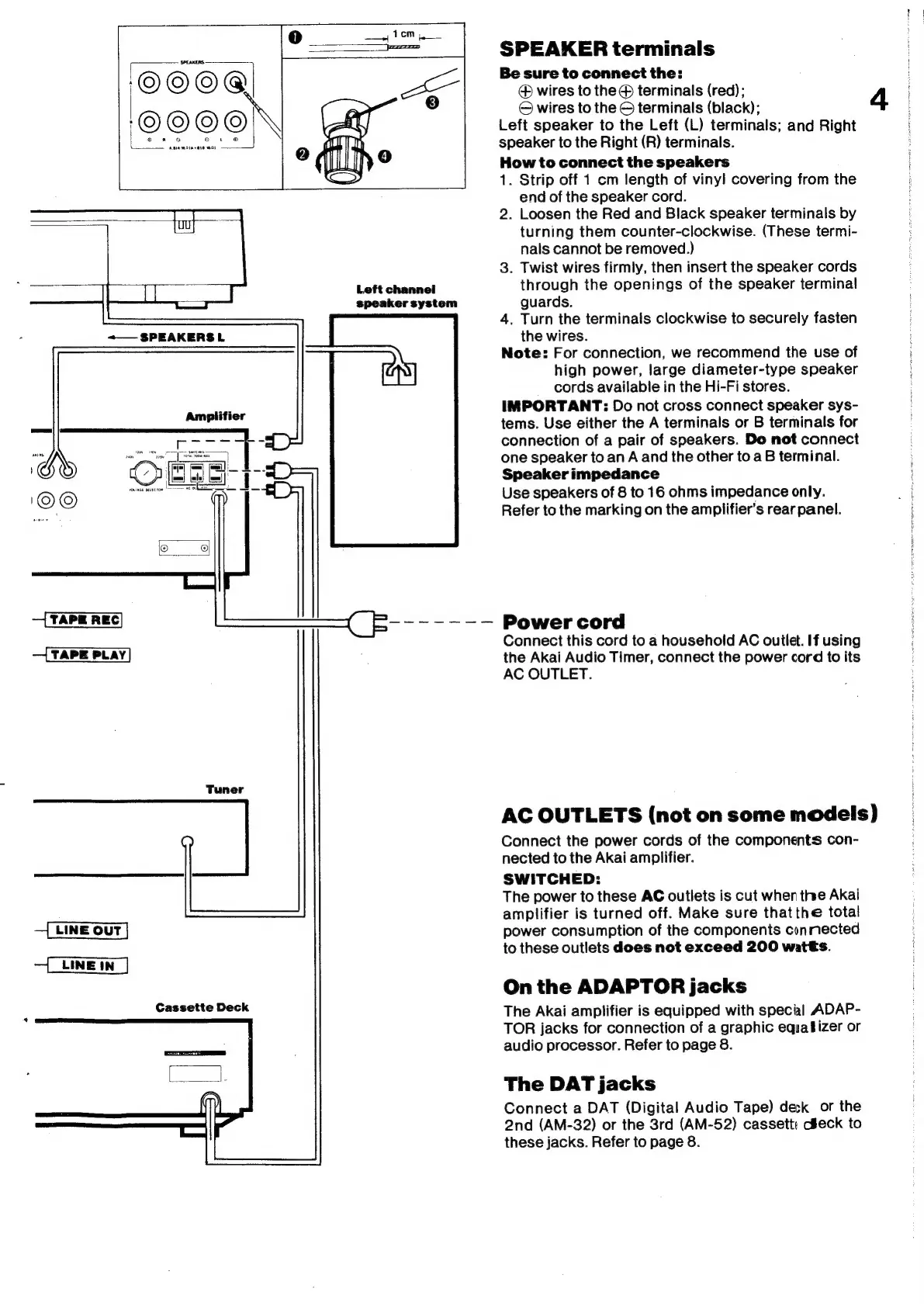

SPEAKER terminals
Be sure to connect the:
Ф wires to the @ terminals (red);
© wires to the © terminals (black); 4
Left speaker to the Left (L) terminals; and Right
speaker to the Right (R) terminals.
How to connect the speakers
1. Strip off 1 cm length of vinyl covering from the
end of the speaker cord.
2. Loosen the Red and Black speaker terminals by
turning them counter-clockwise. (These termi-
nals cannot be removed.)
3. Twist wires firmly, then insert the speaker cords
Left channel through the openings of the speaker terminal
speaker system guards.
4. Turn the terminals clockwise to securely fasten
-— SPEAKERSL the wires.
Note: For connection, we recommend the use of
high power, large diameter-type speaker
cords available in the Hi-Fi stores.
IMPORTANT: Do not cross connect speaker sys-
tems. Use either the A terminals or B terminals for
connection of a pair of speakers. Do not connect
one speaker to an A and the other to a B terminal.
Speaker impedance
Use speakers of 8 to 16 ohms impedance only.
Refer to the marking on the amplifier’s rear panel.
Amplifier
Power cord
Connect this cord to a household AC outlet. If using
the Akai Audio Timer, connect the power cord to its
AC OUTLET.
AC OUTLETS (not on some models)
Connect the power cords of the components con-
nected to the Akai amplifier.
SWITCHED:
The power to these AC outlets is cut when the Akai
amplifier is turned off. Make sure thatthe total
power consumption of the components connected
to these outlets does not exceed 200 watts.
—_LINEIN |
On the ADAPTOR jacks
The Akai amplifier is equipped with speck! ADAP-
TOR jacks for connection of a graphic equalizer ог
audio processor. Refer to page 8.
The DAT jacks
Connect a DAT (Digital Audio Tape) desk or the
2nd (АМ-32) or the 3rd (AM-52) cassett: deck to
these jacks. Refer to page 8.
Cassette Deck
