Akai AM-32

5

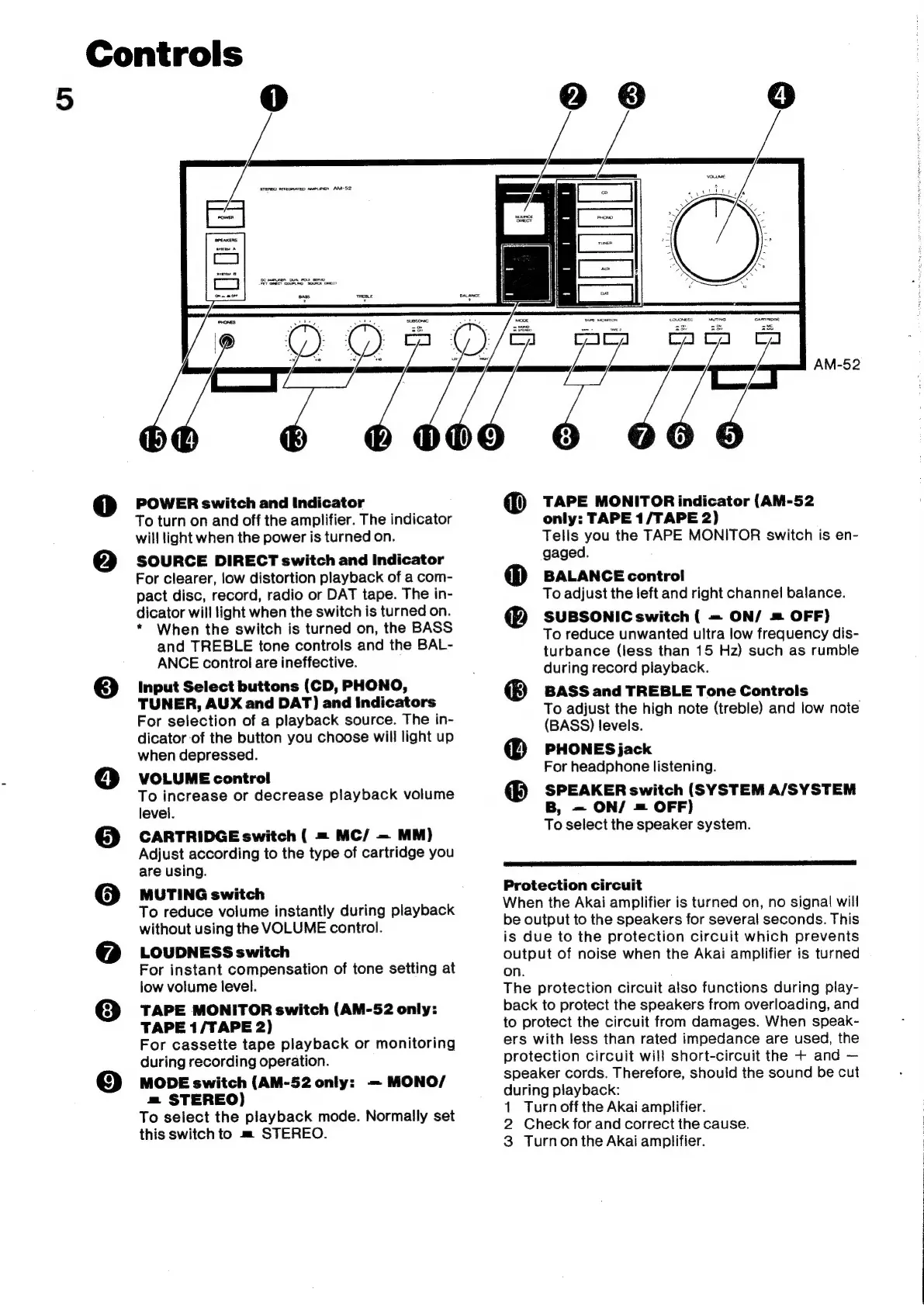

Controls
© ©
©
© © 000 ©
BTEREG wTEGRATED АМР жн АМ-52
POWER switch and Indicator
To turn on and off the amplifier. The indicator
will light when the power is turned on.
SOURCE DIRECT switch and Indicator
For clearer, low distortion playback of a com-
pact disc, record, radio or DAT tape. The in-
dicator will light when the switch is turned on.
* When the switch is turned on, the BASS
and TREBLE tone controls and the BAL-
ANCE control are ineffective.
Input Select buttons (CD, PHONO,
TUNER, AUX and DAT) and Indicators
For selection of a playback source. The in-
dicator of the button you choose will light up
when depressed.
VOLUME control
To increase or decrease playback volume
level.
CARTRIDGE switch ( = MC/ = MM)
Adjust according to the type of cartridge you
are using.
MUTING switch
To reduce volume instantly during playback
without using the VOLUME control.
LOUDNESS switch
For instant compensation of tone setting at
low volume level.
TAPE MONITOR switch (AM-52 only:
TAPE 1/TAPE 2)
For cassette tape playback or monitoring
during recording operation.
MODE switch (AM-52 only: = MONO/
т STEREO)
To select the playback mode. Normally set
this switch to m STEREO.
AM-52
Q TAPE MONITOR indicator (АМ-52
only: TAPE 1/TAPE 2)
Tells you the TAPE MONITOR switch is en-
gaged.
BALANCE control
To adjust the left and right channel balance.
SUBSONIC switch ( — ON/ = OFF)
To reduce unwanted ultra low frequency dis-
turbance (less than 15 Hz) such as rumble
during record playback.
BASS and TREBLE Tone Controls
To adjust the high note (treble) and low note
(BASS) levels.
PHONES jack
For headphone listening.
SPEAKER switch (SYSTEM A/SYSTEM
B, — ON/ = OFF)
To select the speaker system.
өө ө өө
Protection circuit
When the Akai amplifier is turned on, no signal will
be output to the speakers for several seconds. This
is due to the protection circuit which prevents
output of noise when the Akai amplifier is turned
on.
The protection circuit also functions during play-
back to protect the speakers from overloading, and
to protect the circuit from damages. When speak-
ers with less than rated impedance are used, the
protection circuit will short-circuit the + and —
speaker cords. Therefore, should the sound be cut
during playback:
1 Turn off the Akai amplifier.
2 Check for and correct the cause.
3 Turnon the Akai amplifier.
