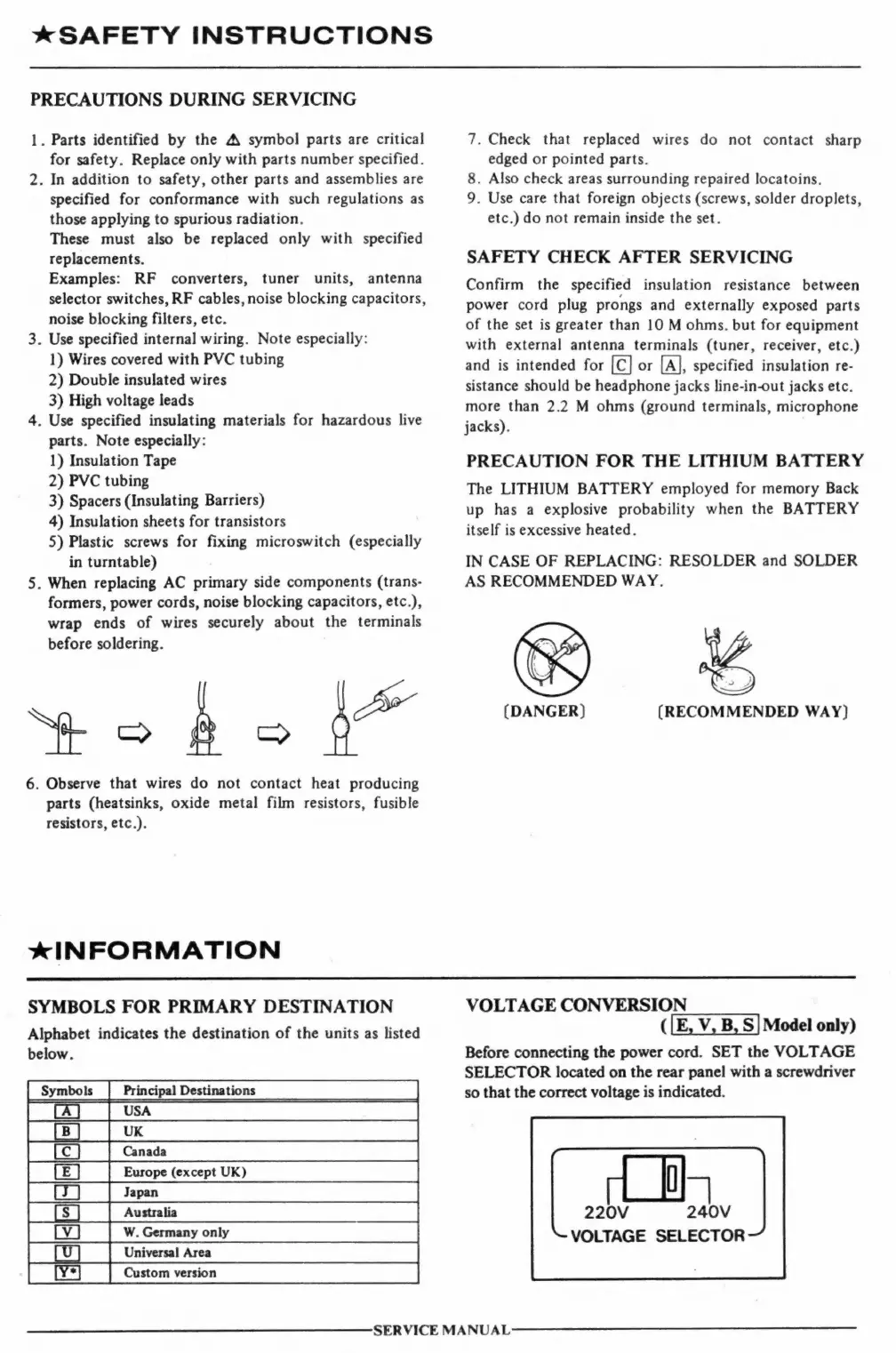

* SAFETY INSTRUCTIONS
PRECAUTIONS DURING SERVICING
. Parts identified by the A symbol parts are critical
for safety. Replace only with parts number specified.
2. In addition to safety, other parts and assemblies are
specified for conformance with such regulations as
those applying to spurious radiation.
These must also be replaced only with specified
replacements.
Examples: RF converters, tuner units, antenna
selector switches, RF cables, noise blocking capacitors,
noise blocking filters, etc.
3. Use specified internal wiring. Note especially:
1) Wires covered with PVC tubing
2) Double insulated wires
3) High voltage leads
4. Use specified insulating materials for hazardous live
parts. Note especially:
1) Insulation Tape
2) PVC tubing
3) Spacers (Insulating Barriers)
4) Insulation sheets for transistors
5) Plastic screws for fixing microswitch (especially
in turntable)
5. When replacing AC primary side components (trans-
formers, power cords, noise blocking capacitors, etc.),
wrap ends of wires securely about the terminals
before soldering.
to go I~
6. Observe that wires do not contact heat producing
parts (heatsinks, oxide metal film resistors, fusible
resistors, etc.).
no
* INFORMATION
7. Check that replaced wires do not contact sharp
edged or pointed parts.
. Also check areas surrounding repaired locatoins.
9. Use care that foreign objects (screws, solder droplets,
etc.) do not remain inside the set.
oo
SAFETY CHECK AFTER SERVICING
Confirm the specified insulation resistance between
power cord plug prongs and externally exposed parts
of the set is greater than 10 M ohms. but for equipment
with external antenna terminals (tuner, receiver, etc.)
and is intended for or [A], specified insulation re-
sistance should be headphone jacks line-in-out jacks etc.
more than 2.2 M ohms (ground terminals, microphone
jacks).
PRECAUTION FOR THE LITHIUM BATTERY
The LITHIUM BATTERY employed for memory Back
up has a explosive probability when the BATTERY
itself is excessive heated.
IN CASE OF REPLACING: RESOLDER and SOLDER
AS RECOMMENDED WAY.
(DANGER) (RECOMMENDED WAY)
SYMBOLS FOR PRIMARY DESTINATION
Alphabet indicates the destination of the units as listed
below.
ee
bl
eo
Run eee
| [S$] | Australia
W. Germany only
P [OU] | universtaraSSSCSC~*™
[Y*] Custom version
~
cS
2
did
SERVICE MANUAL
VOLTAGE CONVERSION
(|E, V, B, S| Model only)
Before connecting the power cord. SET the VOLTAGE
SELECTOR located on the rear panel with a screwdriver
so that the correct voltage is indicated.
220V 240V
VOLTAGE SELECTOR
