Akai AT-S55/L

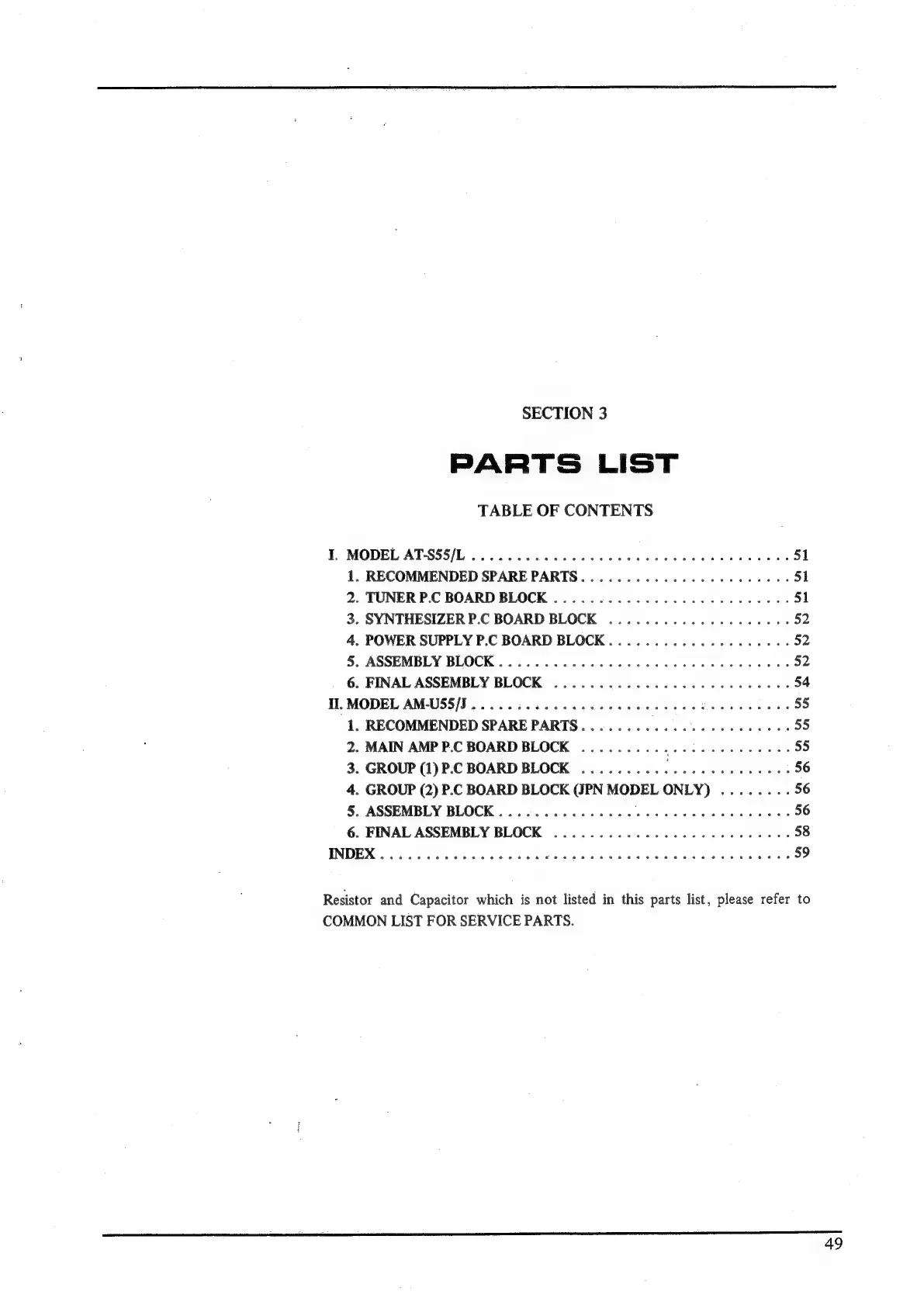

SECTION 3
PARTS LIST
TABLE OF CONTENTS
io MODEL ATSSS/E. oie dc cae Soe es ua cada ade 51
1. RECOMMENDED SPARE PARTS.............000000000e 51
2. TUNER P.C BOARD BLOCK ........0.0.. 0000 cece eee 51
3. SYNTHESIZER P.C BOARD BLOCK .................055 52
4, POWER SUPPLY P.C BOARD BLOCK.................00- 52
5B ASSEMBLY BLOCK. 2 ocic 8 Cost ie Seo tye Gewese ew ens 52
6. FINAL ASSEMBLY BLOCK .............-.00 0c ceeeeee 54
I MODEL AM-US5)3 22) dc evecine eweSecvuwceetes cect evs 55
1. RECOMMENDED SPARE PARTS............ Lae ocpech ee Dead 55
2. MAIN AMP P.CBOARD BLOCK .......... emai suk enol eel 55
3. GROUP (1) P.C BOARD BLOCK .......... aerate eel 56
4. GROUP (2) P.C BOARD BLOCK (JPN MODEL ONLY) ........ 56
5, ASSEMBLY BLOCK............... Nee yee er ee 56
6. FINAL ASSEMBLY BLOCK ...........0.0000 ccc eee 58
INDE Mpc ete aact Sttan tid a hose Dion cas re) 59
Resistor and Capacitor which is not listed in this parts list, please refer to
COMMON LIST FOR SERVICE PARTS.
