Akai GX-266D Operator's Manual

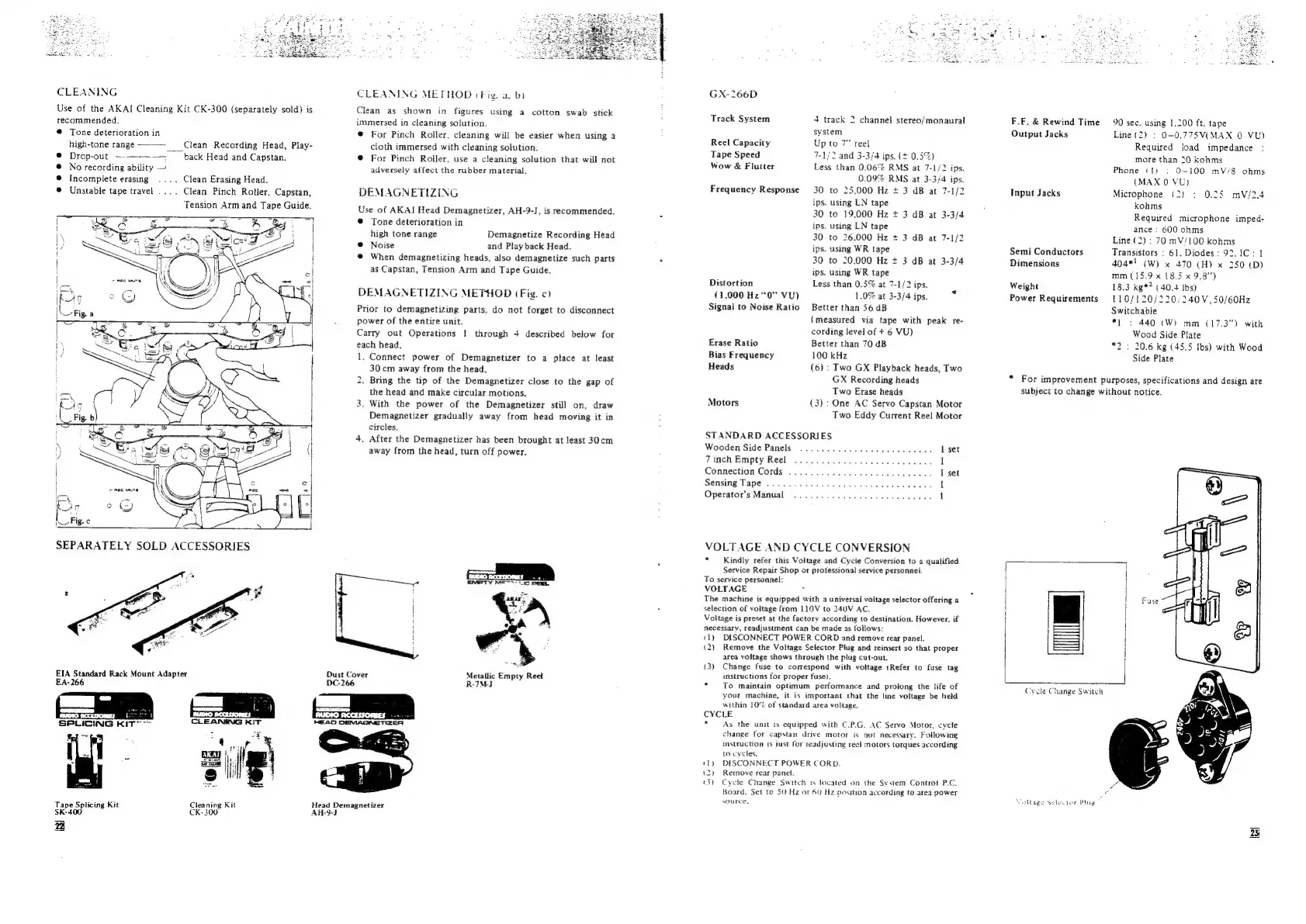

CLEANING
Use of the AKAI Cleaning Kit CK-300 (separately sold) is
recommended.
©@ Tone deterioration in
high-tone range Clean Recording Head, Play-
Drop-out —---------—- _ back Head and Capstan.
No recording ability —
Incomplete erasing . Clean Erasing Head.
Unstable tape travel .... Clean Pinch Roller, Capstan,
Tension Arm and Tape Guide.
CLEANING METHOD ‘Fig. a. bi
Clean as shown in figures using a cotton swab stick
immersed in cleaning solution.
@ For Pinch Roller, cleaning will be easier when using a
cloth immersed with cleaning solution.
@ For Pinch Roller. use a cleaning solution that will not
adversely affect the rubber material.
DEMAGNETIZING
Use of AKAI Head Demagnetizer, AH-9-J, is recommended.
©@ Tone deterioration in
high tone range Demagnetize Recording Head
© Noise and Play back Head.
@ When demagnetizing heads, also demagnetize such parts
as Capstan, Tension Arm and Tape Guide.
DEMAGNETIZING METHOD (Fig. c)
Prior to demagnetizing parts. do not forget to disconnect
power of the entire unit.
Carry out Operations ! through 4 described below for
each head.
1, Connect power of Demagnetizer to a place at least
30cm away from the head.
2. Bring the tip of the Demagnetizer close to the gap of
the head and make circular motions.
3. With the power of the Demagnetizer still on, draw
Demagnetizer gradually away from head moving it in
circles.
4. After the Demagnetizer has been brought at least 30cm
away from the head, turn off power.
Metallic Empty Reet
EA-266 DC-266 R-7MJ
Tape Splicing Kit Cleaning Kit
Head Demagnetizer
SK-400 CK-300 AH-9-3
g
GX-266D
Track System 4+ track 2 channel stereo/monaural
system
Up to 7” reel
7-1/2 and 3-3/4 ips. (+ 0.5%)
Less than 0.06% RMS at 7-1/2 ips.
0.09% RMS at 3-3/4 ips.
Frequency Response 30 to 25,000 Hz + 3 dB at 7-1/2
ips. using LN tape
30 to 19,000 Hz + 3 dB at 3-3/4
ips. using LN tape
30 to 26,000 Hz + 3 dB at 7-1/2
ips. using WR tape
30 to 20,000 Hz + 3 dB at 3-3/4
ips. using WR tape
Distortion Less than 0.5% at 7-1/2 ips.
(1,000 Hz “0” VU) 1.0% at 3-3/4 ips.
Signal to Noise Ratio Better than 56 dB
(measured via tape with peak re-
cording level of + 6 VU)
Erase Ratio Better than 70 dB
Bias Frequency 100 kHz
Heads (6): Two GX Playback heads, Two
GX Recording heads
Two Erase heads
Motors (3): One AC Servo Capstan Motor
Two Eddy Current Reel Motor
Reel Capacity
Tape Speed
Wow & Flutter
STANDARD ACCESSORIES
Wooden Side Panels ...............
7 inch Empty Reel ........
Connection Cords ..
Sensing Tape .....
Operator’s Manual
VOLTAGE AND CYCLE CONVERSION
? Kindly refer this Voltage and Cycie Conversion to a qualified
Service Repair Shop or professional service personnel.
To service personnel:
VOLTAGE 7
The machine is equipped with a universal voitage selector offering a
selection of voltage from 110V to 240V AC.
Voltage is preset at the factory according to destination. However, if
necessary, readjustment can be made as tollows:
(1) DISCONNECT POWER CORD and remove rear panel.
{2} Remove the Voltage Selector Plug and reinsert so that proper
area voltage shows through the plug cut-out.
(3) Change fuse to correspond with voltage (Refer to fuse tag
instructions for proper fuse).
. To maintain optimum performance and prolong the life of
your machine, it is important that the line voltage be held
within 10% of standard area voltage.
CYCLE
* As the unit is equipped with C.P.G. AC Servo Motor. cycle
change for capstan drive motor is not necessary. Following
instruction ts just for readjusting reel motors torques according
to cycles,
<1) DISCONNECT POWER CORD.
12) Remove rear panel.
(3) Cycle Change Switch is located on the Sysiem Control P.C.
Board. Set to 50 Hz or 60 Hz pasition according to area power
source.
F.F, & Rewind Time 90 sec. using 1.200 ft. tape
Output Jacks Line (2) : 0-0.77S5V(MAX 0 VU)
Required ioad impedance
more than 20 kohms
Phone (1) : 0-100 mV/8 ohms
(MAX 0 VU)
Input Jacks Microphone (2) : 0.25 mV/2.4
kohms
Required microphone imped-
ance : 600 ohms
Line (2) : 70 mV/100 kohms
Semi Conductors Transistors : 61. Diodes: 92, IC: 1
Dimensions 404"! (W) x 470 (H) x 250 (D)
mm (15.9 x 18.5 x 9.8")
Weight 18.3 kg** (40.4 Ibs)
Power Requirements 110/{20/220;240V, $0/60Hz
Switchable
*)) 2 440 (W) mm (17.3") with
Wood Side Plate
*2 : 20.6 kg (45.5 Ibs) with Wood
Side Plate
* For improvement purposes, specifications and design are
subject to change without notice.
Cycle Change Switch
Woltage selector Plig
vz
