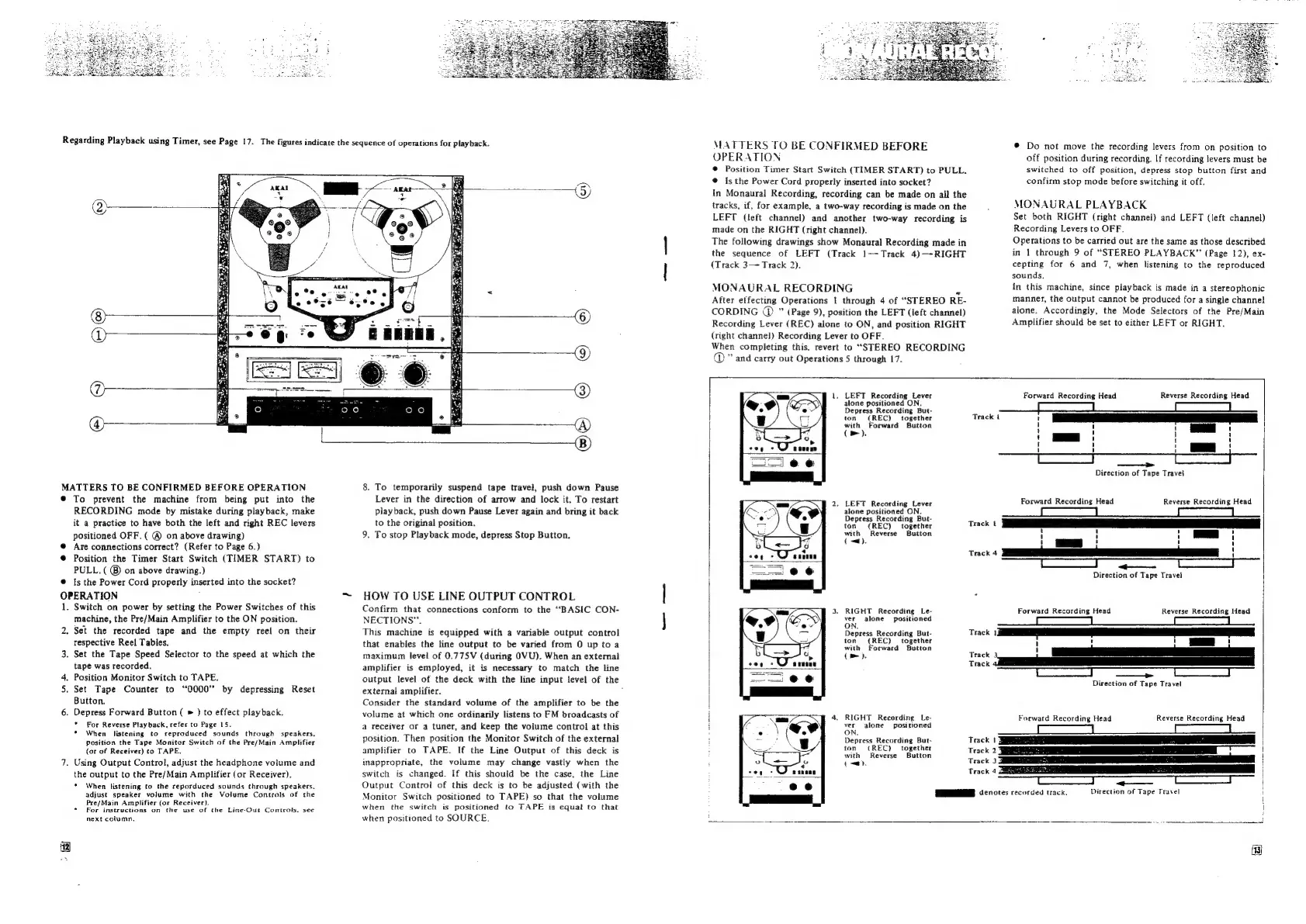

Page #7 background imageLoading...
Page #7 background image
MATTERS
TO
BE
CONFIRMED
BEFORE
OPERATION
@
To
prevent
the
machine
from
being
put
into
the
RECORDING
mode
by
mistake
during
playback,
make
it
a
practice
to
have
both
the
left
and
right
REC
levers
positioned
OFF.
(
®
on
above
drawing)
®
Are
connections
correct?
(Refer
to
Page
6.)
@
Position
the
Timer
Start
Switch
(TIMER
START)
to
PULL.
(
®)
on
above
drawing.)
@
Is
the
Power
Cord
properly
inserted
into
the
socket?
OPERATION
1.
Switch
on
power
by
setting
the
Power
Switches
of
this
machine,
the
Pre/Main
Amplifier
to
the
ON
position.
2.
Set
the
recorded
tape
and
the
empty
reel
on
their
respective
Reel
Tables.
3.
Set the
Tape
Speed
Selector
to
the
speed
at
which
the
tape
was
recorded.
4.
Position
Monitor
Switch
to
TAPE.
5.
Set
Tape
Counter
to
“0000”
by
depressing
Reset
Button.
6.
Depress
Forward
Button
(
»
)
to
effect
playback.
*
For
Reverse
Playback,
refer
to
Page
15.
*
When
listening
to
reproduced
sounds
through
speakers,
Position
the
Tape
Monitor
Switch
of
the
Pre/Main
Amplifier
(or
of
Receiver)
to
TAPE.
7,
Using
Output
Control,
adjust
the
headphone
volume
and
the
output
to
the
Pre/Main
Amplifier
(or
Receiver).
*
When
listening
to
the
reporduced
sounds
through
speakers.
adjust
speaker
volume
with
the
Volume
Controls
of
the
Pre/Main
Amplifier
(or
Receiver).
*
For
instructions
on
the
use
of
the
Line-Out
Controls.
see
next
column.
8.
To
temporarily
suspend
tape
travel,
push
down
Pause
Lever
in
the
direction
of
arrow
and
lock
it.
To
restart
playback,
push
down
Pause
Lever
again
and
bring
it
back
to
the
original
position.
9.
To
stop
Playback
mode,
depress
Stop
Button.
HOW
TO
USE
LINE
OUTPUT
CONTROL
Confirm
that
connections
conform
to
the
“BASIC
CON-
NECTIONS”’.
This
machine
is
equipped
with
a
variable
output
control
that
enables
the
line
output
to
be
varied
from
0
up
toa
maximum
level
of
0.775V
(during
OVU).
When
an
external
amplifier
is
employed,
it is
necessary
to
match
the
line
output
level
of
the
deck
with
the
line
input
level
of
the
external
amplifier.
Consider
the
standard
volume
of
the
amplifier
to
be
the
volume
at
which
one
ordinarily
listens
to
FM
broadcasts
of
a
receiver
or
a
tuner,
and
keep
the
volume
control
at
this
position.
Then
position
the
Monitor
Switch
of
the
external
amplifier
to
TAPE.
If
the
Line
Output
of
this
deck
is
inappropriate,
the
volume
may
change
vastly
when
the
switch
is
changed.
If
this
should
be
the
case,
the
Line
Output
Control
of
this
deck
is
to
be
adjusted
(with
the
Monitor
Switch
positioned
to
TAPE)
so
that
the
volume
when
the
switch
is
positioned
to
TAPE
is
equal
to
that
when
positioned
to
SOURCE.
yews
MATTERS
TO
BE
CONFIRMED
BEFORE
OPERATION
®
Position
Timer
Start
Switch
(TIMER
START)
to
PULL.
@
is
the
Power
Cord
properly
inserted
into
socket?
In
Monaural
Recording,
recording
can
be
made
on
ail
the
tracks,
if,
for
example,
a
two-way
recording
is
made
on
the
LEFT
(left
channel)
and
another
two-way
recording
is
made
on
the
RIGHT
(right
channel).
The
following
drawings
show
Monaural
Recording
made
in
the
sequence
of
LEFT
(Track
1--Track
4)-~RIGHT
(Track
3—
Track
2),
MONAURAL
RECORDING
x
After
effecting
Operations
1
through
4
of
“STEREO
RE-
CORDING
W
”
(Page
9),
position
the
LEFT
(left
channel)
Recording
Lever
(REC)
alone
to
ON,
and
position
RIGHT
(right
channel)
Recording
Lever
to
OFF.
When
completing
this.
revert
to
“STEREO
RECORDING
@”
and
carry
out
Operations
5
through
17.
©
Do
not
move
the
recording
levers
from
on
position
to
off
position
during
recording.
If
recording
fevers
must
be
switched
to
off
position,
depress
stop
button
first
and
confirm
stop
mode
before
switching
it
off.
MONAURAL
PLAYBACK
Set
both
RIGHT
(right
channel}
and
LEFT
(left
channel)
Recording
Levers
to
OFF.
Operations
to
be
carried
out
are
the
same
as
those
described
in
|
through
9
of
“STEREO
PLAYBACK”
(Page
12),
ex-
cepting
for
6
and
7,
when
listening
to
the
reproduced
sounds,
In
this
machine,
since
playback
is
made
in
a
stereophonic
manner,
the
output
cannot
be
produced
for
a
single
channel
alone.
Accordingly,
the
Mode
Selectors
of
the
Pre/Main
Amplifier
should
be
set
to
either
LEFT
or
RIGHT.
1,
LEFT
Recording
Lever
alone
positioned
ON.
Depress
Recording
But-
ton
(REC)
together
with
Forward
Button
(>).
2.
LEFT
Recording
Lever
alone
positioned
ON,
Depress
Recording
But-
ton
(REC)
together
with
Reverse
Button
(~t.
3.
RIGHT
Recording
Le-
ver
alone
positioned
ON.
Depress
Recording
But-
ton
(REC)
together
with
Forward
Button
(Cm).
4.
RIGHT
Recording
Le-
ver
alone
positioned
ON.
Depress
Recording
But-
ton
(REC)
together
with
Reverse
Button
(<7.
HH
te
notes
recorded
track.
Forward
Recording
Head
Reverse
Recording
Head
Track
i
i
TT
=
ea
—
Direction
of
Tape
Travel
Forward
Recording
Head
Reverse
Recording
Head
>
aaa
t
'
'
|
a
Track
4
Direction
of
Tape
Travel
Forward
Recording
Head
Track
———
Track
Reverse
i
a
a
es
Head
a
of
Tape
Travel
Forward
Recording
Head
Reverse
Recording
Head
a
ee
____
Track
|
Track
2
Track
3
Track
4
2
ey,
eget
Ve
Direction
of
Tape
Travel
