Akai GX-266D Service Manual

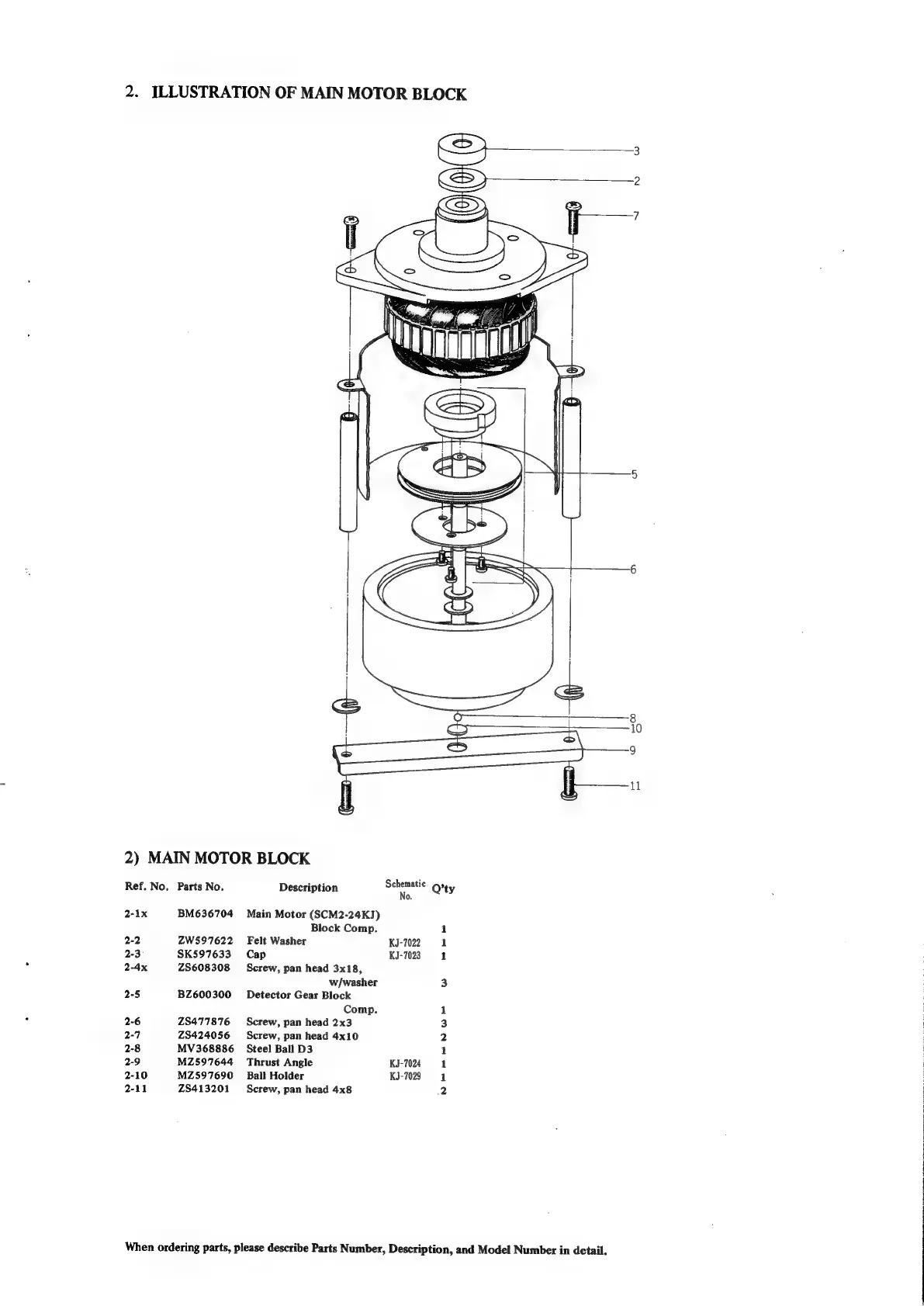

2. ILLUSTRATION OF MAIN MOTOR BLOCK
2) MAIN MOTOR BLOCK
Ref. No. Parts No. Description soos Q'ty
2-1x BM636704 Main Motor (SCM2-24K3J)
Block Comp. 1
2-2 ZW597622 Felt Washer KJ-7022 1
2-3 SK597633 Cap KJ-7023 1
2-4x ZS608308 Screw, pan head 3x18,
w/washer 3
2-5 BZ600300 Detector Gear Block
Comp. 1
2-6 ZS477876 Screw, pan head 2x3 3
2-7 ZS424056 Screw, pan head 4x10 2
2-8 MV368886 Steel Ball D3 1
2-9 MZ597644 Thrust Angle KJ-7024 1
2-10 MZ597690 Ball Holder KJ-7029 4
2-11 28413201 Screw, pan head 4x8 12
When
ordering
parts,
please
describe
Parts
Number,
Description,
and
Model
Number
in
detail.
