Akai GX-266D Service Manual

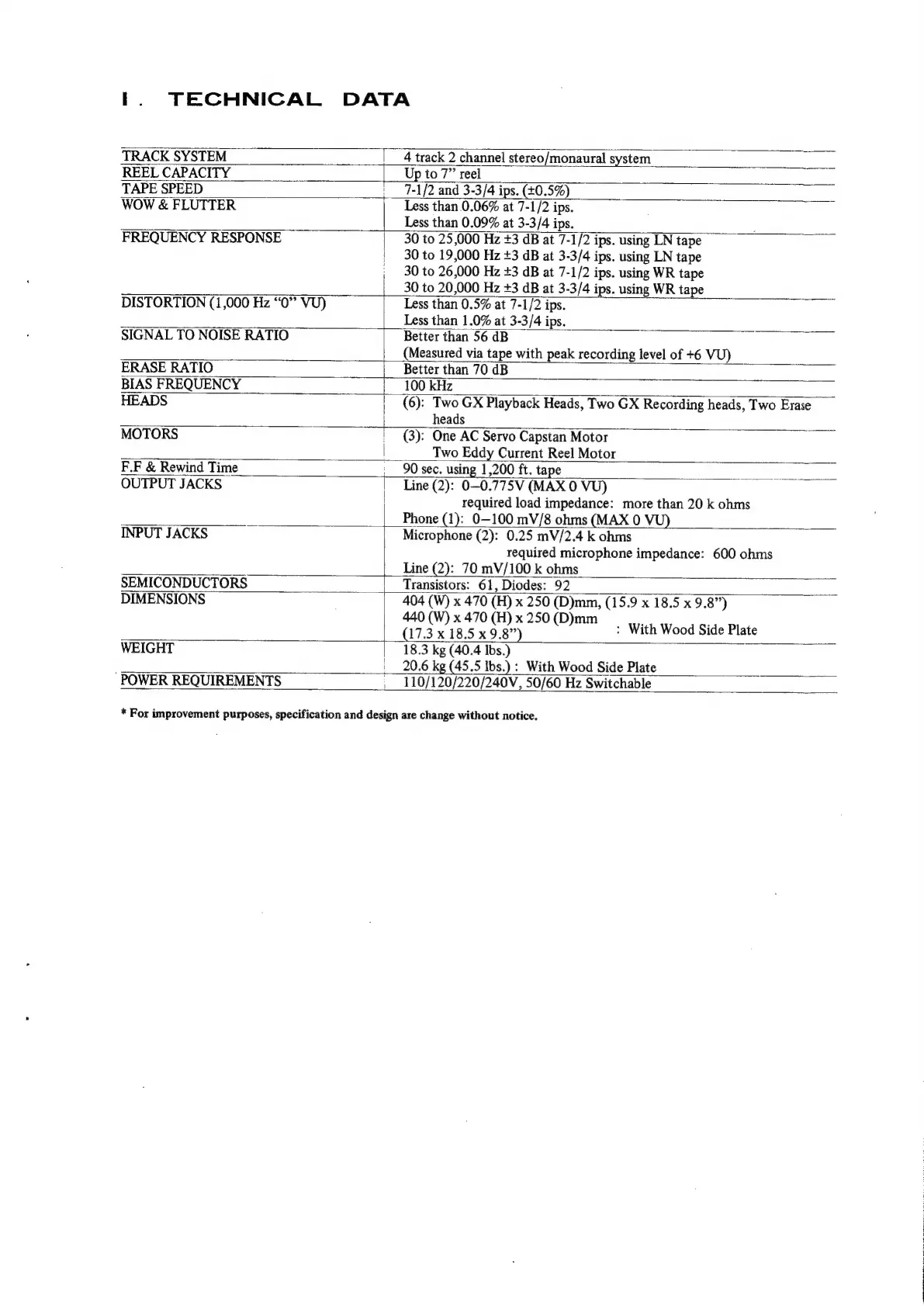

I. TECHNICAL
DATA
TRACK SYSTEM 4 track 2 channel stereo/monaural system
REEL CAPACITY Up to 7” reel
TAPE
SPEED
____7-1/2
and
3-3/4
ips.
(40.5%)
WOW & FLUTTER Less than 0.06% at 7-1/2 ips.
Less than 0.09% at 3-3/4 ips.
FREQUENCY
RESPONSE
30
to
25,000
Hz
+3
dB
at
7-1/2
ips.
using
LN
tape
30 to 19,000 Hz +3 dB at 3-3/4 ips. using LN tape
; 30 to 26,000 Hz +3 dB at 7-1/2 ips. using WR tape
30 to 20,000 Hz +3 dB at 3-3/4 ips. using WR tape
DISTORTION (1,000 Hz “0” VU) Less than 0.5% at 7-1/2 ips.
Less than 1.0% at 3-3/4 ips.
SIGNAL TO NOISE RATIO Better than 56 dB
(Measured via tape with peak recording level of +6 VU)
ERASE RATIO Better than 70 dB
BIAS FREQUENCY 100 kHz
HEADS
|
(6):
Two
GX
Playback
Heads,
Two
GX
Recording
heads,
Two
Erase
heads
MOTORS | (3): One AC Servo Capstan Motor
Two Eddy Current Reel Motor
F.F
&
Rewind
Time
90
sec.
using
1,200
ft.
tape
7
OUTPUT
JACKS
Line
(2):
0-0.775V
(MAX
0
VU)
required load impedance: more than 20 k ohms
Phone (1): 0—100 mV/8 ohms (MAX 0 VU)
INPUT
JACKS
Microphone
(2):
0.25
mV/2.4
k
ohms
required microphone impedance: 600 ohms
_
___|__Line
(2):
70
mV/100
k
ohms
SEMICONDUCTORS
Transistors:
61,
Diodes:
92
DIMENSIONS
404
(W)
x
470
(H)
x
250
(D)mm,
(15.9
x
18.5
x
9.8”)
cr
-
sells
ae
250(D)mim
With
Wood
Side
Plate
WEIGHT | 18.3 kg (40.4 Ibs.)
:__20.6 kg (45.5 Ibs.) : With Wood Side Plate
"POWER
REQUIREMENTS
___110/120/220/240V,
50/60
Hz
Switchable
* For improvement purposes, specification and design are change without notice.
