21

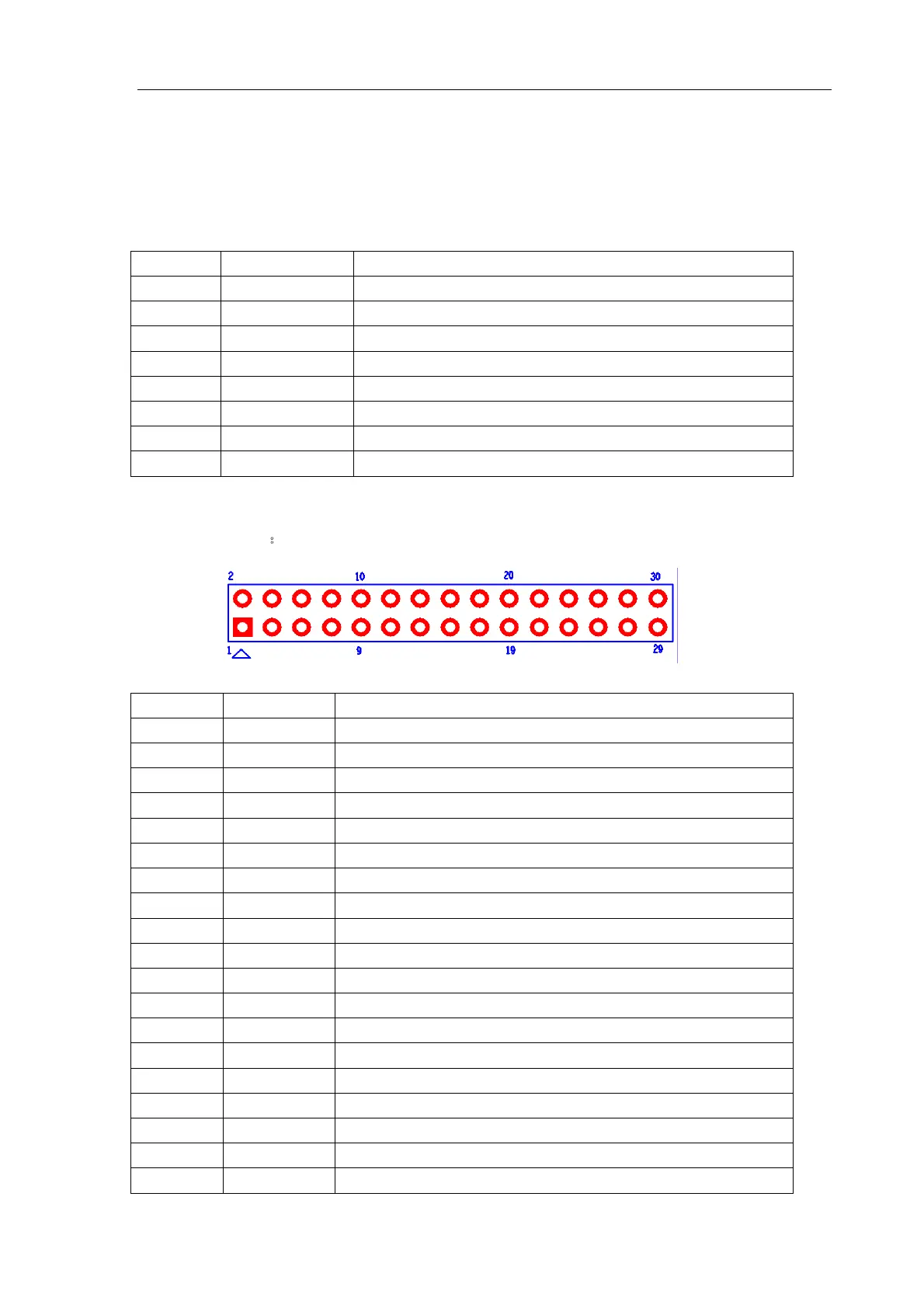

INTERFACE DEFINITION
All jack recognize the square pad as first pin.
J1 (8pin/2.0): DVD POWER(NC)
NO Definition Description
1 DVD_STB DVD STANDBY
2 DVD_AUTO DVD Control
3 DVD_IR DVD Remote receiver
4 +12V +12V DC power supply for DVD
5 GND Ground
6 GND Ground
7 DVD_5V +5V DC power supply for DVD
8 DVD_5V +5V DC power supply for DVD
J2 (2X15pin/2.0)：LVDS PORT
NO Definition Description
1 VCC Panel power
2 VCC Panel power
3 VCC Panel power
4 GND Ground
5 GND Ground
6 GND Ground
7 RXO0- RXO0-
8 RXO0+ RXO0+
9 RXO1- RXO1-
10 RXO1+ RXO1+
11 RXO2- RXO2-
12 RXO2+ RXO2+
13 GND Ground
14 GND Ground
15 RXOC- RXOC-
16 RXOC+ RXOC+
17 RXO3- RXO3-
18 RXO3+ RXO3+
19 RXE0- RXE0-
To Next Page
