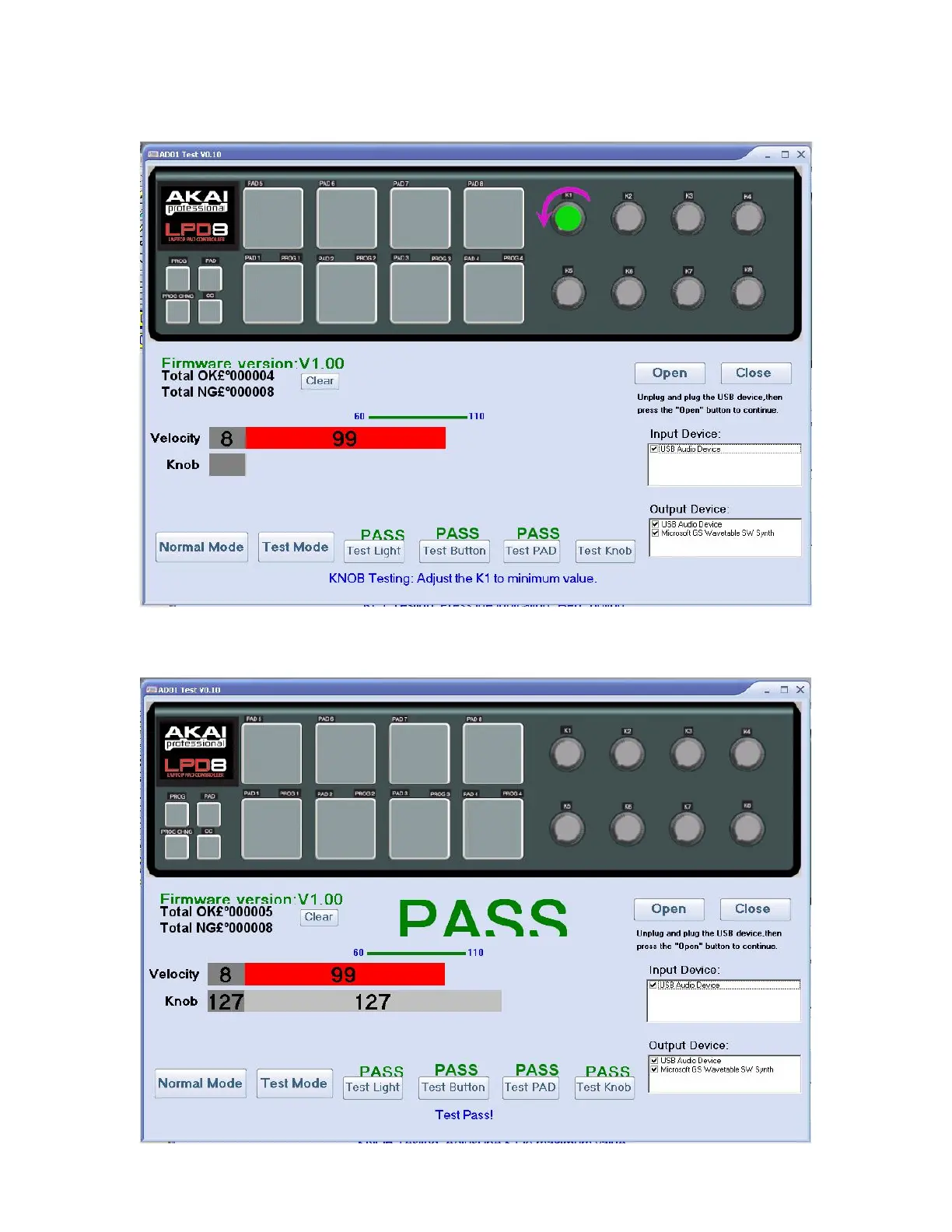

The Pad Test is next. There is a minimum and maximum allowable velocity in order to pass a
pad hit. These values can be edited. They default to a range of 60 to 110. The application will
indicate to the operator which pad to press.
The last test is the Knob Test. The operator should turn the indicated knob as indicated. Each
knob should be turned to the minimum position and then turned fully clockwise.
Confidential Akai Professional Service Manual
