Equipment Required:
o LPD8
o USB cable
o AD01 Test Application
Setup
o Attach USB cable between the LPD8 and PC.
o Start the AD01 Test Application
o Ensure the correct input and out devices are selected to properly communicate
with the LPD8
When connected the unit should automatically enter TEST mode. The operator can change
whether the unit is in Test mode or Normal mode by pressing the associated mode button.
Pressing these buttons is NOT required to run the test.
The application keeps a running total of units that pass the test and units that fail the test.
Pressing the [Clear] button will reset these counts. When the unit has completed the test, press
[Close] and then connect the next unit for test and then press [Open] to begin testing the next
unit.
The test will step through all the sub-tests automatically but the operator can jump to a selected
sub-test by pressing the sub-test button (such as [Test Light]).
Operation:

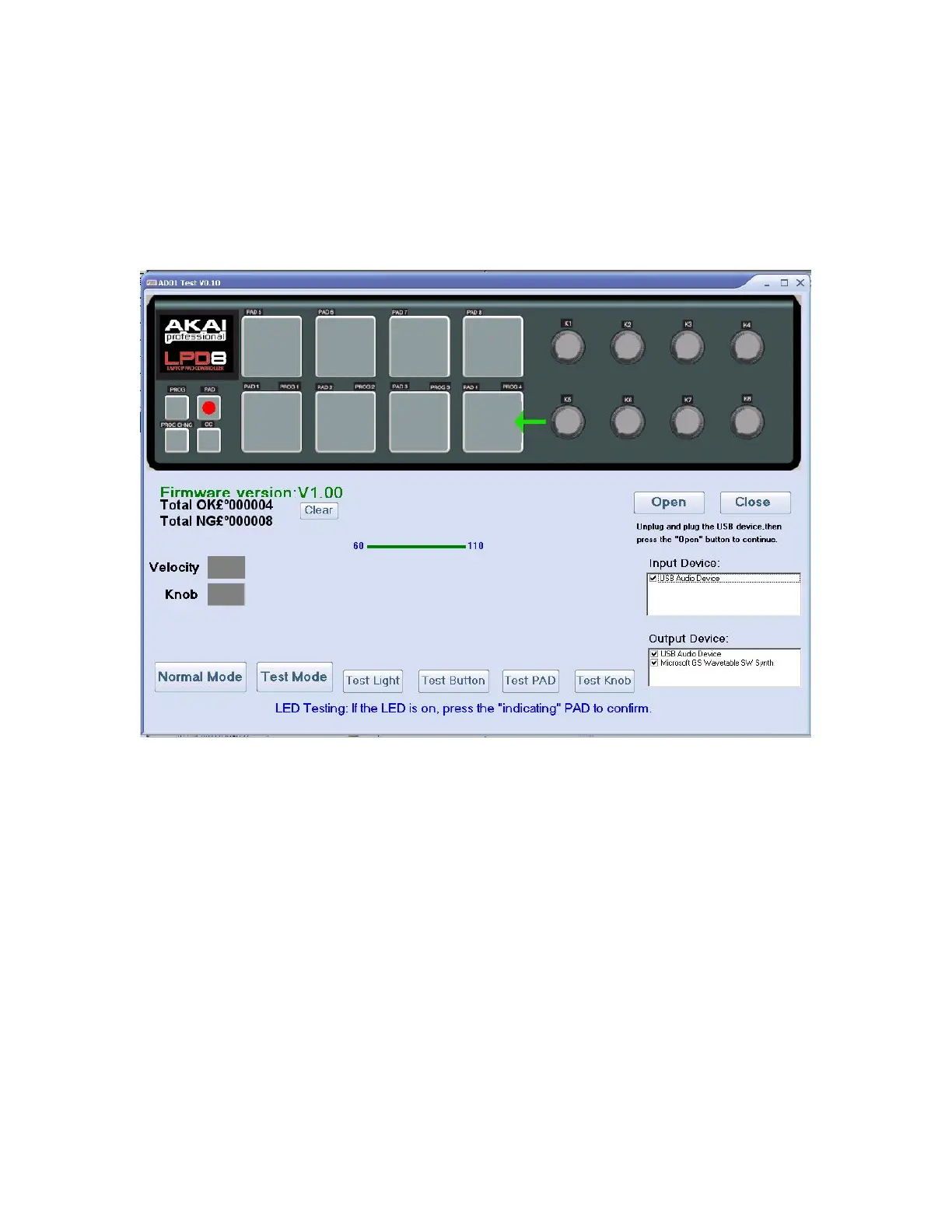

The LED Test is first. The operator will confirm that each LED lights as expected and no other
LED is on. When correct, the operator will press the indicated Pad 4 to progress through the sub-
test.
