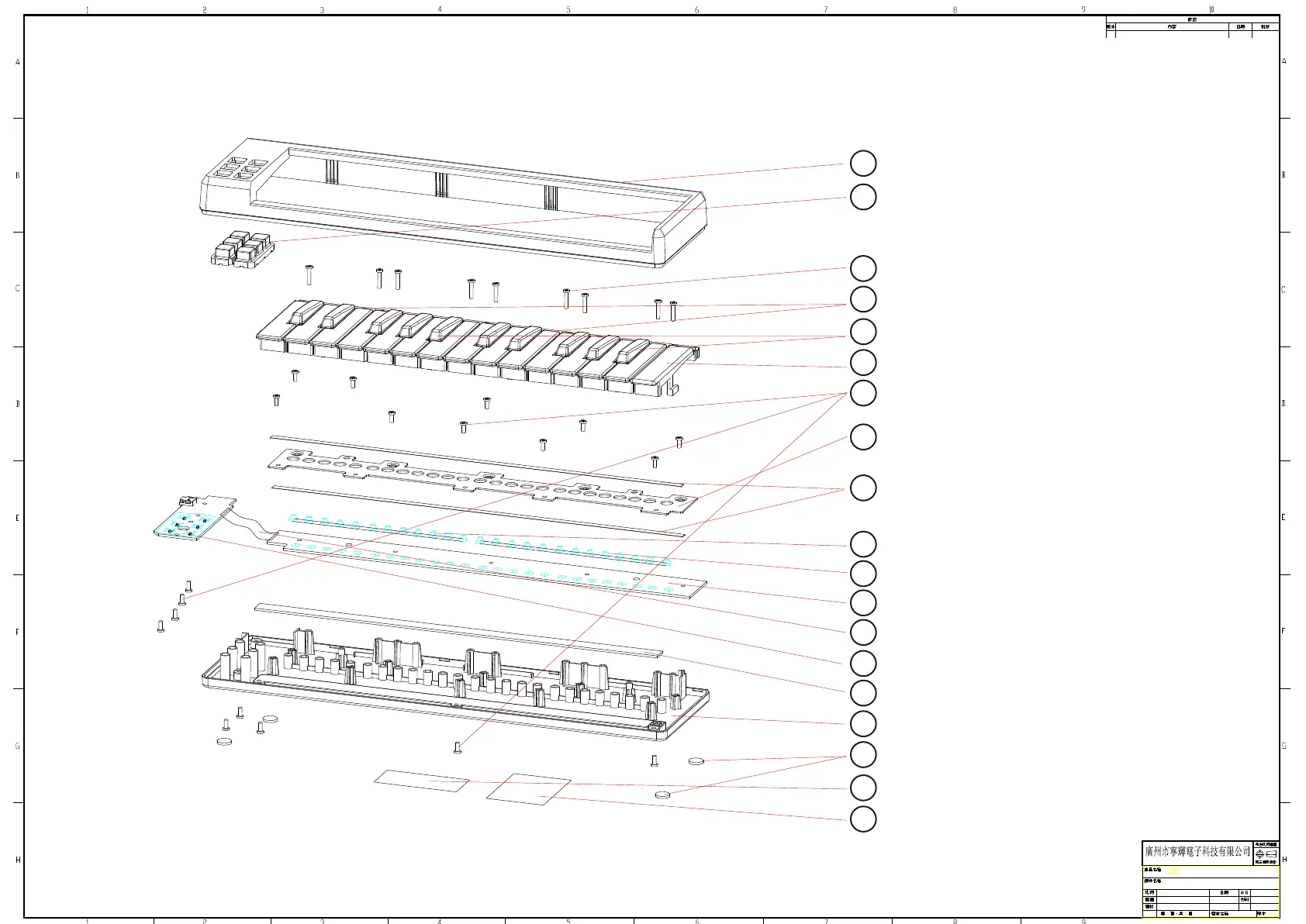

Akai LPK25 Service Manual

1
19pieces screws M2.5*7.0mm P/C black zinc;
2
Top plastic housing;
3
6keys rubber switch with electric carbon,middle
2 are black and other 4 are white and black
silkscreen on the top surface;
4
2pieces of 7 ;white mini key
7
9
2pieces fabric gasket 294*7*1mm;
12key rubber switch with 2 step electric carbon;
13
16pin P=1.0mm,D=100mm,FFC;
14
Mainboard PCB assembly;
10
Foam gasket 294*11*1.5mm;;
17
4pcs 2.0mm rubber feet;
5
2pieces of 5 black ; mini key
6
1piece of single white ; mini key
9pieces screws M2.5*12.0mm P/C black zinc;
1mm metal plate cover;
8
13key rubber switch with 2 step electric carbon;
11
Keyboard PCB assembly;
12
16
Bottom housing;
Compliance sticker label;
15
18
Serial number label;
19

Akai LPK25 Specifications

General

MIDI-keyboard number of keys	25 keys
Product color	Black
Interface	USB
Input voltage	5 V

Weight and Dimensions

Depth	97 mm
Width	339 mm
Height	33 mm
Weight	40 g
