Akai MPC 2500 Service Manual

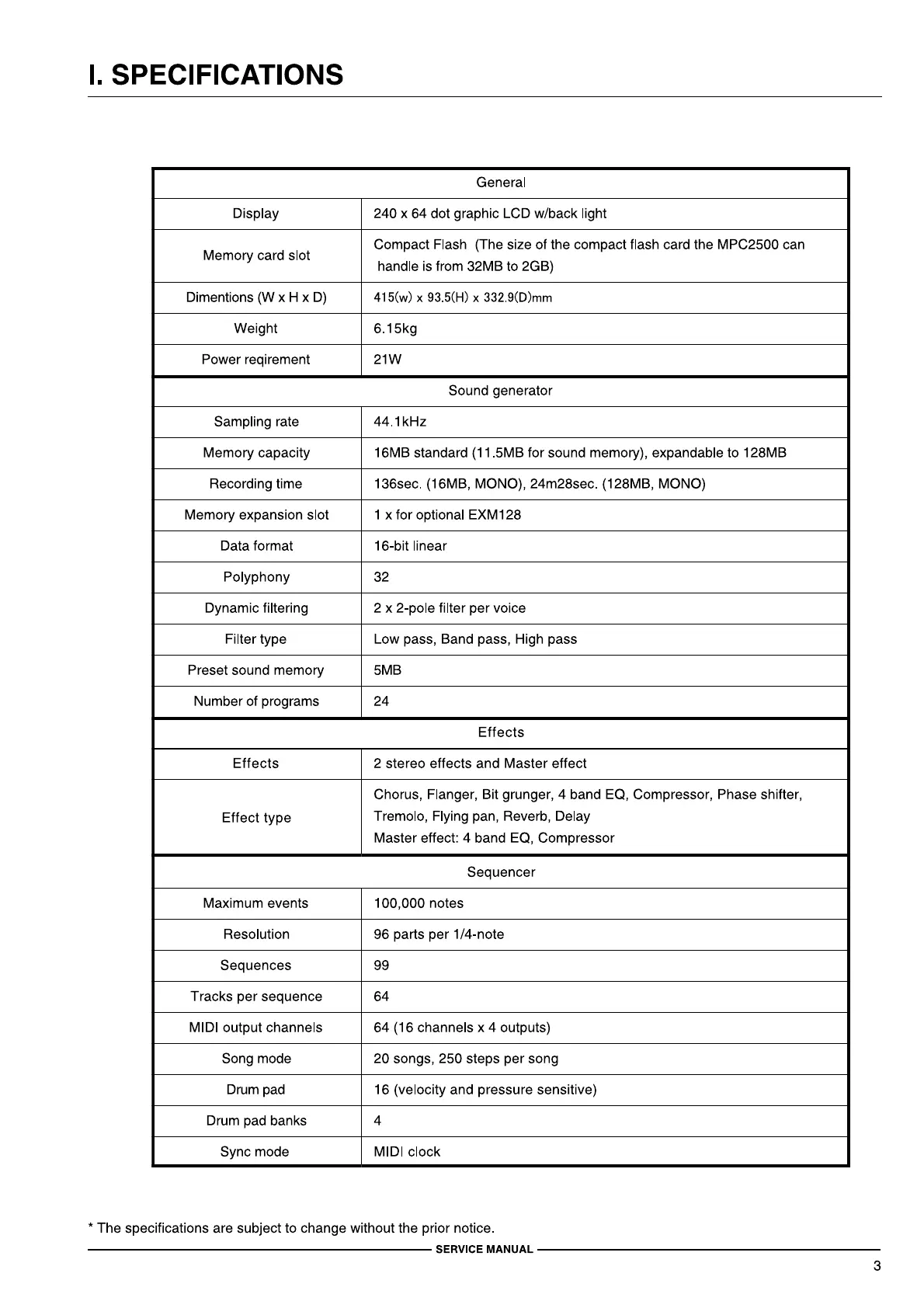

I. SPECIFICATIONS
General
Display 240 x 64 dot graphic LCD w/back light
Memory card slot
Compact Flash (The size of the compact flash card the MPC2500 can
handle
is from 32MB to 2GB)
Dimentions (W x H x
D)
415(w) x 93.5(H) x 332.9(D)mm
Weight 6.15kg
Power reqirement
21W
Sound generator
Sampling rate 44.1kHz
Memory capacity 16MB standard (11.5MB for sound memory), expandable to 128MB
Recording time 136sec. (16MB, MONO), 24m28sec. (128MB, MONO)
Memory expansion slot 1 x for optional EXM 128
Data format 16-bit linear
Polyphony
32
Dynamic filtering 2 x 2-pole filter per voice
Filter type Low pass, Band pass, High pass
Preset sound memory
5MB
Number of programs 24
Effects
Effects
2 stereo effects and Master effect
Chorus, Flanger, Bit grunger, 4 band
EQ, Compressor, Phase shifter,
Effect type
Tremolo, Flying pan, Reverb, Delay
Master effect: 4 band EQ, Compressor
Sequencer
Maximum events 100,000 notes
Resolution 96 parts per 1/4-note
Sequences 99
Tracks per sequence
64
MIDI output channels 64 (16 channels x 4 outputs)
Song mode 20 songs, 250 steps per song
Drum pad 16 (velocity and pressure sensitive)
Drum pad banks 4
Sync mode
MIDI clock
* The specifications are subject to change without the prior notice.
-------------------SERVICE MANUAL-------------------
3

Akai MPC 2500 Specifications

General

Polyphony	32 voices
Sampling Frequency	44.1 kHz
Sampling Bit Depth	16-bit
Maximum RAM	128 MB
Sequencer	Yes
Type	Sampler/Sequencer
Sequencer Resolution	96 ppq
Digital I/O	S/PDIF In/Out
Power Supply	Internal
Pads	16 velocity and pressure-sensitive
Storage	CompactFlash
Effects	4 internal effects processors
MIDI	2 In, 4 Out
Display	240 x 64 pixel LCD
Analog Outputs	8
Sample Memory	128 MB max
Audio Outputs	8
Audio Inputs	2
Weight	14.5 lbs
