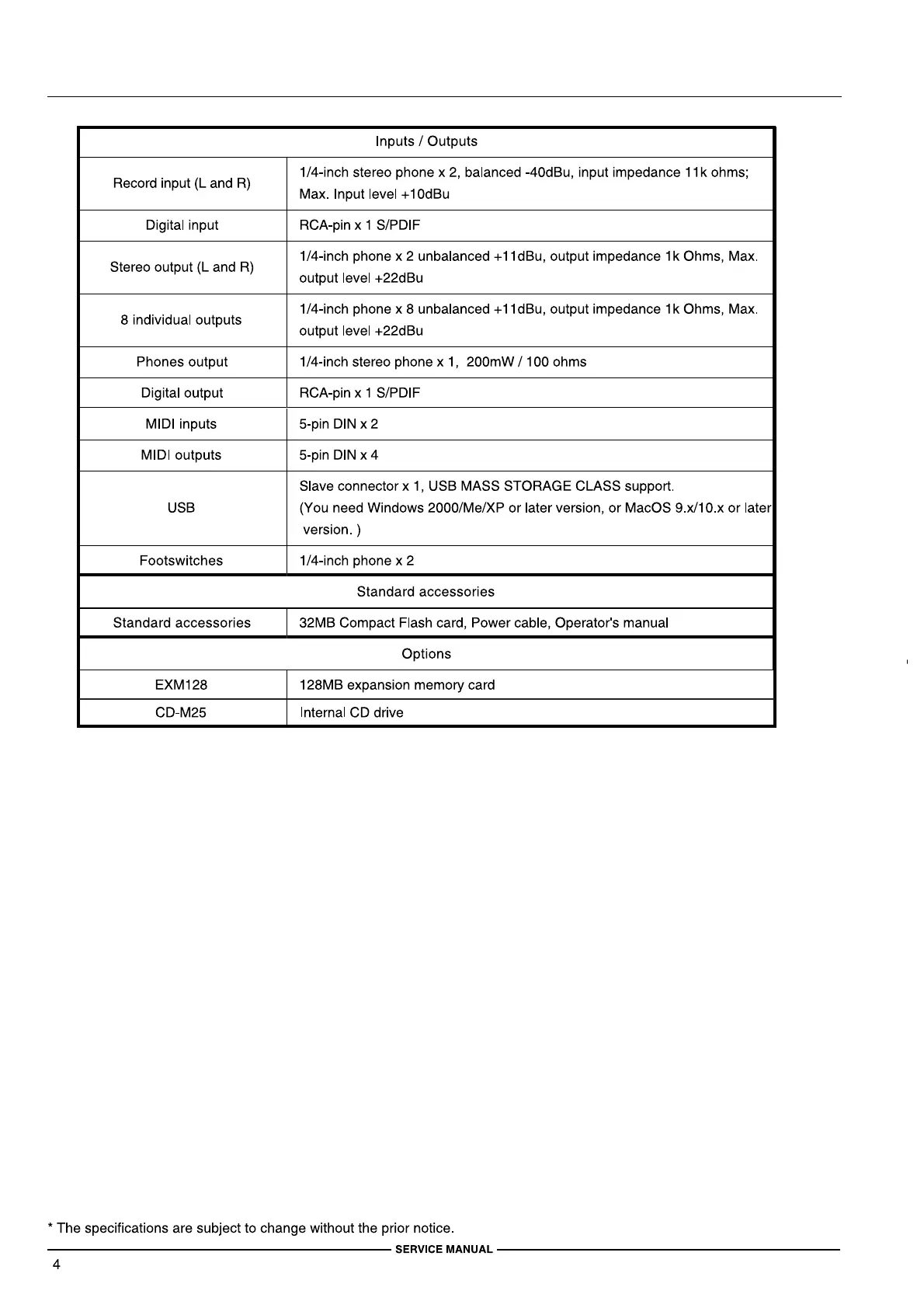

Akai MPC 2500 Service Manual

Inputs/ Outputs
Record input (L and
R)
1/4-inch stereo phone x 2, balanced -40dBu, input impedance 11 k ohms;
Max. Input level +10dBu
Digital input
RCA-pin x 1 S/PDIF
Stereo output (L and
R)
1/4-inch phone x 2 unbalanced + 11 dBu, output impedance 1 k Ohms, Max.
output level +22dBu
8 individual outputs
1/4-inch phone x 8 unbalanced +
11 dBu, output impedance 1 k Ohms, Max.
output level +22dBu
Phones output 1/4-inch stereo phone x
1, 200mW I 100 ohms
Digital output
RCA-pin x 1 S/PDIF
MIDI inputs 5-pin DIN x 2
MIDI outputs 5-pin DIN x 4
Slave connector x
1, USB MASS STORAGE CLASS support.
USB (You need Windows 2000/Me/XP or later version,
or MacOS 9.x/1 0.x or later
version.)
Footswitches
1/4-inch phone x 2
Standard accessories
Standard accessories 32MB Compact Flash card, Power cable, Operator's manual
Options
EXM128 128MB expansion memory card
CD-M25 Internal CD drive
* The specifications are subject to change without the prior notice.
-------------------SERVICE MANUAL-------------------
4

Akai MPC 2500 Specifications

General

Polyphony	32 voices
Sampling Frequency	44.1 kHz
Sampling Bit Depth	16-bit
Maximum RAM	128 MB
Sequencer	Yes
Type	Sampler/Sequencer
Sequencer Resolution	96 ppq
Digital I/O	S/PDIF In/Out
Power Supply	Internal
Pads	16 velocity and pressure-sensitive
Storage	CompactFlash
Effects	4 internal effects processors
MIDI	2 In, 4 Out
Display	240 x 64 pixel LCD
Analog Outputs	8
Sample Memory	128 MB max
Audio Outputs	8
Audio Inputs	2
Weight	14.5 lbs
