DISASSEMBLY PROCEDURES

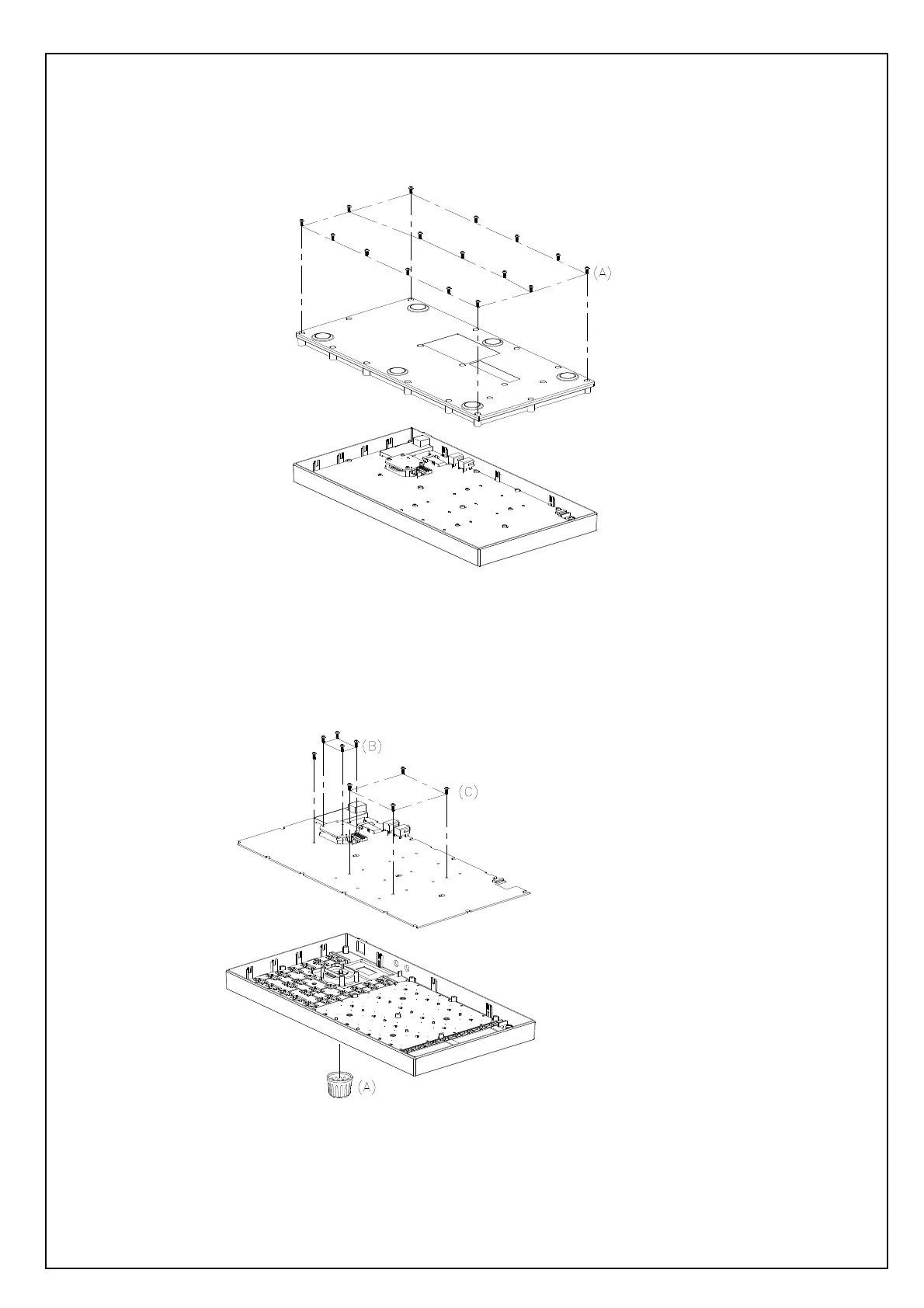

1. DISASSEMBLE THE BOTTOM PANEL.
(A) REMOVE 16 PCS SCREW FROM THE BOTTOM PANEL.
(Fig1)
2. DISASSEMBLE THE JOYSTICK PCB ASS’Y AND MAIN PCB ASS’Y.
(A)REMOVE 1 PC KNOB FROM THE TOP PANEL.
(B)REMOVE 4 PCS SCREW FROM THE ENCODER PCB ASS’Y.
(C)REMOVE 5 PCS SCREW FROM THE MAIN PCB ASS’Y.
(Fig2)
