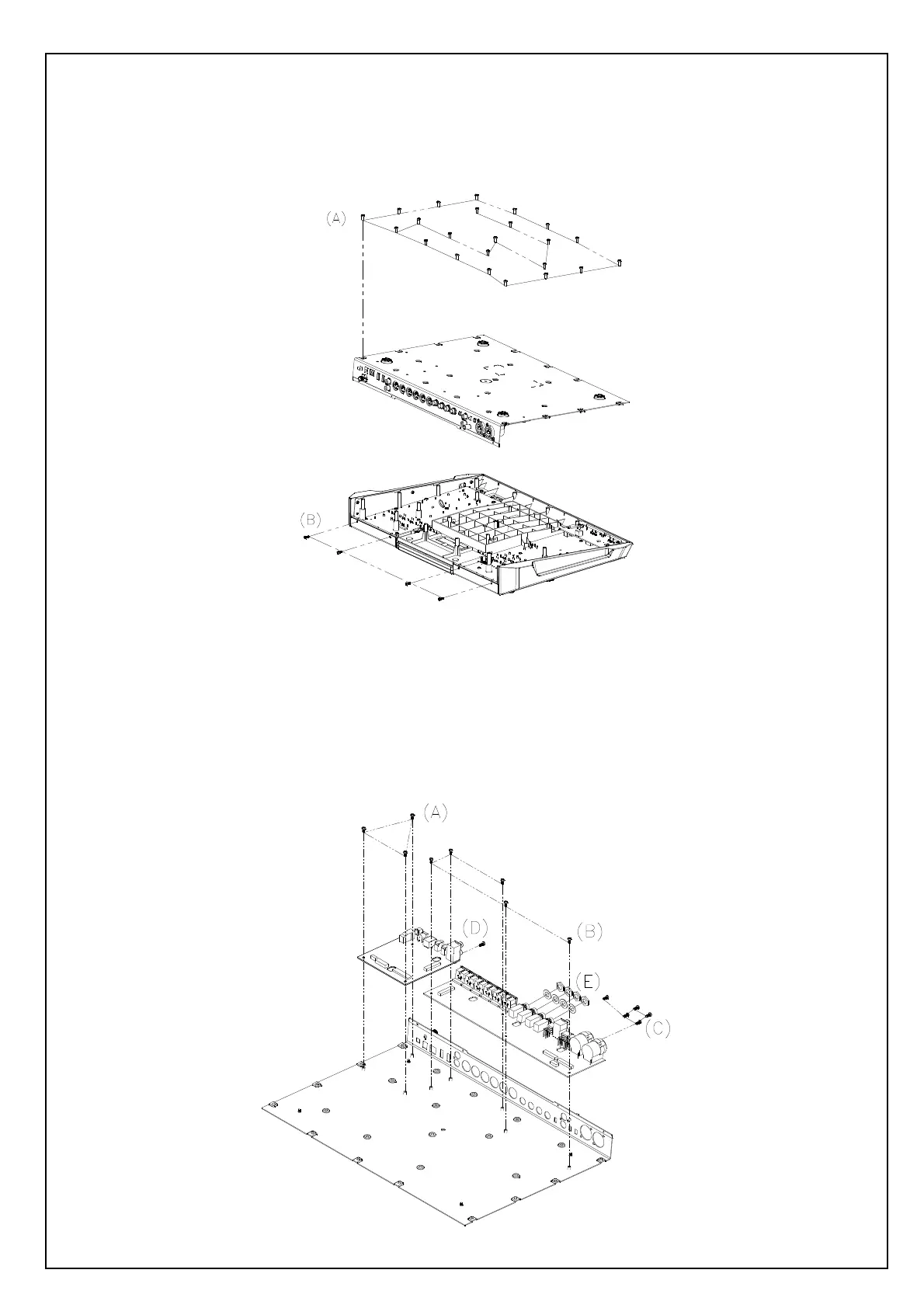

DISASSEMBLY PROCEDURES
1.
DISASSEMBLE THE BOTTOM CHASSIS.
(A)REMOVE 23 SCREWS FROM THE BOTTOM CHASSIS.
(B)REMOVE 4 SCREWS FROM THE TOP PANEL.
(Fig1)
2.
DISASSEMBLE THE
REAR PCB ASS’Y.
(A)REMOVE 3 SCREWS FROM THE
REAR DIGITAL PCB ASS’Y.
(B)REMOVE 5 SCREWS FROM THE
REAR ANALOG PCB ASS’Y.
(C) REMOVE 5 SCREWS FROM THE
REAR ANALOG PCB ASS’Y.
(D) REMOVE 1 SCREW FROM THE
REAR DIGITAL PCB ASS’Y.
(D) REMOVE 4 PCS NUT AND 4 PCS WASHER FROM THE
REAR ANALOG PCB ASS’Y.
(Fig2)
