Akai MPC1000

SERVICE MANUAL
4
* The specifications are subject to change without the prior notice.

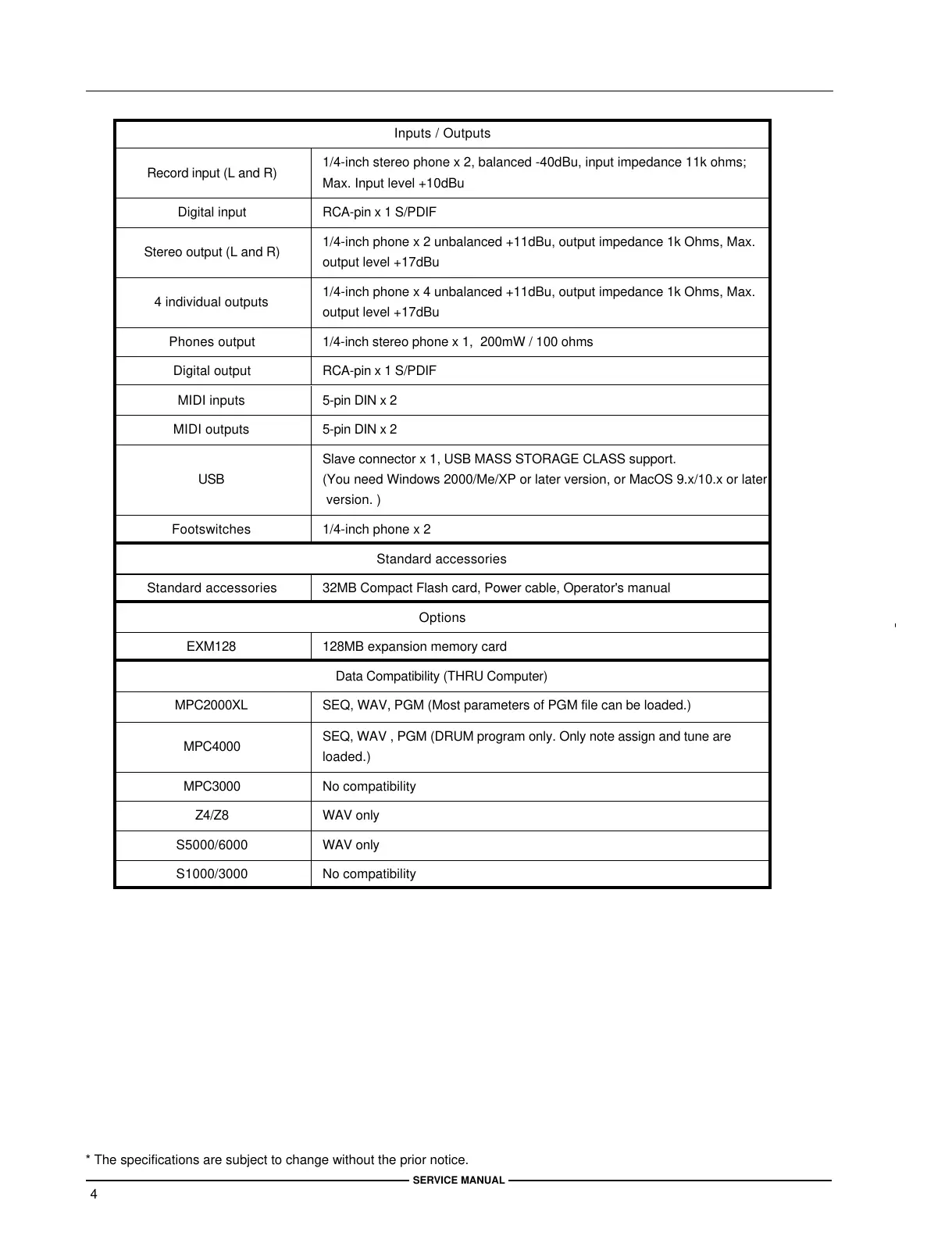

Inputs / Outputs
Record input (L and R)
1/4-inch stereo phone x 2, balanced -40dBu, input impedance 11k ohms;
Max. Input level +10dBu
Digital input
RCA-pin x 1 S/PDIF
Stereo output (L and R)
1/4-inch phone x 2 unbalanced +11dBu, output impedance 1k Ohms, Max.
output level +17dBu
4 individual outputs
1/4-inch phone x 4 unbalanced +11dBu, output impedance 1k Ohms, Max.
output level +17dBu
Phones output
1/4-inch stereo phone x 1, 200mW / 100 ohms
Digital output
RCA-pin x 1 S/PDIF
MIDI inputs
5-pin DIN x 2
MIDI outputs
5-pin DIN x 2
USB
Slave connector x 1, USB MASS STORAGE CLASS support.
(You need Windows 2000/Me/XP or later version, or MacOS 9.x/10.x or later
version. )
Footswitches
1/4-inch phone x 2
Standard accessories
Standard accessories
32MB Compact Flash card, Power cable, Operator's manual
Options
EXM128
128MB expansion memory card
Data Compatibility (THRU Computer)
MPC2000XL
SEQ, WAV, PGM (Most parameters of PGM file can be loaded.)
MPC4000
SEQ, WAV , PGM (DRUM program only. Only note assign and tune are
loaded.)
MPC3000
No compatibility
Z4/Z8
WAV only
S5000/6000
WAV only
S1000/3000
No compatibility
