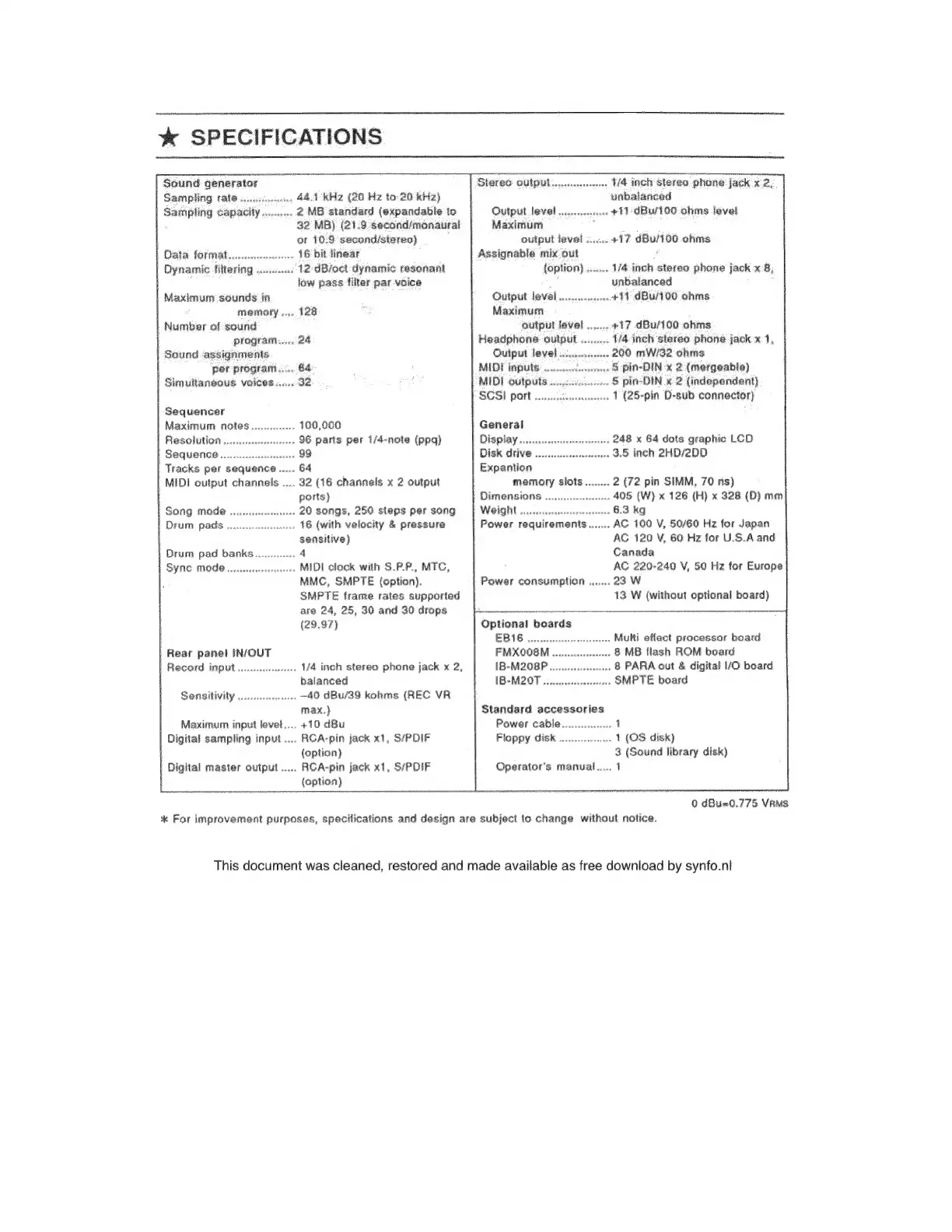

* SPECIFICATIONS
—
Sound generator Stereo output... 1/4 inch Stereo phone jack x 2;
Sampling tate usos 44.1 kHz (20 Hz to-20 kHz) unbalanced
Sampling capacity.......... 2 MB standard (expandable to Output level ..... «11: 0Bu/100 ohms level
32 MB) (21.9 secand/monaural Maximum - Wire
or 10:9 second/stereo) E output level 2... +17 dBu/i60 ohms
Data format... nn. 16 bit linear | Assignable mix out hi
Dynamic filtering ............‘12 dB/oct-dytramic resonant {option} ....... 1/4 inch stereo phone jack x 8,
i low pass filter par voice unbalanced l
Maximum sounds in i Output level... «+17 dBu/100 ohms
memory .... 128 i Maximum
| Number of sound I output level........ +17 dBu/100 ohms
program... 24 Headphone output ......... 14 inch stereo phone jack x 1,
Sound assignments Output level .. .200 mW/32 ohms
per program. 64 MIDI inputs... . 8 pin-DIN x 2 (mergeable) |
| Simultanéous volces......32: ej "MIDI outputs . . 8 pir-DIN x 2 (independent)
SCSI port ...... «o 1 (25-pin D-sub connector)
Sequencer : I
Maximum notes.............. 100,000 General
Resolution ..... . 96 parts per 1/4-note (ppq) Display ....... wns 248 x 64 dots graphic LCD
Sequence sss 99 Disk drive ^ 3,5 inch 2HD/2DD
| Tracks per sequence ..... 64 Expantion
| MIDI output channels .... 32 (16 channels x 2 output memory slots ........ 2 (72 pin SIMM, 70 ns}
ports) Dimensions LL 405 (W) x 126 (H) x 328 (D) mm
Song mode esses 20 songs, 250 steps per song Weight .................. . 6.3 kg
Drum pads .... .. 16 (with velocity & pressure Power requirements... AC 100 V, 50/60 Hz for Japan
sensitive) AC 120 V, 60 Hz for U.S.A and
Drum pad banks............. 4 Canada
Sync moda...................... MIDI clock with S.P.P., MTC, AC 220-240 V, 50 Hz for Europe
MMC, SMPTE (option). Power consumption ....... 23 W
SMPTE frame rates supported 13 W (without optional board)
are 24, 25, 30 and 30 drops
(29.97) Optional boards
| EB16 nennen, Multi effect processor board
| Rear panel IN/OUT FMX008M . 8 MB flash ROM board
Record input ................... 1⁄4 inch stereo phone jack x 2, IB-M208P. . 8 PARA out & digital /O board
balanced IB-M20T SMPTE board
Sensitivity ................... —40 dBu/39 kohms (REC VR
max.) Standard accessories
Maximum input level... 410 dBu Power cable
Digital sampling input .... RCA-pin jack x1, S/PDIF Floppy disk ................. 1 (OS disk)
| (option) 3 (Sound library disk)
Digital master output ..... ACA-pin jack x1, S/PDIF Operator's manual
(option)
0 dBu=0,775 VRMS
* For improvement purposes, specifications and design are subject to change without notice.
This document was cleaned, restored and made available as free download by synfo.nl

Akai MPC2000 Specifications

General

Type	Sampler/Sequencer
Polyphony	32 voices
Sampling Rate	44.1 kHz
Bit Depth	16-bit
Memory	2 MB (expandable to 32 MB)
Pads	16 velocity-sensitive pads
Sequencer	Yes
Sequencer Resolution	96 PPQN
MIDI	In/Out/Thru
Display	Backlit LCD
Storage	3.5" floppy disk drive
Effects	No built-in effects
Outputs	8 individual outputs
Inputs	2 inputs
Audio Inputs	2 (L/R)
Power Supply	Internal
