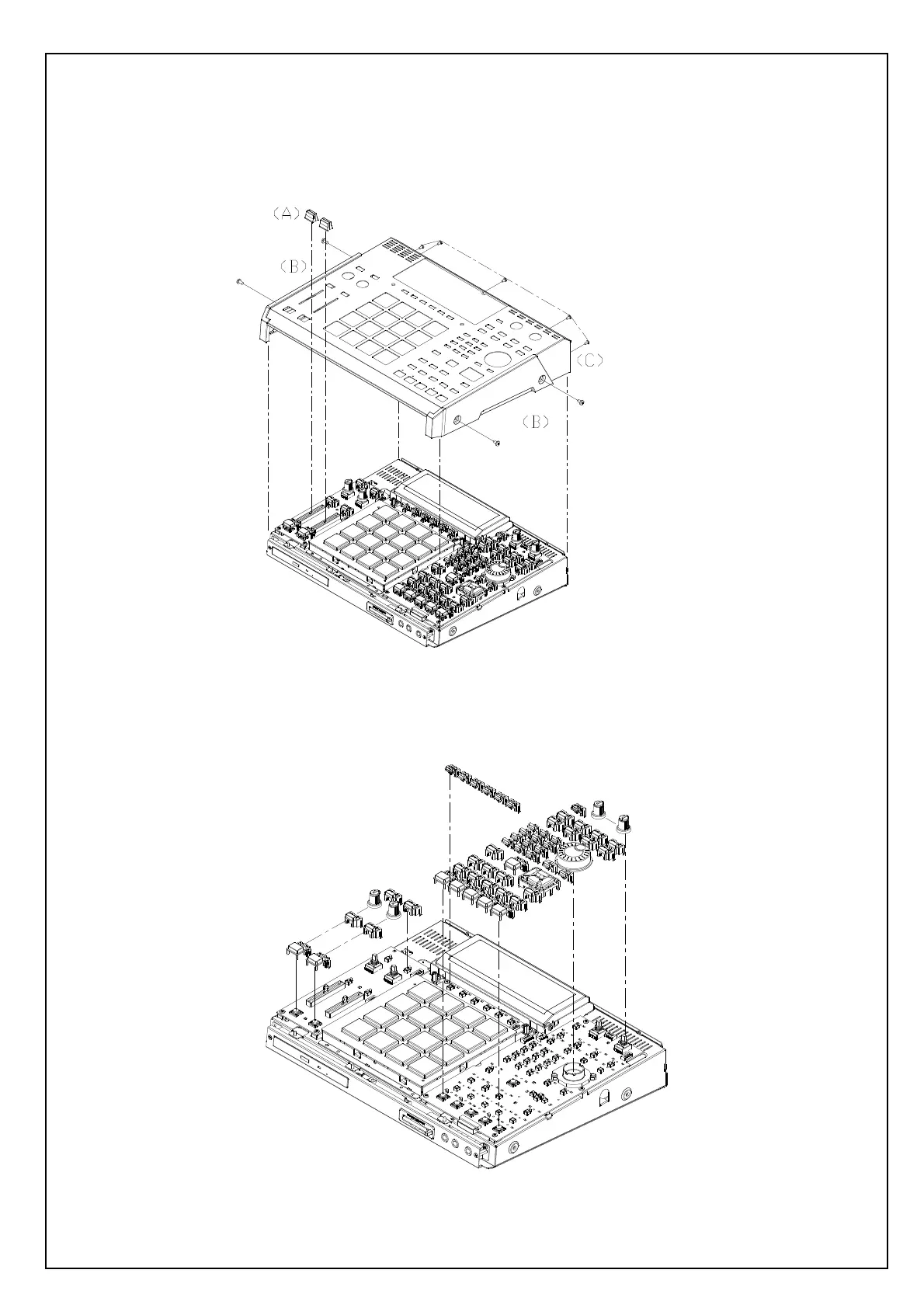

DISASSEMBLY PROCEDURES
1. DISASSEMBLE THE PANEL TOP .
(A) REMOVE 2 PCS KNOB FROM PANEL TOP .
(B) REMOVE 4 PCS SCREWS FROM PANEL SIDE (R) (L)
(C) REMOVE 5 PCS SCREWS FROM PANEL TOP .
(Fig1)
2.DISASSEMBLE THE KNOB VOL PART
BUTTON PUSH .
(Fig 2)
