YOUR NEW TV

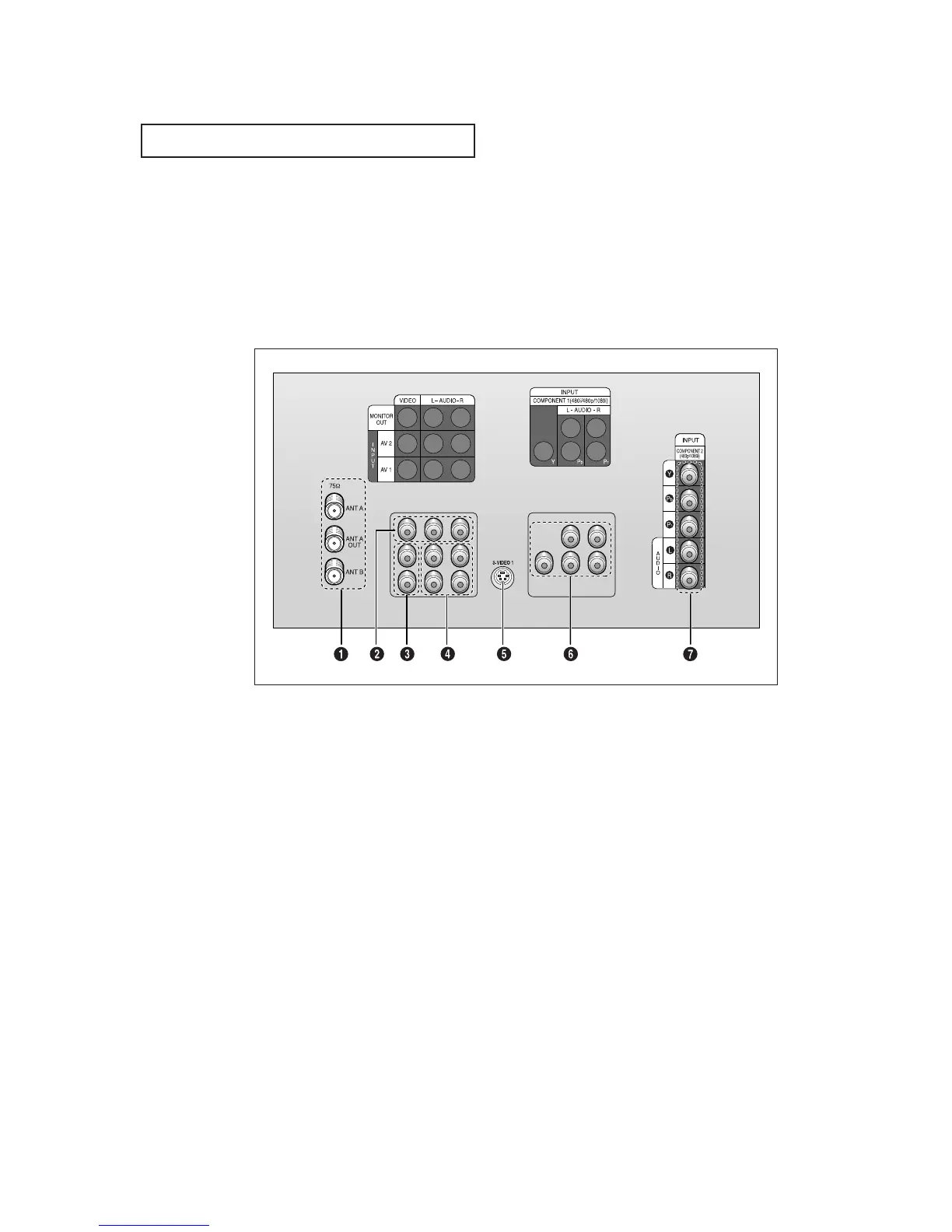

Rear Panel Jacks
Use the rear panel jacks to connect an A/V component that will be connected continu-
ously, such as a VCR or a DVD player.
Because there are two sets of input jacks, you can connect two different A/V components
(i.e., a VCR and a DVD, 2 VCRs, etc.).
For more information on connecting equipment, see pages 10 ~17.
Œ
ANTENNA terminals
Two independent cables or antennas can be
connected to these terminals. Use ANT-A and
ANT-B terminals to receive a signal from
VHF/UHF antennas or your cable system. Use
the ANT-A OUT terminal to send the signal being
received by the ANT-A terminal out to another
component (such as a Cable Set Top Box). The
PIP channel can be received only when a signal
source is connected to ANT-A.
´
AUDIO-VIDEO MONITOR
OUTPUT jacks
Connect to the audio/video input jacks of a
recording VCR.
Note: The monitor out does not operate in DVD
or DTV mode.
ˇ
VIDEO INPUT jacks
Connect to the video output jacks of VCRs, DVD
players and similar devices (Two sets are avail-
able: Video1 and Video2).
¨
AUDIO INPUT jacks
Connect to the audio output jacks of VCRs, DVD
players and similar devices.
ˆ
S-VIDEO INPUT jack
Connect to an S-VHS VCR or DVD player.
Ø
COMPONENT 1(480i, 480p,
1080i) AUDIO/VIDEO INPUT
jacks
Connect a source that outputs 480i/480p/1080i
Y,P
B
and P
R
signals, such as a DVD (or DTV Set-
Top Box.
∏
COMPONENT 2(480p, 1080i)
AUDIO/VIDEO INPUT jacks
Connect a source that outputs 480p/1080i Y, P
B
and P
R
signals, such as a DTV Set-Top Box.
