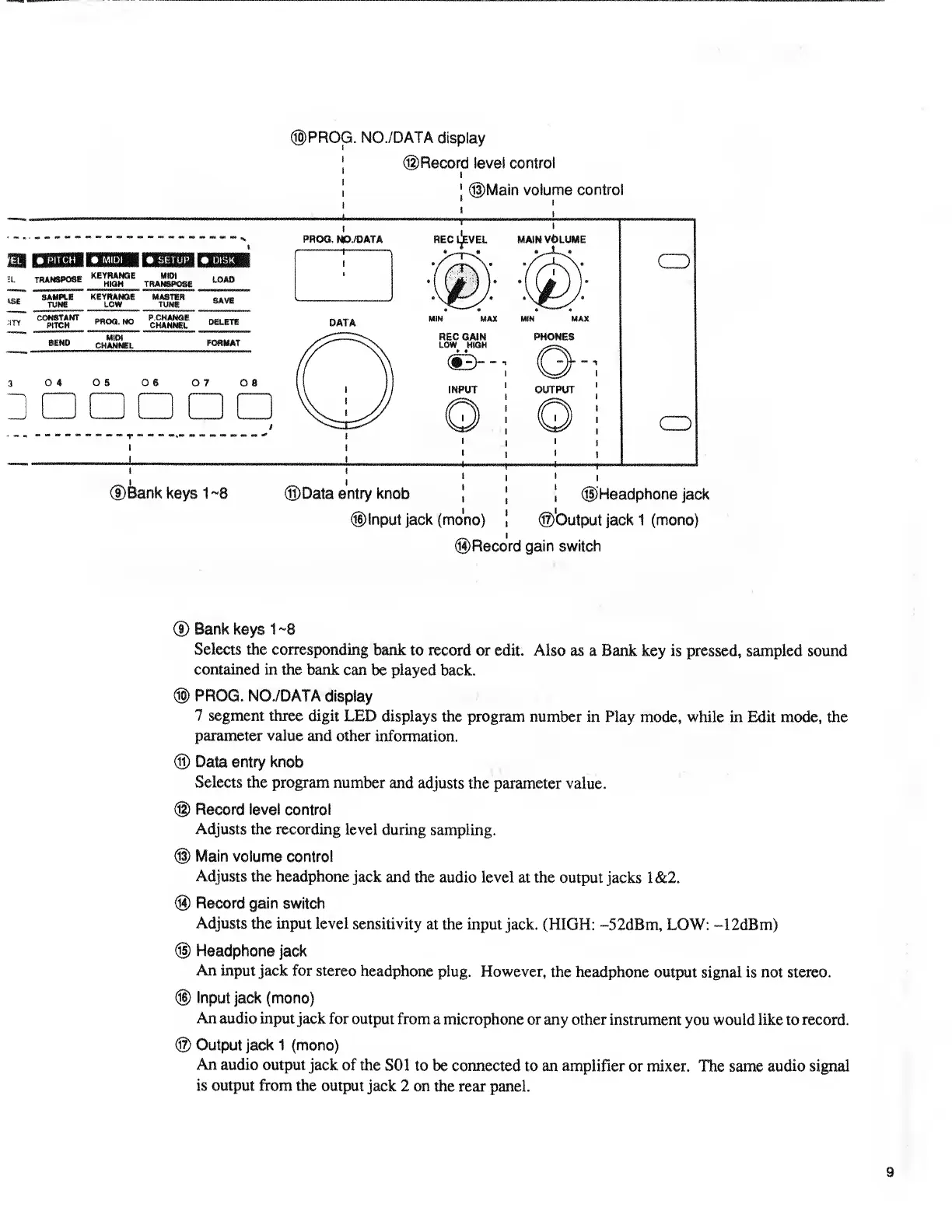

Akai S01

©PROG. NO./DATA
display
J
©Record level control
1
i
!
! ©Main volume control
i
PROG.
N0./DATA BEC LEVEL
HI
=1
tSf
;ity
PITCH
I •
MIDI
I* strup
TWWW
H,aH TRANSPOSE
MHMA
TUNB
KEYRAHOII
LOW
masto*
TUN*
-r
MAIN
VOLUME
CONSTANT
PITCH
P.CHANGE
CHANNgt
DATA
MIDI
CHANHB.
04
S 06 07
08
REC GAIN
LOW HIGH
(13-
INPUT
MAX MM MAX
PHONES
OUTPUT
®Bank keys
1
~8
©Data entry
knob
©Input jack (mono)
,
©Headphone
jack
©Output jack 1 (mono)
©Record gain switch
(D
Bank keys 1
~8
Selects the corresponding
bank
to record or edit. Also
as a Bank key is
pressed, sampled sound
contained
in the bank can
be played back.
©
PROG. NO./DATA
display
7
segment three
digit LED displays
the program number
in Play mode, while in Edit mode, the
parameter value
and other
information.
®
Data entry knob
Selects
the program number
and
adjusts the parameter value.
©
Record level control
Adjusts
the recording
level during
sampling.
©
Main volume
control
Adjusts the
headphone
jack and the
audio
level
at the
output jacks 1&2.
®
Record
gain switch
Adjusts the
input level sensitivity
at the
input
jack. (HIGH:
-52dBm, LOW: -12dBm)
©
Headphone
jack
An input
jack
for
stereo
headphone
plug. However,
the headphone output
signal
is not stereo.
©
Input jack
(mono)
An audio input
jack for
output from
a microphone or
any other instrument
you would
like
to
record.
@
Output jack 1 (mono)
An
audio output
jack of the
SOI to be connected
to an amplifier
or mixer. The same
audio signal
is output from the
output
jack 2 on the rear
panel.
