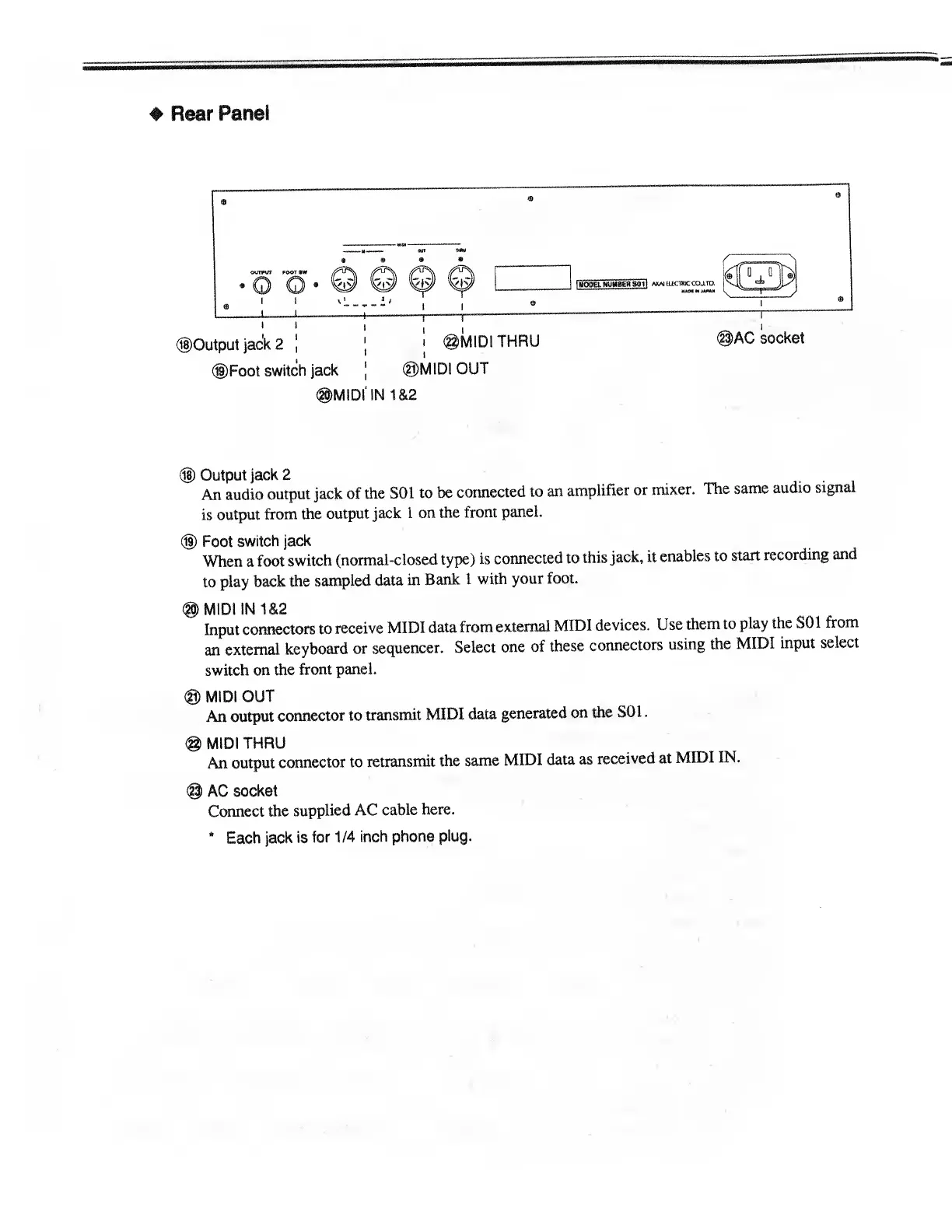

Akai S01

#
Rear
Panel
•
• • •
©Output
jack
2
©Foot
switch jack
@MIDI
THRU
(g)MIDIOUT
#MIDl'lN1&2
AKAtBiCWrCOlTD.
€3>
@AC
socket
©
Output jack
2
.
An
audio
output
jack
of the
SOI
to be
connected
to
an
amplifier
or
mixer.
The same
audio
signal
is output
from
the
output
jack
1 on
the
front
panel.
©
Foot
switch jack
When a
foot
switch
(normal-closed
type)
is
connected
to
this
jack,
it
enables to
start
recording
and
to
play
back
the
sampled
data
in
Bank 1
with
your
foot.
®MIDIIN1&2
Input
connectors
to
receive
MIDI
data
from
external
MIDI
devices.
Use
them
to
play
the
SOI
from
an
external
keyboard or
sequencer.
Select
one
of these
connectors
using
the
MIDI
input
select
switch on the
front
panel.
®
MIDI OUT
An
output
connector
to
transmit
MIDI
data
generated
on
the
SOI
.
(g)
MIDI
THRU
An
output
connector
to
retransmit
the
same
MIDI
data
as
received
at
MIDI
IN.
@
AC
socket
Connect
the
supplied
AC
cable
here.
*
Each
jack
is
for
1/4
inch phone
plug.
