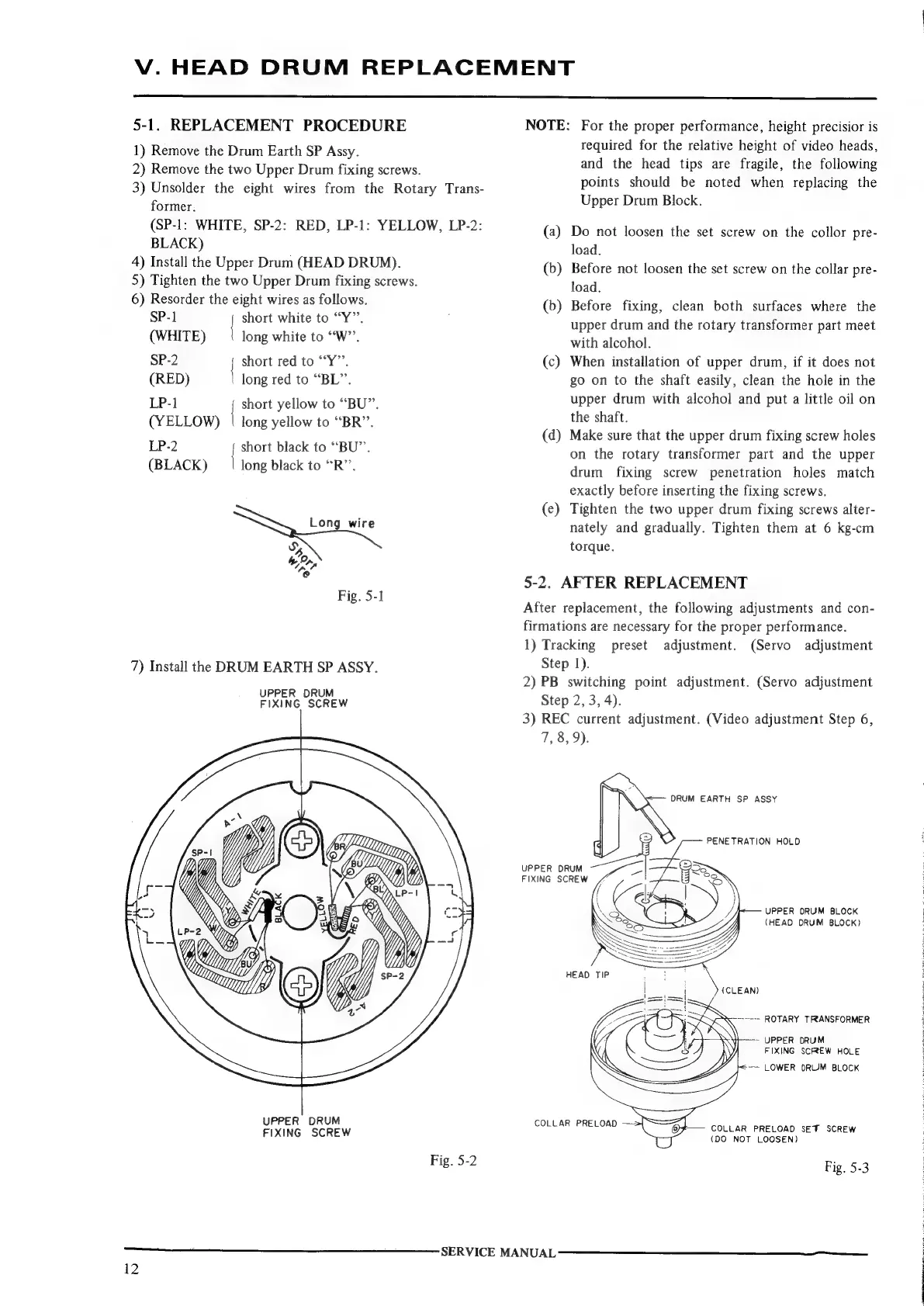

V.
HEAD
DRUM
REPLACEMENT
5-1.
REPLACEMENT
PROCEDURE
1)
Remove
the
Drum
Earth
SP
Assy.
2)
Remove
the
two
Upper
Drum
fixing
screws.
3)
Unsolder
the
eight
wires
from
the
Rotary
Trans-
former.
(SP-1:
WHITE,
SP-2:
RED,
LP-1:
YELLOW,
LP-2:
BLACK)
4)
Install
the
Upper
Drum
(HEAD
DRUM).
5)
Tighten
the
two
Upper
Drum
fixing
screws.
6)
Resorder
the
eight
wires
as
follows.
SP-1
short
white
to
“Y”’.
(WHITE)
long
white
to
““W”’,
SP-2
short
red
to
‘““Y”’,
(RED)
long
red
to
“BL”.
LP-1
short
yellow
to
“BU”.
(YELLOW)
|
long
yellow
to
“BR”.
LP-2
short
black
to
“BU”.
(BLACK)
long
black
to
“R”’.
Long
wire
S
%
ree
Fig.
5-1
7)
Install
the
DRUM
EARTH
SP
ASSY.
UPPER_
DRUM
FIXING
SCREW
UPPER
DRUM
FIXING
SCREW
Fig.
5-2
n=
SERVICE
MANUAL
12
NOTE:
For
the
proper
performance,
height
precisior
is
required
for
the
relative
height
of
video
heads,
and
the
head
tips
are
fragile,
the
following
points
should
be
noted
when
replacing
the
Upper
Drum
Block.
(a)
Do
not
loosen
the
set
screw
on
the
collor
pre-
load.
(b)
Before
not
loosen
the
set
screw
on
the
collar
pre-
load.
(b)
Before
fixing,
clean
both
surfaces
where
the
upper
drum
and
the
rotary
transformer
part
meet
with
alcohol.
(c)
When
installation
of
upper
drum,
if
it
does
not
go
on
to
the
shaft
easily,
clean
the
hole
in
the
upper
drum
with
alcohol
and
put
a
little
oil
on
the
shaft.
(d)
Make
sure
that
the
upper
drum
fixing
screw
holes
on
the
rotary
transformer
part
and
the
upper
drum
fixing
screw
penetration
holes
match
exactly
before
inserting
the
fixing
screws.
Tighten
the
two
upper
drum
fixing
screws
alter-
nately
and
gradually.
Tighten
them
at
6
kg-cm
torque.
(e
5-2.
AFTER
REPLACEMENT
After
replacement,
the
following
adjustments
and
con-
firmations
are
necessary
for
the
proper
performance.
1)
Tracking
preset
adjustment.
(Servo
adjustment
Step
1).
2)
PB
switching
point
adjustment.
(Servo
adjustment
Step
2, 3,
4).
3)
REC
current
adjustment.
(Video
adjustment
Step
6,
7,
8,
9).
DRUM
EARTH
SP
ASSY
ie
PENETRATION
HOLD
fe
"
:
B=
(
|
UPPER
DRUM
FIXING
SCREW
UPPER
ORUM
BLOCK
{HEAD
DRUM
BLOCK)
HEAD
TIP
FIXING
SCREW
HOLE
——
LOWER
0RUM
BLOCK
COLLAR
PRELOAD
SET
SCREW
(DO
NOT
LOOSEN)
Fig,
5.3
