HOW TO MOUNT THE ROTARY PLATE
When mounting the rotary plate on the drum motor, be NOTE:
sure to align the mark (Small round hole) on the rotary
plate (a) with the collar preload set screw (d) on the
collar preload (c) as illustrated above.
Do not attempt to remove the collar preload (c)
on the head assy. If removed, a special jig is
needed for reinstallation, which almost always
requires replacement of the drum assy.
ROTARY PLATE (a)
MARK (SMALL ROUND HOLE)
COLLAR PRELOAD (c)
CH2 VIDEO HEAD
(RED-BLU WIRE SIDE)
COLLAR PRELOAD
SET SCREW (d)
> ly
‘ . = UPPER DRUM
— eee
SO ana nn
CHI VIDEO HEAD
(BRN- BLU WIRE SIDE)

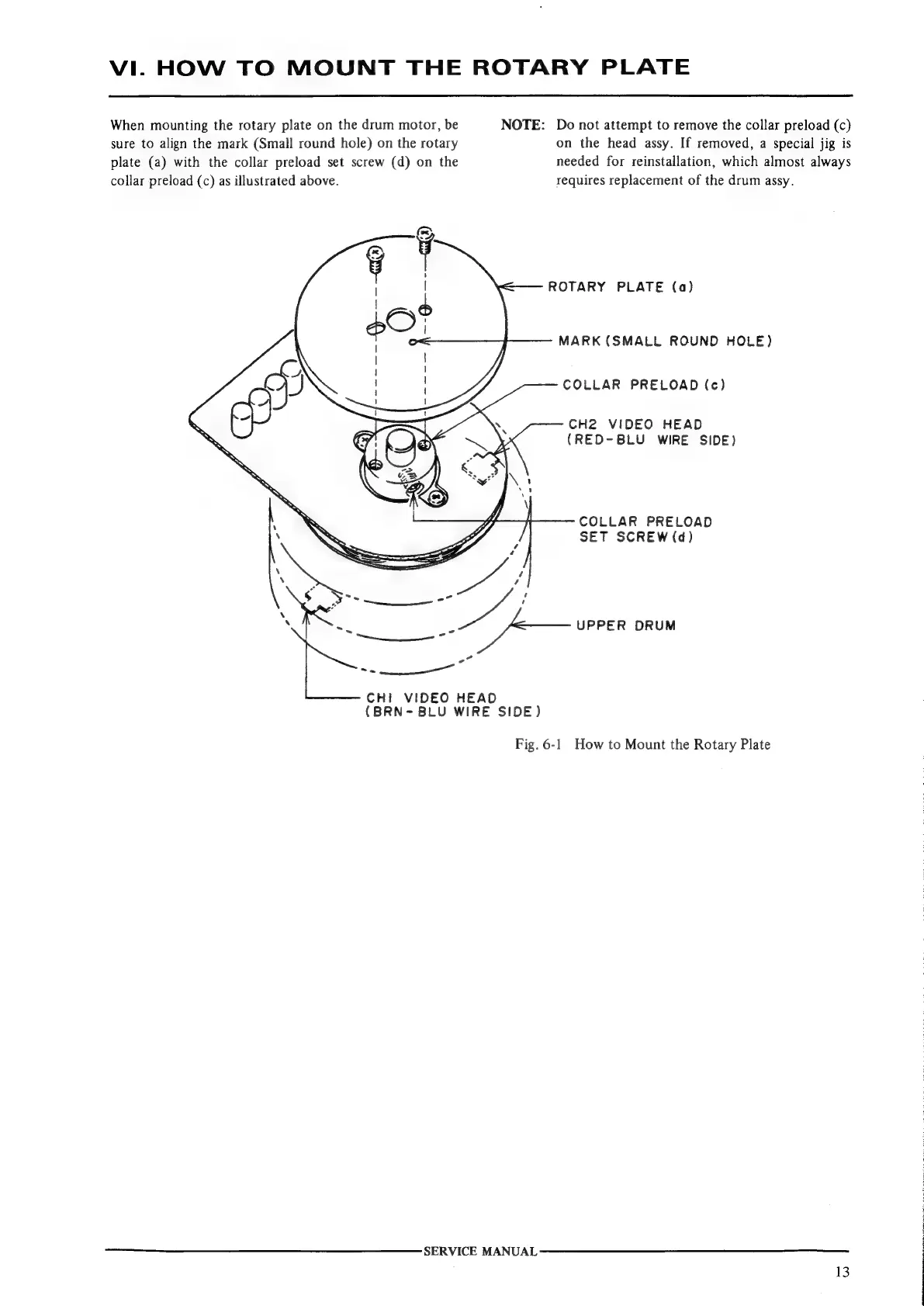

Fig. 6-1 How to Mount the Rotary Plate
