Akai VS-X9EGN

= =
lll.
PRINCIPAL
PARTS
LOCATION
BO 2 ON OO OR OOO S
SW POWER PC BOARD
PRE AMP PC BOARD
IMPEDANCE ROLLER
FULL TRACK ERASE HEAD
SUPPLY TAPE GUIDE
HEAD DRUM BLOCK
LOADING LEADER (L)
TENSION ARM
SYNCHRO BELT
SUPPLY REEL TABLE
TAKE UP GEAR BLOCK
12.
13.
14,
15.
16.
17.
18.
19.
20.
21.
22.

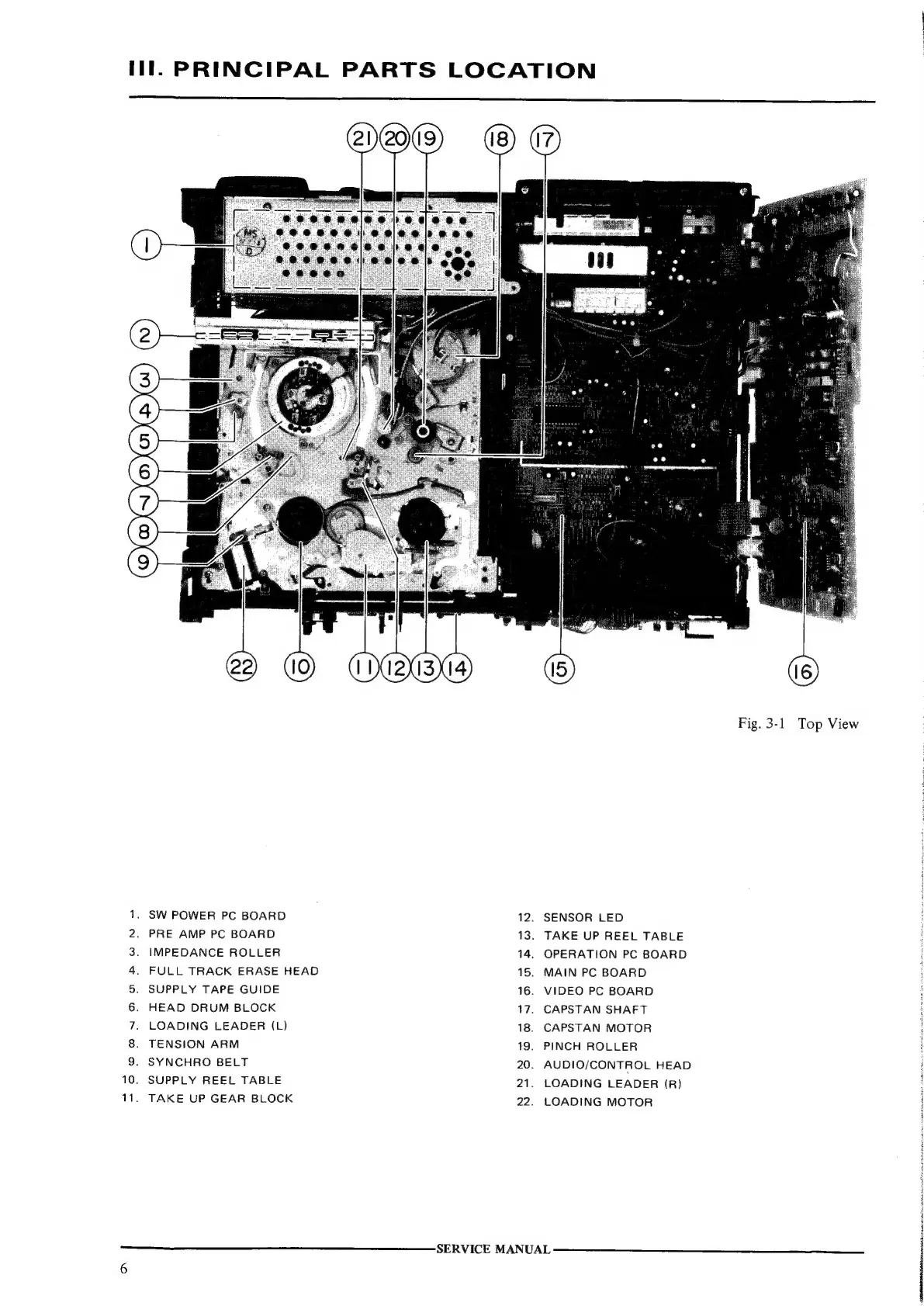

Fig. 3-1 Top View
SENSOR LED
TAKE UP REEL TABLE
OPERATION PC BOARD
MAIN PC BOARD
VIDEO PC BOARD
CAPSTAN SHAFT
CAPSTAN MOTOR
PINCH ROLLER
AUDIO/CONTROL HEAD
LOADING LEADER (R}
LOADING MOTOR
SERVICE MANUAL —————__— $$$ _____________
