Door Control Unit User Manual
Updated until firmware 404p - 11 -

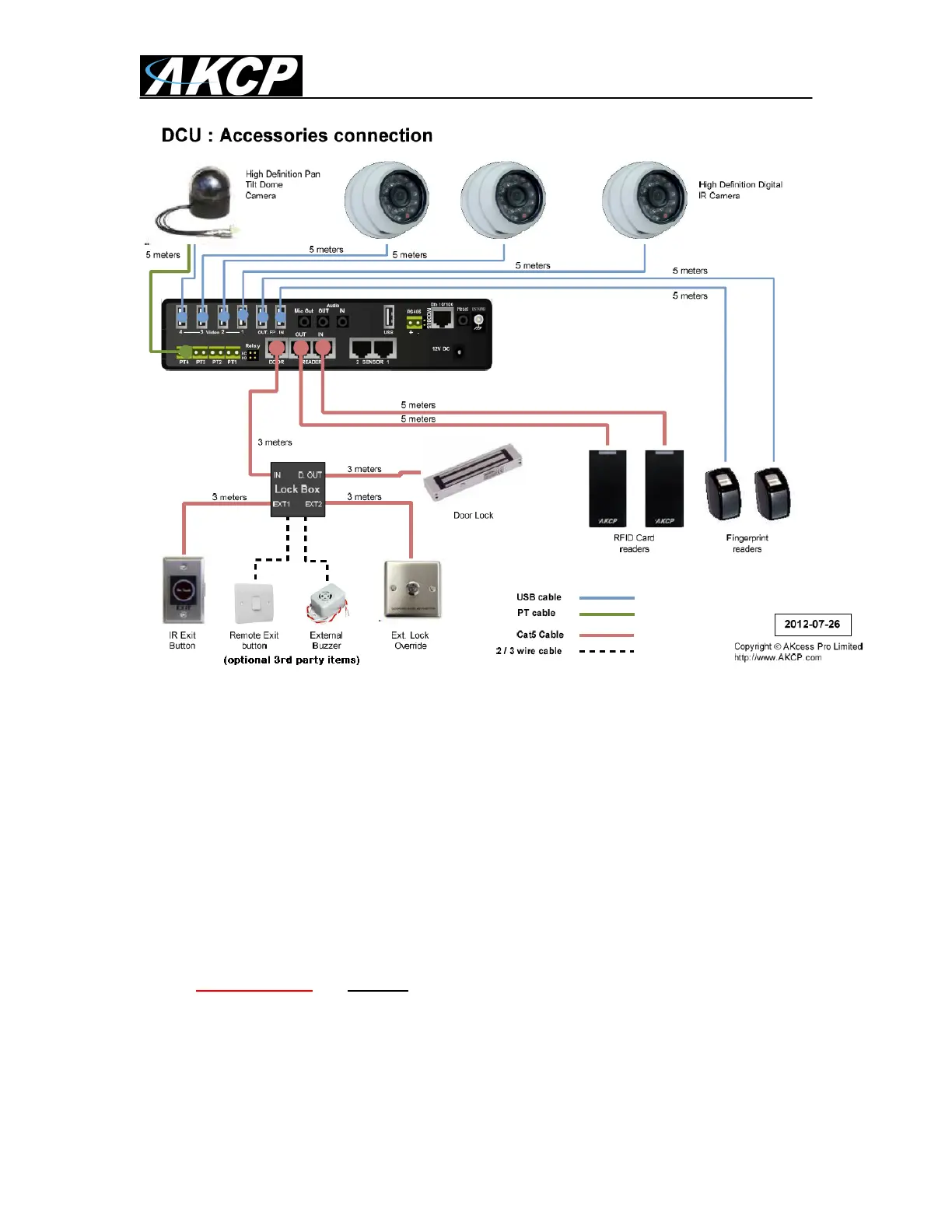

DCU Wiring Diagram and Cable Run Lengths
The diagram above shows how to wire up the following:
A single magnetic door lock
2 card readers
2 finger print readers,
1 Lock Converter Box
1 IR Exit button (with “Kill Switch” override)
1 Remote Exit Button OPTIONAL (for secretary to manually open the door via a remote
button – AKCP does not sell the button)
1 External Buzzer (OPTIONAL - AKCP does not sell this buzzer – see below for specs)
1 External Lock Override
3 x HD Digital Cameras
Important Note: We DO NOT recommend connecting more than 2 HD Digital Cameras
to the DCU if 2 Finger Print readers are to be used. Up to 4 cameras if no Finger Print
readers are used. Maximum run length for the cameras is 5 meters.
The external door buzzer should follow these specifications:
- Self-drive buzzer
- Voltage 12V DC
