6. USB Port
The unit is equipped with one USB 1.1 port. This can be used, for example, to
connect a USB GPRS/GSM compatible modem, a USB WiFi dongle or USB
Bluetooth dongle.
7. Sensor Ports
These 2 RJ45 connector are for connecting the AKCP Intelligent Sensors to the
DCU.
8. Audio IN / OUT
The IN is used to connect an external microphone, the OUT is for external speakers.
Or to connect the audio cable for the GSM modem when sending voice call alerts.
9. MIC
This is used to connect an external microphone for voice modem applications.
10. Reader
These 2 RJ45 connectors are for connecting the Access Control card readers to the
DCU. Ports IN and OUT are assigned to the Door.
11. DOOR
This RJ-45 connector is for connecting the Lock Converter Box or the Door Lock to
the DCU. See below for details covering the Lock Converter Box.
12. Relay
This jumper is for configuring the Door Lock relay to NC (Normally Closed) or NO
(Normally Open). NOTE: The Relay feature on the lock is not currently available.
This may be added at a later date.
13. FP
These 2 USB connectors are for connecting the Fingerprint readers.
14. Video
These 4 USB connectors are for connecting the High Definition Digital cameras. The
rule is ONLY use 2 cameras if you‟re going to use 2 Finger Print readers and use 4
cameras if not using the 2 Finger Print readers.
15. High Definition Digital Pan Tilt Dome Controller Inputs
This is where you would connect each of the PTDC pan tilt controller cable inputs.
4) Access Control Components

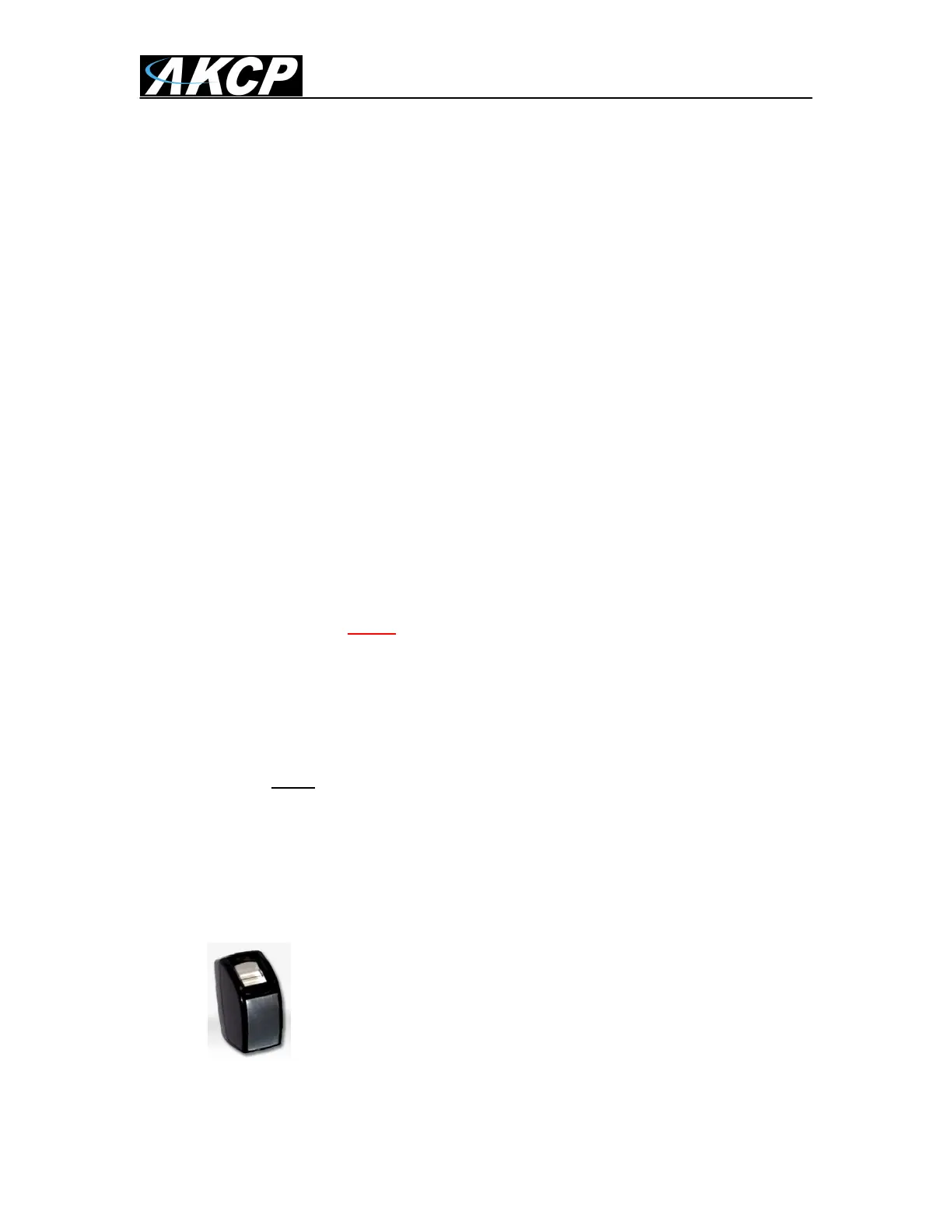

A) Fingerprint Reader = FPR01
Notes: You cannot enroll your fingerprints into the system with the finger
print reader connected to the DCU.
You will need to add your finger prints into the AKCess Pro Server,
Access Control with the finger print reader connected to the machine that
the server software is installed on.
